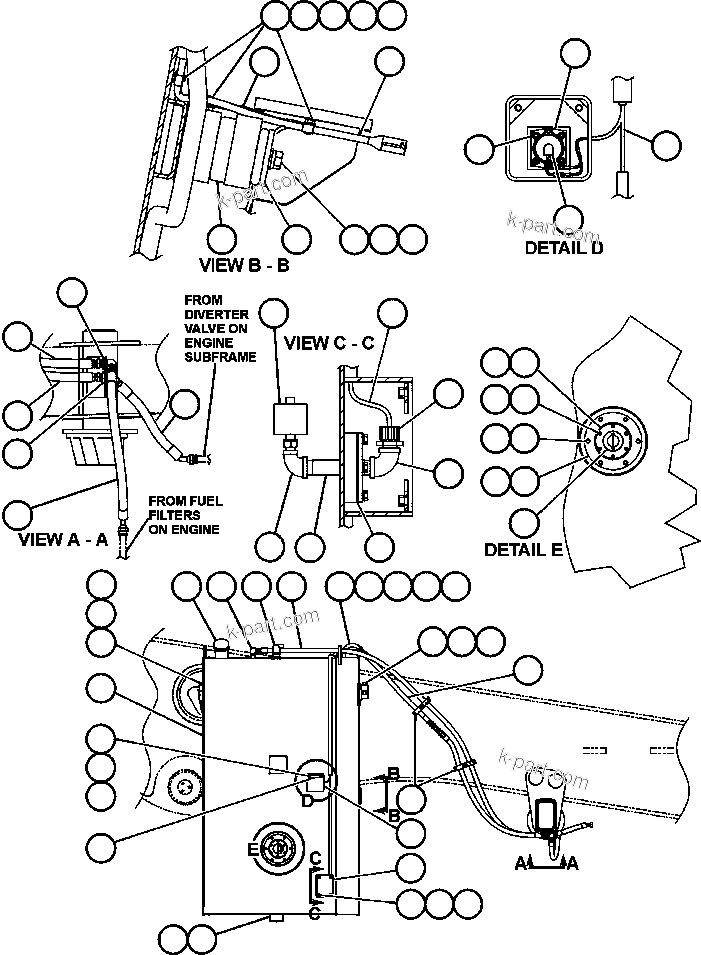

FUEL TANK INSTALLATION & PIPING | AFE50-AG 830E S/N A30641 ANTELOPE COAL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-AG 830E S/N A30641 ANTELOPE COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EH1535	TANK, FUEL	1
?	TY4907	CAP	2
?	C1669	CAPSCREW - 1" - 8NC X 3 1/2"	4
?	C1544	LOCKWASHER - 1"	4
?	D5576	CAP, PIPE	1
?	WB0320	FITTING, ELBOW - 90 DEG	1
?	TA1978	VENT ASSEMBLY	1
?	HA5158	HOSE	1
?	EH2003	TUBE	1
?	TF6990	FITTING, TUBE	1
?	VN9999	CLAMP, TUBE	4
?	C1540	LOCKWASHER - 1/2"	4
?	C1523	NUT - 1/2" - 13NC	4
?	HA5076	HOSE	1
?	WA4710	CLAMP	4
?	WB0446	FITTING, ELBOW - 90 DEG	1
?	WB0433	FITTING, STRAIGHT	1
?	TH7599	HOSE	1
?	HA3677	HOSE	1
?	EH1253	HARNESS	1
?	VL4462	WIRE, GROUND	1
?	TG2562	CLAMP	3
?	C1601	CAPSCREW - 3/8" - 16NC X 3/4"	3
?	TG0545	FLAT WASHER - 3/8"	3
?	C0312	LOCKWASHER - 3/8"	9
?	C1521	NUT - 3/8" - 16NC	3
?	VL7792	DAMPENER, RUBBER	4
?	VW6877	FLAT WASHER (SPECIAL)	4
?	VN9179	CAPSCREW - 3/4" - 10NC X 6"	4
?	WA0362	FLAT WASHER - 3/4"	4
?	C1542	LOCKWASHER - 3/4"	4
?	EH1830	BAR	1
?	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	2
?	C1547	FLAT WASHER - 3/8"	6
?	EG0594	FLAP	1
?	PB9513	GAUGE, FUEL	1
?	VW1231	GASKET	1
?	PC0371	TRANSMITTER, FUEL GAUGE	1
?	EG0606	PLATE	1
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	4
?	VA1730	SWITCH	1
?	TV5194	FITTING, PIPE	1
?	VA1733	MOUNT	1
?	VA1732	GASKET	1
?	SC4970	FITTING, PIPE	1
?	VM5736	GRIP, CORD	1
?	WA3688	BUSHING, PIPE	1
?	HC1851	COCK, DRAIN	1
?	VW6420	CAP, REFUELING	1
?	TA9974	FLANGE ASSEMBLY	1
?	VW4748	GASKET	1
?	VH6864	CAPSCREW - 1/4" - 20NC X 1/2"	6
?	DC3584	LOCKWASHER - 1/4"	6
?	TA1684	PLATE, ADAPTOR	1
?	TA1691	GASKET	1
?	TC8793	CAPSCREW - 3/8" - 16NC X 1"	6
?	TC1231	LOCKWASHER - 3/8"	6
