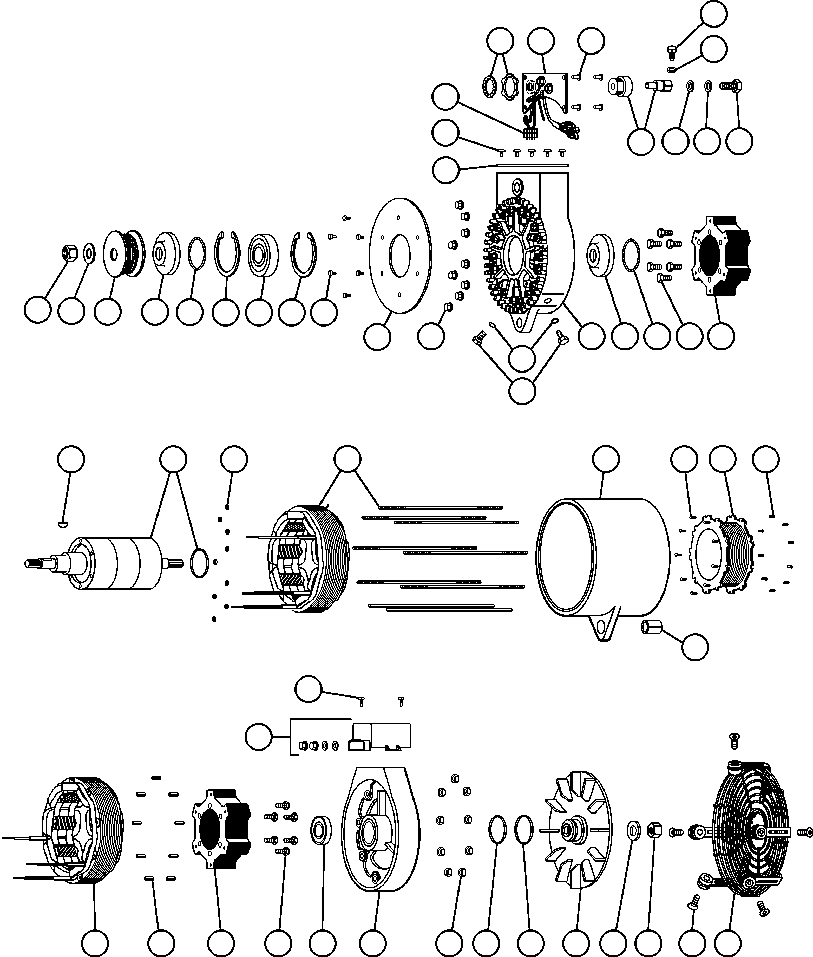

BATTERY CHARGING ALTERNATOR (PC0644) | AFE50-AG 830E S/N A30641 ANTELOPE COAL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
1	BF4962	LOCKNUT (1)	1
2	BF4963	WASHER, BELL (1)	1
3	VE6786	PULLEY (2)	1
4	BF4859	BUSHING, PULLEY	1
5	BF4864	RING, RETAINER	2
6	BF1988	RING, RETAINER (1)	1
7	BF4865	BEARING, FRONT	1
8	BF1989	RING, RETAINER (1)	1
9	BF4964	SCREW - #8 - 32NC X 3/8" (SPECIAL) (1)	11
10	BF1970	PLATE, COVER	1
11	BF2002	LOCKNUT - #8 - 32NC (1)	18
12	BF4863	HOUSING, FRONT	1
13	BF4866	COVER, CONTROL UNIT	1
14	BF4958	OUTPUT ASSEMBLY	1
15	BF4959	COVER ASSEMBLY	1
16	BF4868	HARNESS	1
17	BF4965	CAPSCREW - 5/16" - 18NC X 3/4" (1)	1
18	BF1995	LOCKWASHER - 5/16" (1)	1
19	BF1996	FLAT WASHER (1)	1
20	BF4966	LOCKWASHER (1)	1
21	BF4967	CAPSCREW - M12 X 1.75 X .98 (1)	1
22	BF1999	KEY, WOODRUFF (1)	1
23	BF4874	SHAFT/CORE/ROTOR ASSEMBLY	1
23	BF1974	ROTOR ASSEMBLY	2
23	BF4876	SHAFT/CORE ASSEMBLY	1
23	BF4877	RING, RETAINING	2
24	BF4968	LOCKWASHER (1)	2
25	BF4969	CAPSCREW - M10 X 1.50 X .79 (1)	2
26	BF3719	CAPSCREW - #10 - 32NF X 1/2" (1)	12
27	BF3721	NUT - #8 - 32NC (4)	9
28	BF4878	SHELL/STATOR/FIELD ASSEMBLY	1
28	BF4879	STATOR, FRONT	1
28	BF1980	STUD - #8 - 32NC X 8.67"	9
28		SHELL (5)	1
28	BF1981	BUSHING, TENSION	1
28	BF4880	COIL	1
28	BF4882	STATOR, REAR	1
29	BF3722	SCREW, PAN HEAD - #8 - 32NC X 3/8" (1)	18
30	BF3723	NUT - #8 - 32NC (4)	9
31	BF4887	HOUSING, END	1
32	BF1983	BEARING, REAR	1
33	BF4970	SCREW, LOCK - M5 X .8 X 16 (1)	2
34	BF4890	REGULATOR	1
34	BF4971	NUT - 1/4" - 20NC (1)	1
34	BF4973	FLAT WASHER - 1/4" (1)	1
34	BF4972	NUT - #10 - 24NC (1)	1
35	BF3714	O-RING	1
36	BF1985	FAN	1
37	BF4975	BELL WASHER - (HARDENED) (1)	1
38	BF4976	LOCKNUT - M16 (1)	1
39	BF4862	GUARD, FAN	1
40	BF4977	SCREW, SOCKET HEAD - M5 X .8 X 25 (1)	5
41	BF4860	CARRIER, RING	1
NS\|54		NOTE: NS = NOT SHOWN	-1
NS\|55	BF4881	CONNECTOR - FIELD COIL ASSEMBLY (1)	1
NS\|56	BF4873	CONNECTOR - CONTROL BOX ASSEMBLY (1)	1
NS\|57	BF4818	TOOL, FRONT BEARING & REAR HOUSING (3)	1
NS\|58	BF4819	TOOL, FRONT HOUSING INSTALLATION (3)	1
NS\|59	BF4820	TOOL, BOBBIN REMOVAL (3)	1
NS\|60	BF4821	TOOL, REAR BEARING INSTALLATION (3)	1
NS\|61	BF4822	TOOL, STATOR SERVICE (3)	1
NS\|62	BF4960	NOTE: (1) NOT SERVICED SEPARATELY. INCLUDED IN	-1
NS\|63		BF4960 SMALL PARTS PACKAGE.	-1
NS\|64		(2) NOT INCLUDED IN ASSEMBLY.	-1
NS\|65		(3) TOOLS REQUIRED FOR REBUILD. NOT INCLUDED	-1
NS\|66		IN ASSEMBLY. ORDER SEPARATELY.	-1
NS\|67		(4) ALSO SUPPLIED WITH ITEM #28, BF4878.	-1
NS\|68		(5) NOT SERVICED SEPARATELY.	-1
