AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PB9461	RADIATOR & SHROUD ASSEMBLY	1
?	E3909	CAPSCREW - 1" - 8NC X 3 1/2"	2
?	VH8186	LOCKNUT - 1"	6
?	WA4820	CLEVIS	2
?	C5785	NUT, JAM - 1"	2
?	EF3378	ROD, THREADED	2
?	TG6760	MOUNT, RUBBER	4
?	TK6566	WASHER	4
?	C1532	NUT	6
?	TK6567	WASHER	4
?	PB6831	END, ROD	2
?	MM0475	LOCKWASHER - M20	8
?	MM0005	CAPSCREW - M20 X 2.50 X 30	8
?	ED6951	SUPPORT, RADIATOR	2
?	EF6659	BRACKET	1
?	TR4436	FLAT WASHER - 3/8"	8
?	TC1233	NUT - 3/8"	4
?	EF6655	U-BOLT	2
?	EF6662	PLATE, BENT	1
?	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	4
?	EF6656	BRACKET	1
?	EF8190	TUBE	1
?	C1531	NUT	2
?	ED6925	ROD, RADIATOR SUPPORT	2
?	TA1432	CLAMP	3
?	TC6058	CLAMP	2
?	TF6925	CLAMP	6

Komatsu AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI parts catalog PDF

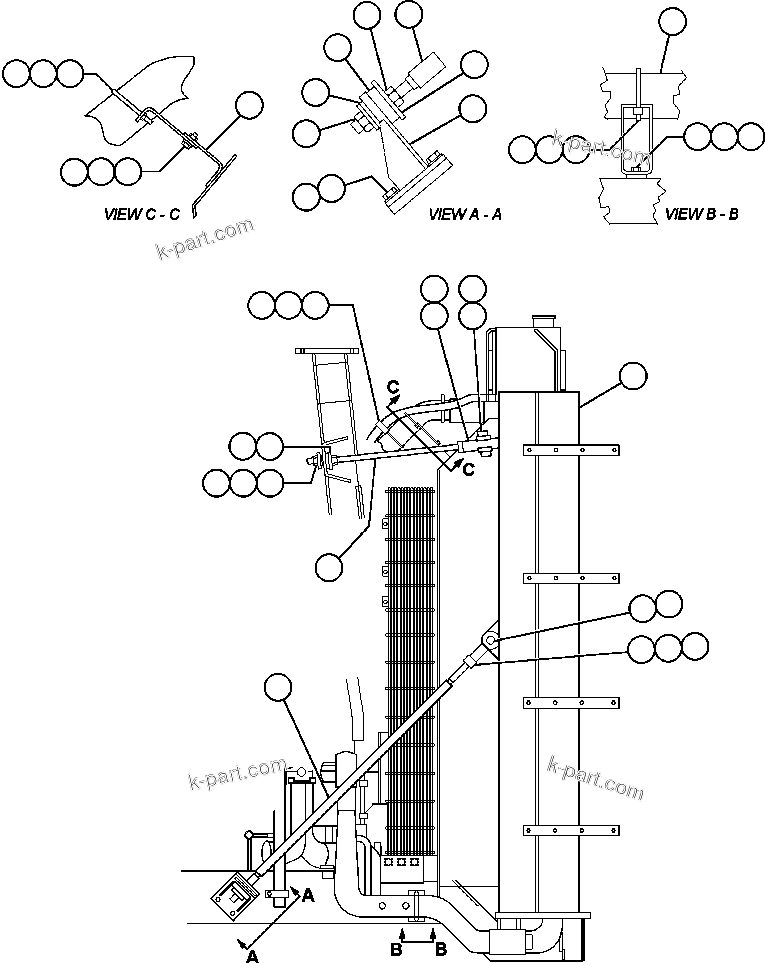

RADIATOR SUPPORT & TUBE MOUNTING (60051) in AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI. Diagram image and parts list.
