AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI

25 23 24 21 32 33 34 19 17 13 14 26 27 29 15 28 22 39 37 38 31 35 18 16 1 20 5 6 44 42 36 30 40 41 45 43 12 37 39 49 47 11 16 48 10 46 52 55 51 9 50 8 1 2 3 4 5 6 7 54 51 50 53

#	Part Number	Partname	Quantity
1	EF9595	FLAT WASHER - 1 1/4"	36
2	GE0068	CAPSCREW - 1 1/4" - 12NF X 5 1/2" (12 POINT HEAD)	35
3	GE0089	FLAT WASHER - 1 1/4"	8
4	GE0082	CAPSCREW - 1 1/4" - 12NF X 3 1/2" (12 POINT HEAD)	35
5	GE0056	BEARING, OUTER	1
6	GE0109	BUSHING	16
7	GE0110	CAPSCREW - 1" - 8NC X 4 1/2"	16
8	GE0086	PLUG	1
9	GE0087	SHAFT, DRIVE	1
10	EF6174	CARRIER, SEAL	1
11	WA1628	O-RING	1
12	PB6038	SEAL ASSEMBLY	1
13	WA5663	O-RING	1
14	GE0055	BEARING, INTER	1
15	WB1030	CAPSCREW - 1 1/4" - 12NF X 9"	28
16	VE5185	FLAT WASHER - 1/2"	36
17	VE4542	CAPSCREW - 1/2" - 13NC X 1"	24
18	EC9962	STUD - 6 1/4"	50
19	GE0088	NEVER - SEEZ	-1
20	GE0059	COVER	2
21	GE0078	SHIMS, SET	1
21	GE0079	SHIM - 0.005	5
21	GE0080	SHIM - 0.007	4
21	GE0081	SHIM - 0.229	4
22	GE0090	HUB, WHEEL	1
23	VE5187	FLAT WASHER - 3/4"	16
24	GE0107	CAPSCREW - 3/4" - 10NC X 2 1/4"	16
25	GE0108	WIRE, LOCK	8
26	GE0069	CAPSCREW - 1/2" - 13NC - 1 3/4" (SOCKET HEAD)	17
27	GE0106	PLATE, CLAMP	8
28	GE0105	GEAR, RING - HIGH	1
29	GE0099	GEAR, PLANETARY PINION - HIGH	3
30	GE0100	BEARING	6
31	GE0103	CARRIER, HIGH	1
32	VE5187	FLAT WASHER - 3/4"	16
33	GE0107	CAPSCREW - 3/4" - 10NC X 2 1/4"	16
34	GE0108	WIRE, LOCK	8
35	GE0106	PLATE, CLAMP	8
36	GE0060	TUBE, TORQUE	1
37	GE0095	WASHER, SELF-LOCKING - 1"	8
38	GE0094	CAPSCREW - 1" - 8NC X 13" (12 POINT HEAD)	8
39	GE0096	THREAD LOCK	-1
40	GE0092	GEAR, PLANETARY PINION - LOW	4
41	GE0093	BEARING	8
42	GE0104	GEAR, RING - LOW	1
43	GE0091	PIN, PINION GEAR	4
44	GE0067	PIN	1
45	GE0097	CARRIER, LOW	1
46	GE0072	PINION, SUN - LOW	1
47	GE0073	SHIM SET	1
47	GE0074	SHIM - 0.015	12
47	GE0075	SHIM - 0.030	6
48	VE4999	CAPSCREW - 1/2" - 13NC X 2"	12
49	GE0102	CAPSCREW - 1" - 8NC X 7 1/2" (12 POINT HEAD)	6
50	GE0077	FLAT WASHER (SPECIAL)	2
51	GE0076	WASHER, THRUST	4
52	GE0057	COVER	1
53	GE0101	RETAINER	1
54	GE0058	PLUG, SUN PINION	2
55	GE0098	PIN, PINION GEAR	3
NS\|61		NOTE: NS = NOT SHOWN	-1
NS\|62	H2980	BALL, LOCK - PINION PIN LOCK	9

Komatsu AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI parts catalog PDF

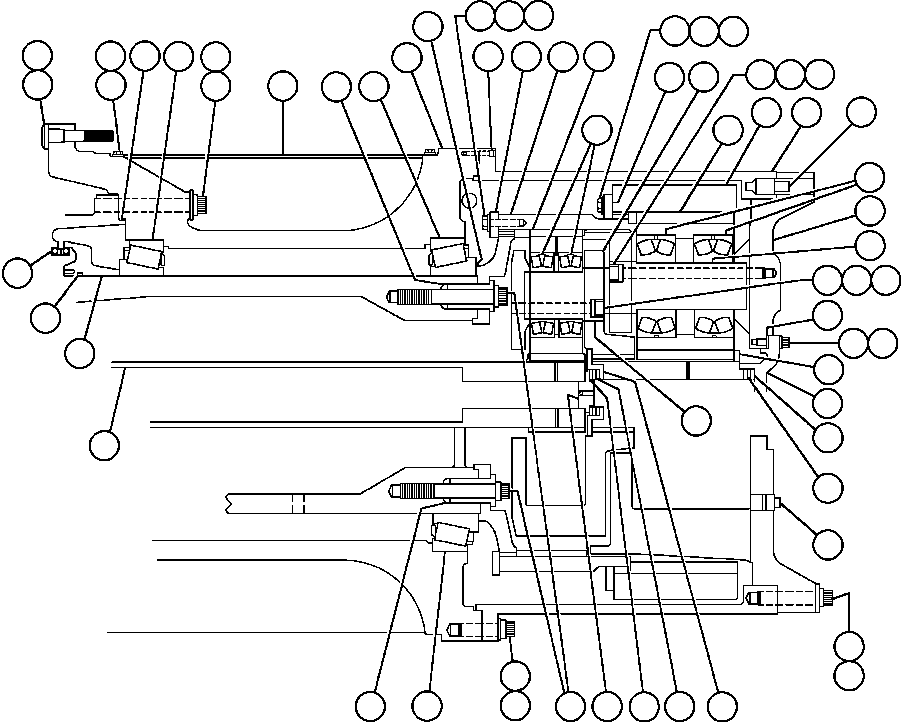

WHEEL MOTOR ASSEMBLY - 1 (PB9900) (64009) in AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI. Diagram image and parts list.
