AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EG4849	BRACKET, MOUNTING	12
?	EG9115	PLATE, MOUNTING	1
?	EG9116	PLATE, MOUNTING	1
?	EG9117	PLATE, MOUNTING	1
?	EG9118	PLATE, MOUNTING	1
?	EG6726	FLAP, MUD	1
?	EG9121	FLAP, MUD	1
?	EG6728	FLAP, MUD	1
?	TY8848	BAR, RETAINER	4
?	EF4807	FLAP, MUD	4
?	EF4805	BAR, FLAT	4
?	EF4808	FLAP, MUD	2
?	EF4806	BAR, FLAT	2
?	MM0606	CAPSCREW - M10 X 1.50 X 30	88
?	MM0471	LOCKWASHER - M10	108
?	MM0461	FLAT WASHER - M10	128
?	EF4831	BRACKET, ANGLE	1
?	EF4827	BRACKET, ANGLE	1
?	EF4832	BAR, FLAT	1
?	EF4828	BAR, FLAT	1
?	EF4833	FLAP, MUD	1
?	EF4829	FLAP, MUD	1
?	MM0607	CAPSCREW - M10 X 1.50 X 35	64
?	EF3392	BAR, FLAT	6
?	EF3393	BRACKET	2
?	EG9141	STRIP, BACKUP	2
?	EG9123	FLAP, MUD	2
?	EF3395	FLAP, MUD	2
?	EF3396	FLAP, MUD	2
?	EG9142	STRIP, BACKUP	1
?	EG9143	STRIP, BACKUP	1
?	EG9122	FLAP, MUD	1

Komatsu AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI parts catalog PDF

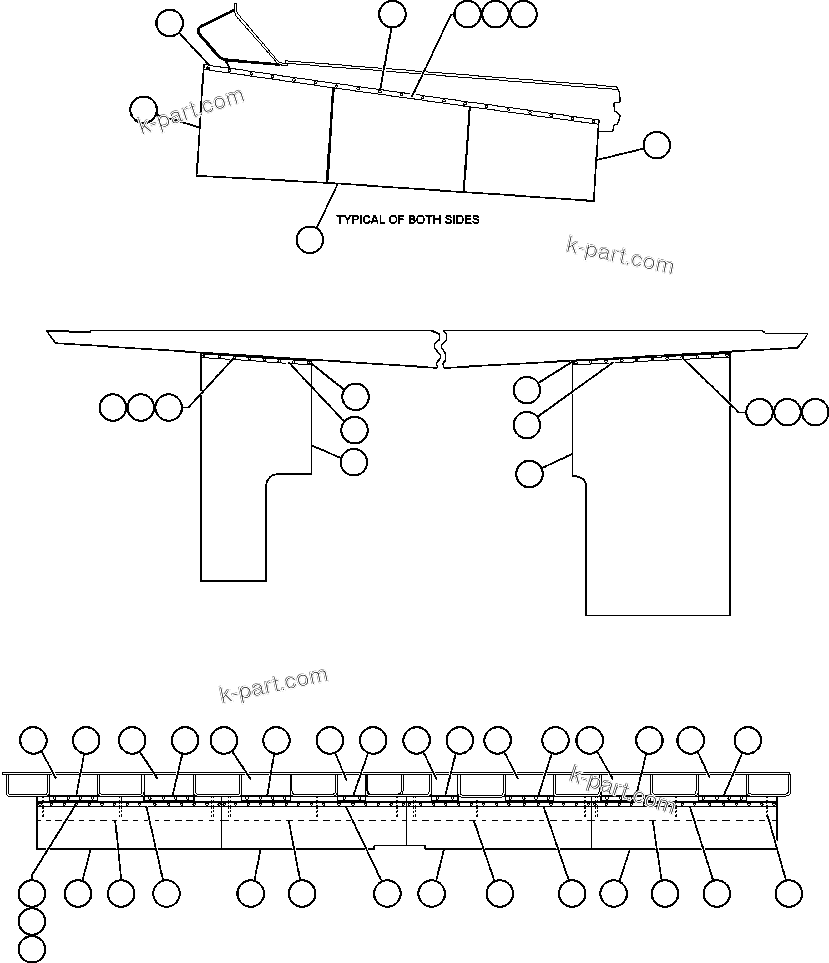

BODY TO DECK & BODY MUD FLAP INSTL (60180) in AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI. Diagram image and parts list.
