AFE48-H/J 930E S/N 32685 & 32704 PHELPS-DODGE MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE3543	COVER, SPOOL	1
?	VE3535	BALL (2)(3)	1
?	VE3536	POPPET (2)	1
?	VE3527	O-RING (2)(3)	1
?	VE3548	SEAT, SPRING	4
?	VE3541	SPRING	2
?	VE3545	PLUG	3
?	VE3539	POPPET (2)	1
?	VE3546	SPOOL END	4
?	VE3547	SPOOL (1)	2
?	VE3542	SPRING	2
?	VE5472	POPPET (2)	1
?	VE7619	HOUSING, SPOOL (1)	1
?	VE3533	O-RING (2)(3)	4
?	VE3603	POPPET (2)	1
?	VJ2946	O-RING (2)(3)	2
?	VJ1983	PLUG	1
?	VE3549	O-RING (2)(3)	1
?	VE3544	COVER, SPOOL	1
?		(NOT USED THIS APPLICATION)	-1
?		(NOT USED THIS APPLICATION)	-1
?	VE3538	POPPET (2)	1
?	VE3540	POPPET (2)	1
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1
?	BF3047	(2) INCLUDED IN BF3047 MAJOR SERVICE KIT.	-1
?	BF3048	(3) INCLUDED IN BF3048 MINOR SERVICE KIT.	-1

Komatsu AFE48-H/J 930E S/N 32685 & 32704 PHELPS-DODGE MORENCI parts catalog PDF

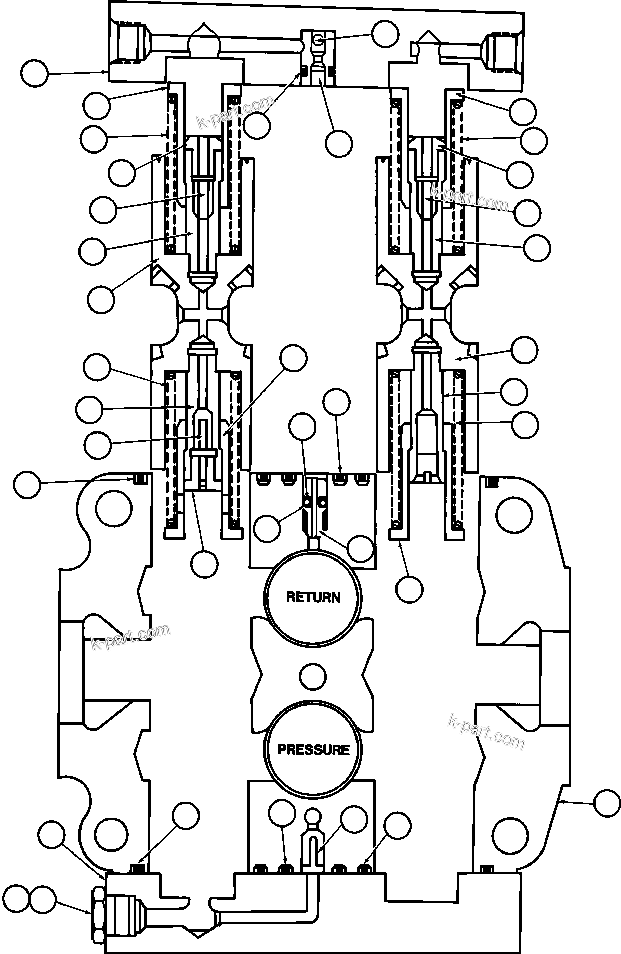

SPOOL INLET SECTION (VE3810) (40004) in AFE48-H/J 930E S/N 32685 & 32704 PHELPS-DODGE MORENCI. Diagram image and parts list.
