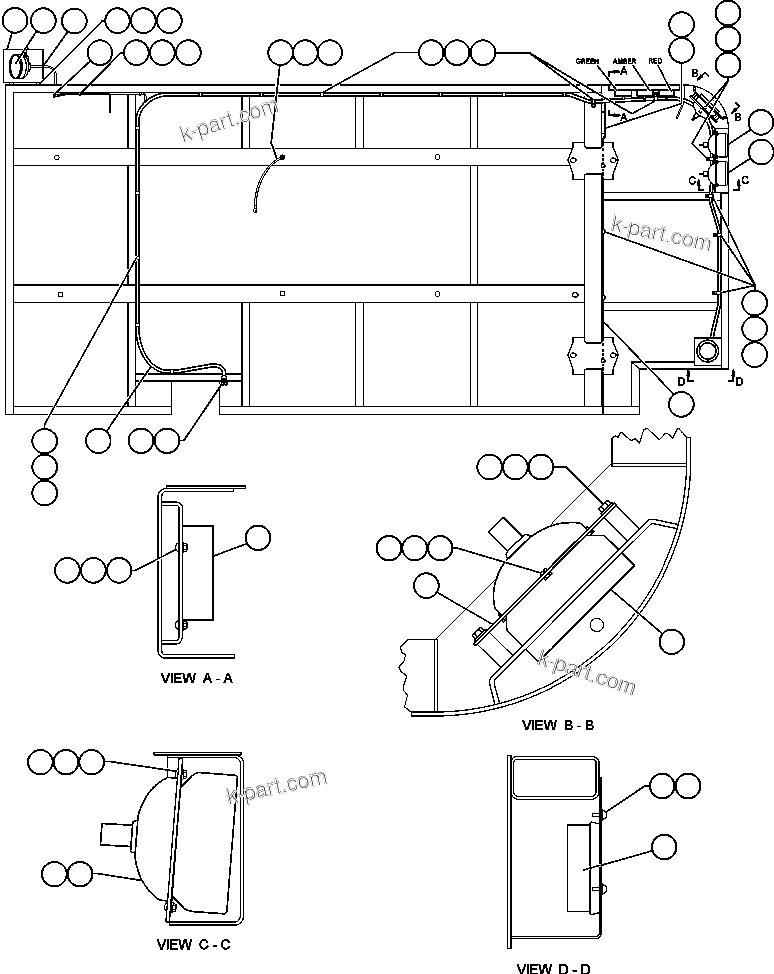

RIGHT DECK ELECTRICAL GROUP | AFE48-F 930E S/N 32674 PIPELINE

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-F 930E S/N 32674 PIPELINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	TY0616	BRACKET, BACK-UP LIGHT	1
?	AK3320	ASSM, LIGHT (SEE FIG 60111)	1	60111
?	TR4436	FLAT WASHER - 3/8"	3
?	TC1231	LOCKWASHER - 3/8"	3
?	TC1234	CAPSCREW, 3/8" - 16NC X 3/4"	3
?	MM0178	NUT, M10	24
?	TG2562	CLAMP	9
?	720462	CLAMP	15
?	TD2186	GROMMET	1
?	VY2784	GROMMET	1
?	EF9208	HARNESS, DECK LIGHT - RIGHT	1
?	SM2120	PLATE, NUT CONNECTOR SHELL #24	1
?	VN7138	MACHINE SCREW, #6	4
?	MM0461	FLAT WASHER - M10	26
?	MM0603	CAPSCREW, M10 X 1.50 X 16	4
?	ED7274	WIRE, R.H. ENGINE GROUND BLOCK	1
?	MM0378	LOCKWASHER, 4MM (EXT. TOOTH)	12
?	MM0343	MACHINE SCREW, M4 X .7 X 16	12
?	MM0372	NUT, M4	9
?	PB8400	LIGHT ASSM, GREEN	1
?	PB8402	LIGHT ASSM, AMBER	1
?	PB8401	LIGHT ASSM, RED	1
?	VE8588	LENS, GREEN	1
?	VE8586	LENS, AMBER	1
?	VE8587	LENS, RED	1
?	SR6747	BULB	1
?	VE8589	GASKET	1
?	VE8590	RING, RETAINER	1
?	VE8591	GASKET	1
?	EG1107	PLATE, MOUNTING	1
?	MM0460	FLAT WASHER - M8	4
?	MM0470	LOCKWASHER - M8	4
?	MM0593	CAPSCREW, M8 X 1.25 X 20	4
?	AK8456	ASSM, LIGHT, TURN/SIGNAL (SEE FIG 40877)	1	40877
?	MM0379	LOCKWASHER, 5MM (EXT. TOOTH)	11
?	MM0349	MACHINE SCREW, M5 X .8 X 12	11
?	MM0373	NUT, M5	11
?	AK3332	ASSM, LIGHT (HIGH BEAM) (SEE FIG 40877)	1	40877
?	AK3333	ASSM, LIGHT (LOW BEAM) (SEE FIG 40877)	1	40877
?	PB8403	ASSM, LIGHT	1
?	VE8105	LENS, CLEAR	1
?	SR6747	BULB	1
?	VE8589	GASKET	1
?	VE8590	RING, RETAINER	1
?	VE8591	GASKET	1
?	VN5153	WIRE, GROUND	1
