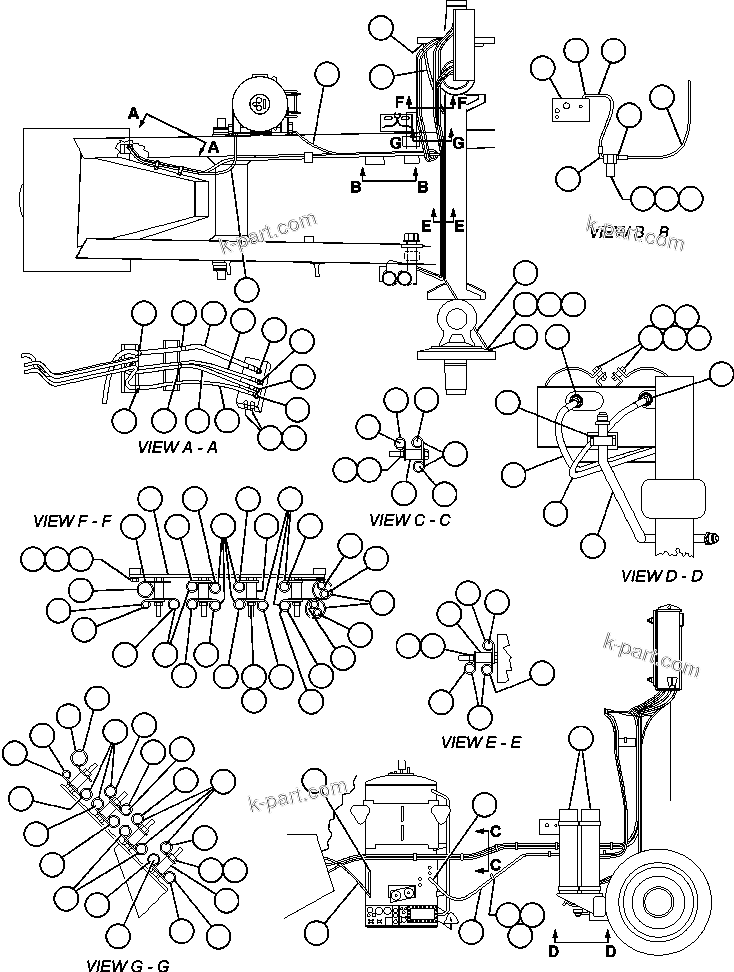

BRAKE PIPING - 5 | AFE48-F 930E S/N 32674 PIPELINE

AFE48-F 930E S/N 32674 PIPELINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	WB0470	FITTING, STRAIGHT	1
?	EC3328	ACCUMULATOR ASSM (SEE INDEX)	2	60050
?	WB0297	FITTING, 45 DEG.	1
?	HA7418	HOSE	1
?	MM0177	NUT - M8 X 1.25	26
?	MM0460	FLAT WASHER - M8	26
?	VN9913	CLAMP - 1 1/16"	8
?	HA7419	HOSE	1
?	WB0537	FITTING, O-RING - 45 DEG.	4
?	HA7080	HOSE	1
?	HA7420	HOSE	1
?	WB0542	FITTING, O-RING - 45 DEG.	1
?	WB0535	FITTING, O-RING - 45 DEG.	1
?	PB6528	COUPLING, DIAGNOSTIC	2
?	PB6041	CAP, DUST	2
?	HA7421	HOSE	1
?	HA7422	HOSE	1
?	VN9907	CLAMP - 5/8"	14
?	TF6925	CLAMP - 3/4"	40
?	PB6923	VALVE, BLEED-DOWN (SEE INDEX)	1	40002
?	WB0508	FITTING, O-RING - 90 DEG.	1
?	HA6199	HOSE	1
?	WB0586	FITTING, O-RING - STRAIGHT	1
?	HA7073	HOSE	1
?	WB0510	FITTING, O-RING - 90 DEG.	1
?	MM0589	CAPSCREW - M6 X 1.00 X 60	2
?	MM0469	LOCKWASHER - M6	2
?	PB9030	FILTER, HI-PRESSURE (SEE INDEX)	1	60070
?	TY8375	SPACER	23
?	EG0559	TUBE	1
?	HA7069	HOSE	1
?	HA7068	HOSE	1
?	WB1036	O-RING	2
?	MM0086	CAPSCREW - M16 X 2.00 X 60	8
?	MM0706	FLAT WASHER - M16 (HARDENED)	8
?	MM0474	LOCKWASHER - M16	8
?	MM0181	NUT - M16 X 2.00	8
?	EC3036	CLAMP HALF	4
?	WA4710	CLAMP, HYDRA-ZORB - 1 1/2"	1
?	HA6763	HOSE	1
?	HA7424	HOSE	1
?	HA6343	HOSE	2
?	TF6924	CLAMP - 1 3/4"	4
?	HA7075	HOSE	2
?	HA7288	HOSE	1
?	HA7423	HOSE	1
?	TG2960	CLAMP - 9/16"	3
?	MM0016	CAPSCREW - M8 X 1.25 X 16	4
?	MM0470	LOCKWASHER - M8	4
?	MM0703	FLAT WASHER - M8 (HARDENED)	4
?	ED6164	BRACKET	2
?	HA6258	HOSE	1
?	WB1057	REDUCER, O-RING BOSS	2
