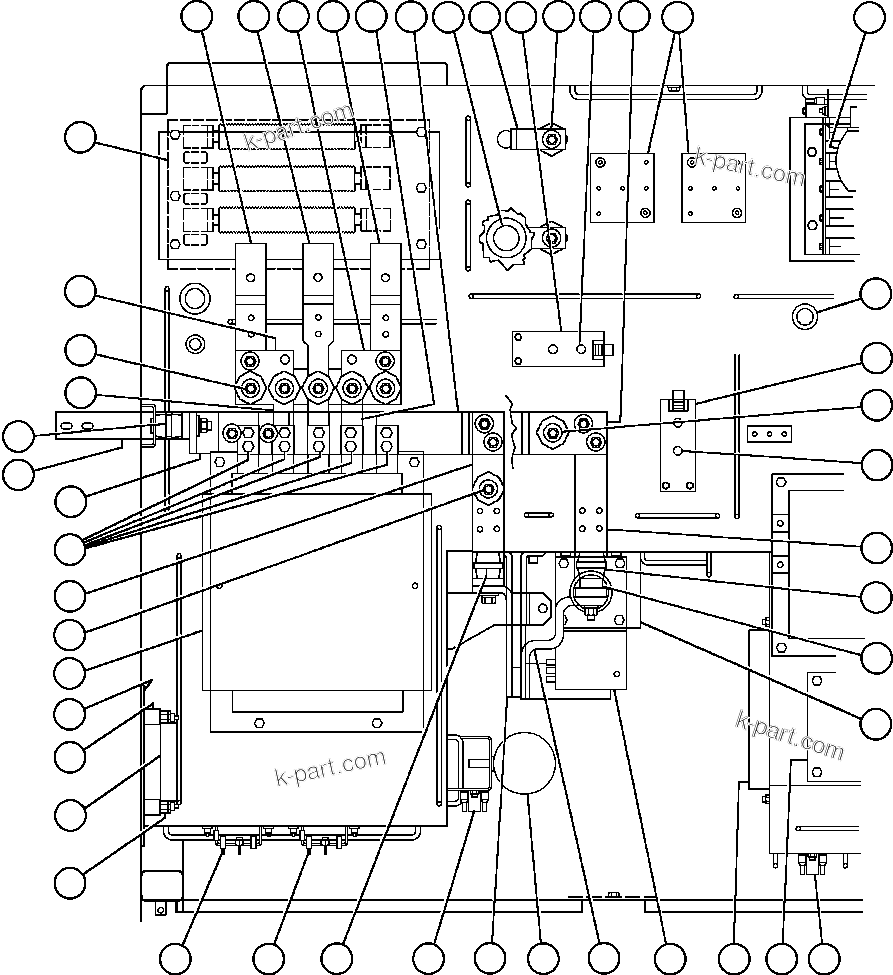

CONTROL CABINET (TOP LEFT VIEW) | AFE48-F 930E S/N 32674 PIPELINE

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-F 930E S/N 32674 PIPELINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	BF1442	BOARD, TERMINAL	1
?	VS8193	BOARD, TERMINAL	1
?	GE0160	SENSOR, POWER SUPPLY (SPS)	1
?	GE0175	LAMP, SERVICE	2
?	GE0196	BAR, BUS	1
?	GE0210	SENSOR, MODULE	2
?	GE0216	LEM BRACKET ASSEMBLY	1
?	GE0234	WASHER	1
?	GE0235	INSULATOR ASSEMBLY	1
?	GE0236	WASHER	1
?	GE0189	BUS BAR ASSEMBLY - INSULATED	1
?	PB3606	SPACER	8
?	GE0182	PANEL (CCLR)	2
?	GE0239	GROMMET, RUBBER	1
?	GE0179	PANEL RESISTOR - (GFIP & AFVLT)	2
?	GE0199	INSULATOR ASSEMBLY	18
?	GE0200	INSULATOR/STUD ASSEMBLY	4
?	GE0225	BAR, BUS	2
?	GE0238	GROMMET, RUBBER	3
?	GE0192	BAR, BUS - INSULATED	1
?	GE0187	BAR, BUS - INSULATED	1
?	GE0184	BAR, BUS	2
?	GE0186	BUS BAR ASSEMBLY	2
?	GE0183	BAR, BUS	2
?	GE0185	BUS BAR ASSEMBLY	1
?	GE0148	FILTER PANEL ASSEMBLY	1
?	VE4379	RESISTOR ASSEMBLY	3
?	VE0066	RESISTOR, 200 WATT, 25 OHM	6
?	VE3846	CONDENSER	3
?	GE0201	INSULATOR ASSEMBLY	5
?	GE0191	BAR, BUS - INSULATED	1
?	GE0202	INSULATOR ASSEMBLY	1
?	GE0190	BUS BAR ASSEMBLY - INSULATED	1
?	PB6489	PANEL, RECTIFIER (SEE INDEX)	1	64036
?	GE0223	CLAMP, BAR	5
?	GE0188	BUS BAR ASSEMBLY - INSULATED	1
?	VS8432	BRACKET	4
?	PB4261	SPACER	6
?	GE0230	PLATE, FUSE	1
?	GE0229	INSULATOR ASSEMBLY	4
?	GE0228	SPACER	4
?	GE0227	FUSE, HIGH VOLTAGE	2
?	PB3348	INSULATOR	1
?	GE0195	BUS BAR ASSEMBLY	1
?	GE0193	BOARD, TERMINAL	1
?	VE6118	PANEL, VOLTAGE MEASURING MODULE (SEE INDEX)	2	64043
