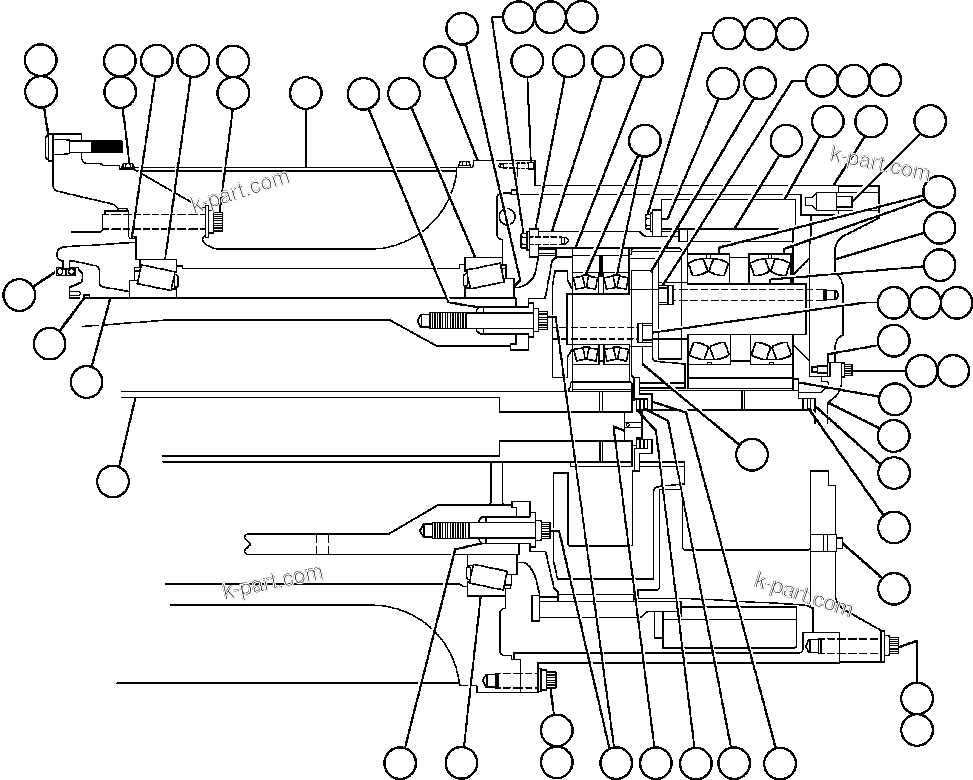

WHEEL MOTOR ASSEMBLY - 1 (PB9900) | AFE48-F 930E S/N 32674 PIPELINE

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-F 930E S/N 32674 PIPELINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EF9595	FLATWASHER - 1 1/4"	36
?	GE0068	CAPSCREW - 1 1/4" - 12NF X 5 1/2" (12 POINT HEAD)	35
?	GE0089	FLATWASHER - 1 1/4"	8
?	GE0082	CAPSCREW - 1 1/4" - 12NF X 3 1/2" (12 POINT HEAD)	35
?	GE0056	BEARING, OUTER	1
?	GE0109	BUSHING	16
?	GE0110	CAPSCREW - 1" - 8NC X 4 1/2"	16
?	GE0086	PLUG	1
?	GE0087	SHAFT, DRIVE	1
?	EF6174	CARRIER, SEAL	1
?	WA1628	O-RING	1
?	PB6038	SEAL ASSEMBLY	1
?	WA5663	O-RING	1
?	GE0055	BEARING, INTER	1
?	WB1030	CAPSCREW - 1 1/4" - 12NF X 9"	28
?	VE5185	FLATWASHER - 1/2"	36
?	VE4542	CAPSCREW - 1/2" - 13NC X 1"	24
?	EC9962	STUD - 6 1/4"	50
?	GE0088	NEVER - SEEZ	-1
?	GE0059	COVER	2
?	GE0078	SHIMS, SET	1
?	GE0079	SHIM - 0.005	5
?	GE0080	SHIM - 0.007	4
?	GE0081	SHIM - 0.229	4
?	GE0090	HUB, WHEEL	1
?	VE5187	FLATWASHER - 3/4"	16
?	GE0107	CAPSCREW - 3/4" - 10NC X 2 1/4"	16
?	GE0108	WIRE, LOCK	8
?	GE0069	CAPSCREW - 1/2" - 13NC - 1 3/4" (SOCKET HEAD)	17
?	GE0106	PLATE, CLAMP	8
?	GE0105	GEAR, RING - HIGH	1
?	GE0099	GEAR, PLANETARY PINION - HIGH	3
?	GE0100	BEARING	6
?	GE0103	CARRIER, HIGH	1
?	VE5187	FLATWASHER - 3/4"	16
?	GE0107	CAPSCREW - 3/4" - 10NC X 2 1/4"	16
?	GE0108	WIRE, LOCK	8
?	GE0106	PLATE, CLAMP	8
?	GE0060	TUBE, TORQUE	1
?	GE0095	WASHER, SELF-LOCKING - 1"	8
?	GE0094	CAPSCREW - 1" - 8NC X 13" (12 POINT HEAD)	8
?	GE0096	THREAD LOCK	-1
?	GE0092	GEAR, PLANETARY PINION - LOW	4
?	GE0093	BEARING	8
?	GE0104	GEAR, RING - LOW	1
?	GE0091	PIN, PINION GEAR	4
?	GE0067	PIN	1
?	GE0097	CARRIER, LOW	1
?	GE0072	PINION, SUN - LOW	1
?	GE0073	SHIM SET	1
?	GE0074	SHIM - 0.015	12
?	GE0075	SHIM - 0.030	6
?	VE4999	CAPSCREW - 1/2" - 13NC X 2"	12
?	GE0102	CAPSCREW - 1" - 8NC X 7 1/2" (12 POINT HEAD)	6
?	GE0077	FLATWASHER (SPECIAL)	2
?	GE0076	WASHER, THRUST	4
?	GE0057	COVER	1
?	GE0101	RETAINER	1
?	GE0058	PLUG, SUN PINION	2
?	GE0098	PIN, PINION GEAR	3
?		NOTE: NS = NOT SHOWN	-1
?	H2980	BALL, LOCK - PINION PIN LOCK	9
