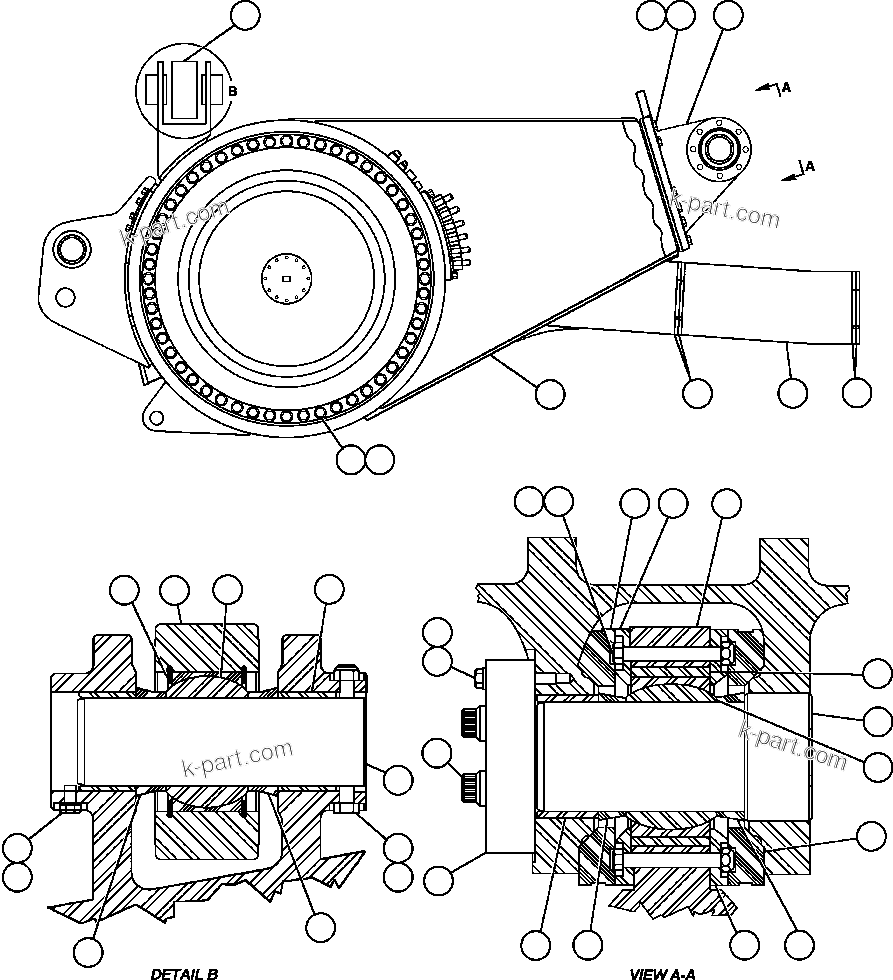

DRIVE AXLE & MOUNTING | AFE48-F 930E S/N 32674 PIPELINE

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-F 930E S/N 32674 PIPELINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EG5049	HOUSING, AXLE	1
?	WA0366	FLAT WASHER - 1 1/4" (HARDENED)	24
?	VN9106	CAPSCREW - 1 1/4" - 7NC X 3" - G8	24
?	ED6114	EYE, PIVOT (1)	1
?	ED8778	BAR, ANTI-SWAY (2)	1
?	TY1344	RETAINER, BEARING	2
?	TY7704	RING, COVER	2
?	WA2957	CLAMP	2
?	EG3028	SPACER (3)	2
?	EG3033	PIN, PIVOT (3)	1
?	EG3026	CARRIER, BEARING (1)	1
?	PB6612	BEARING (1)(3)	1
?	ED4952	SLEEVE (3)	1
?	VN9179	CAPSCREW - 3/4" - 10NC X 6" - G8	8
?	VL2993	NUT, LOCK - 3/4" - G8	8
?	EG3027	PLATE, LOCKING (3)	1
?	ED8736	HOSE	1
?	WB1059	CAPSCREW, 12 POINT (3)	4
?	C1541	LOCKWASHER - 5/8" (3)	3
?	VN9139	CAPSCREW - 5/8" - 11NC X 4" (3)	3
?	PB0027	BUSHING, BALL (2)(4)	2
?	VN9351	RING, RETAINER (2)(4)	4
?	ED6521	PIN, BEARING (4)	2
?	MM0173	CAPSCREW - M20 X 2.50 X 2.00 (4)	2
?	MM0697	NUT - M20 (4)	2
?	TY2734	SPACER (4)	4
?	MM0474	LOCKWASHER - M16	2
?	MM0012	CAPSCREW - M16 X 2.00 X 25	2
?	EF3368	FLAT WASHER (HARDENED)	70
?	VN3275	CAPSCREW - 1 1/4" - 7NC X 5 1/2" - G8	70
?	TX8110	SLEEVE - PIN ANTI-SWAY BAR (4)	2
?	WA4830	CLAMP, T-BOLT	4
?		NOTE: NS = (NOT SHOWN)	-1
?	VL4462	WIRE, GROUND	1
?	VH9969	WELD STUD, 3/8" - 16NC X 3/4"	2
?	C0312	LOCKWASHER - 3/8"	2
?	C1521	NUT - 3/8"	2
?		NOTE: (1) INCLUDED IN EG3029 PIVOT EYE ASSEMBLY	-1
?		(2) INCLUDED IN ED8779 ANTI-SWAY BAR W/BEARINGS	-1
?		ASSM	-1
?	AK3850	(3) INCLUDED IN AK3850 DRIVE PIN KIT.	-1
?	AK3852	(4) INCLUDED IN AK3852 PANHARD ROD PIN KIT.	-1
