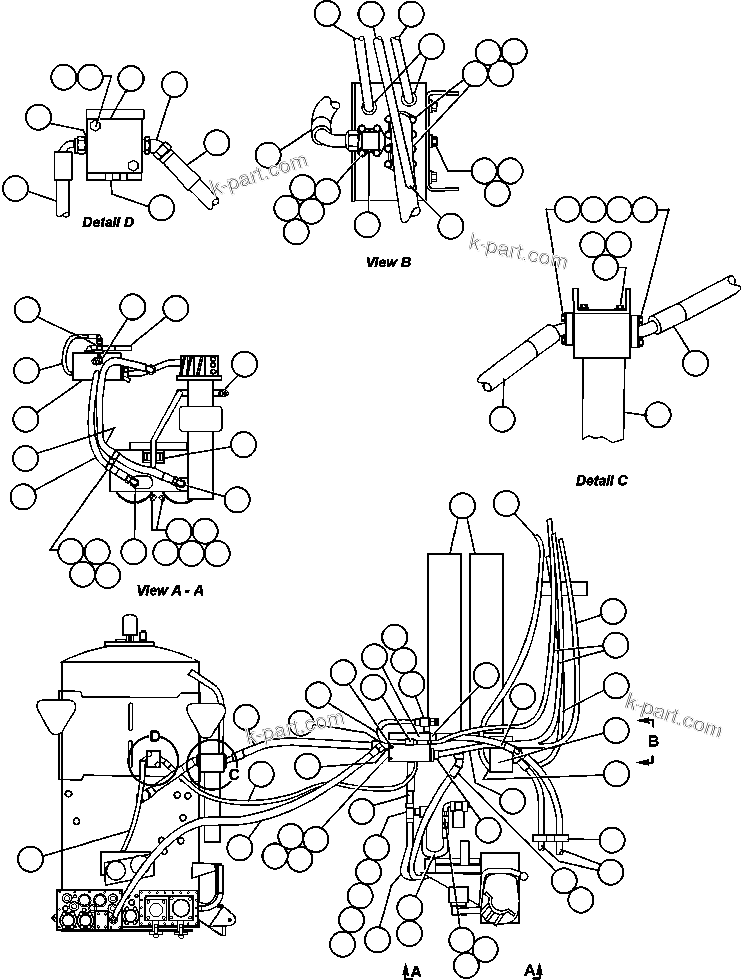

STEERING SYSTEM PIPING - 5 | AFE48-F 930E S/N 32674 PIPELINE

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-F 930E S/N 32674 PIPELINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	HA7071	HOSE	1
?	HA7072	HOSE	1
?	HA6227	HOSE	1
?	WB0549	FITTING, O-RING - 45 DEG.	1
?	VM0314	PLUG, O-RING	1
?	WB0510	FITTING, O-RING - 90 DEG.	1
?	PB6923	VALVE, BLEED-DOWN (SEE INDEX)	1	40002
?	WB0600	FITTING, O-RING - STRAIGHT	2
?	HA6226	HOSE	1
?	HA7423	HOSE	1
?	HA7424	HOSE	1
?	HA6343	HOSE	2
?	HA6763	HOSE	1
?	HA7270	HOSE	2
?	PB9992	FLOW AMPLIFIER (SEE INDEX)	1	35461
?	WB0574	FITTING, O-RING - STRAIGHT	1
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	8
?	C5775	LOCKWASHER - 7/16"	8
?	TF3237	CLAMP, SPLIT FLANGE	4
?	VG9096	O-RING	2
?	EG3007	TUBE	1
?	WB0602	FITTING, O-RING - STRAIGHT	1
?	WB0601	FITTING, O-RING - STRAIGHT	2
?	HA7449	HOSE	1
?	HA6242	HOSE	1
?	HA3278	HOSE	1
?	HA6619	HOSE	1
?	WB0378	FITTING, 90 DEG.	1
?	SR7215	CAPSCREW - 1/2" - 13NC X 7 1/2"	2
?	WA0360	FLAT WASHER - 1/2" HARDENED	3
?	C1540	LOCKWASHER - 1/2"	2
?	C1523	NUT - 1/2" - 13NC	3
?	TC6058	CLAMP - 1 1/2"	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	1
?	WB0522	FITTING, O-RING - 90 DEG.	1
?	WB0599	FITTING, O-RING - STRAIGHT	1
?	MM0086	CAPSCREW - M16 X 2.00 X 60	8
?	MM0706	FLAT WASHER - M16 HARDENED	8
?	MM0474	LOCKWASHER - M16	8
?	MM0181	NUT - M16	8
?	EC3036	CLAMP HALF	4
?	WA4710	CLAMP, HYDRA-ZORB - 1 1/2"	1
?	EG0564	TUBE	1
?	WB0393	FITTING, TEE	1
?	WB0586	FITTING, O-RING - STRAIGHT	1
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	16
?	C0312	LOCKWASHER - 3/8"	16
?	WA0720	FLAT WASHER - 3/8" HARDENED	4
?	PB7056	HIGH PRESSURE FILTER ASSM	1
?	VE4205	HEAD ASSM	1
?	VE1750	KIT, SEAL	1
?	VE4206	INDICATOR, 24V DC	1
?	VE3431	KIT, SEAL	1
?	VE4207	HOUSING	1
?	VE3434	PLUG	1
?	VE3435	O-RING	1
?	VE0731	ELEMENT - 7 MICRON	1
?	WB0581	FITTING, O-RING - STRAIGHT	1
?	MM0601	CAPSCREW - M8 X 1.25 X 70	2
?	MM0470	LOCKWASHER - M8	2
?	EG1119	BLOCK, MANIFOLD	1
?	WB0537	FITTING, O-RING - 45 DEG.	1
?	VM0317	PLUG, O-RING	1
?	WB0584	FITTING, O-RING - STRAIGHT	3
?	TF8077	CLAMP, SPLIT FLANGE	6
?	VG9097	O-RING	3
?	C1608	CAPSCREW - 7/16" - 14NC X 1"	3
?	PB1255	FLAT WASHER - 7/16" HARDENED	3
?	WA4850	FITTING	1
?	ED3830	ACCUMULATOR ASSM (SEE INDEX)	2	60017
?	WB0547	FITTING, 45 DEG.	1
?	WB1056	O-RING	1
?	PC0008	VALVE, CHECK	1
?	MM0067	CAPSCREW - M10 X 150 X 50	1
?	MM0471	LOCKWASHER - M10	1
?	HA6199	HOSE	1
?	WA4710	CLAMP	2
?	WB0583	FITTING, ADAPTOR	1
?	WA5658	FITTING, SWIVEL ADAPTOR	1
?	PC0016	VALVE, SOLENOID	1
?	HA6717	HOSE	1
?	HA7478	HOSE	1
?	WB0384	FITTING, TEE	1
?	WA2567	NUT, FITTING CAP	2
?	WB0585	ADAPTOR, FITTING	1
