AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE8070	COLLAR	2
?	BF2596	NUT	2
?	BF2594	PLUNGER	2
?		SEAL, WIPER (1)	2
?	VE8533	SCREW	1
?	BF2595	PACKING	6
?	BF2598	RING, GLYD	2
?		SPRING, PLUNGER RETURN (1)	2
?	BF2597	SEAT, SPRING	2
?	EF5752	SPOOL, REGULATING	2
?		SLEEVE (1)	2
?		SPRING, SPOOL (1)	2
?		PLUNGER (1)	2
?		SEAL (1)	2
?		PACKING (1)	1
?	VE9418	PLUG	1
?	C1546	FLAT WASHER - 1/4"	4
?		CAPSCREW (1)	4
?	VE9421	RETAINER, SLEEVE	1
?	BF2589	BODY - DUAL VALVE	1
?		SEAL (1)	2
?	EF3449	PLUG, ORIFICE - .045	1
?	VE8080	SPRING, REGULATOR	2
?	BF2599	SPRING, REGULATOR	2
?	BF2593	SEAT - STAGING	2
?	BF2592	PACKING	2
?	BF2591	STUD	2
?		RING, BACKUP (1)	2
?		SEAL (1)	2
?		RING, BACKUP (1)	2
?	WA0019	O-RING	2
?		RING, BACKUP (1)	4
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1

Komatsu AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA parts catalog PDF

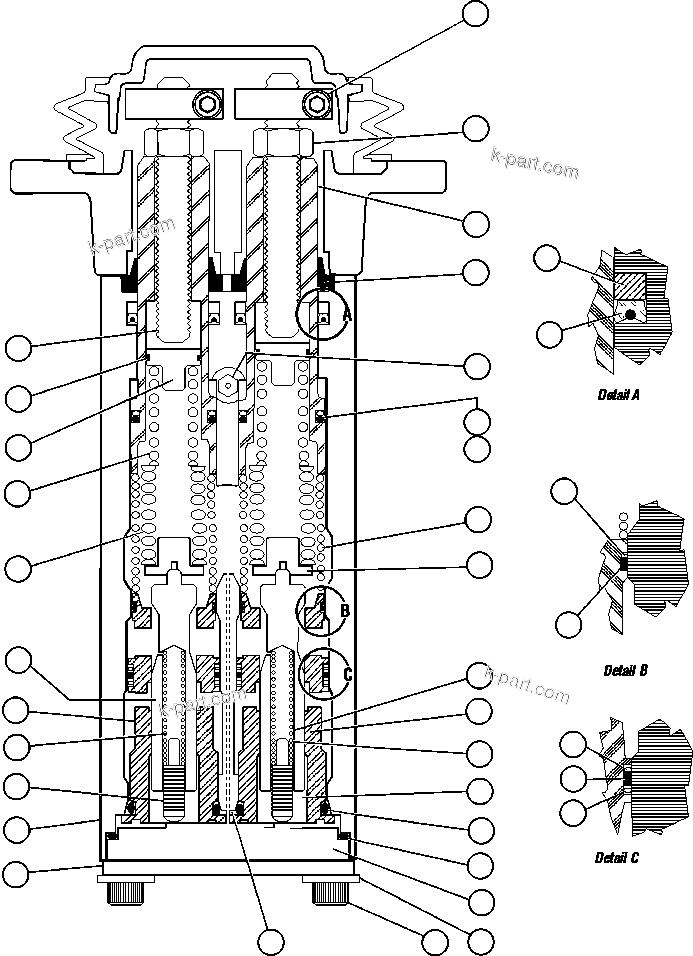

BRAKE VALVE SUB-ASSEMBLY - 1 (BF2875) (60066) in AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA. Diagram image and parts list.
