AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	HA7690	HOSE	1
?	VG9096	O-RING	6
?	PC0700	BLEEDDOWN MANIFOLD VALVE (SEE INDEX)	1	60405
?	EH8963	TUBE	1
?	WB0574	FITTING, STRAIGHT	1
?	TF3237	CLAMP	8
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	16
?	C5775	LOCKWASHER - 7/16"	19
?	ED3830	ACCUMULATOR ASSEMBLY (SEE INDEX)	2	60017
?	HA7693	HOSE	1
?	HA7691	HOSE	1
?	HA7688	HOSE	1
?	HA7692	HOSE	1
?	HA7689	HOSE	1
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	2
?	C1523	NUT - 1/2" - 13NC	2
?	WA0360	FLAT WASHER - 1/2"	5
?	C1540	LOCKWASHER - 1/2"	6
?	VL9602	CLAMP	2
?	HA7737	HOSE	1
?	HA7341	HOSE	1
?	EH1242	FILTER ASSEMBLY (STEERING)(SEE INDEX)	1	60471
?	EH1552	PAD, RUBBER	1
?	TL5327	CAPSCREW - 1/2" - 13NC X 1 1/2"	3
?	WA5629	CLAMP, FLANGE	6
?	VG9095	O-RING	4
?	C1631	CAPSCREW - 5/8" - 11NC X 2 1/4"	12
?	C1541	LOCKWASHER - 5/8"	12
?	EH1249	TUBE, HYDRAULIC	1
?	HA7687	HOSE	1
?	HA7587	HOSE	1
?	VM0317	PLUG	1
?	VM0313	PLUG	1
?	WB0599	FITTING, STRAIGHT	1
?	EC3036	CLAMP, HALF	4
?	MM0086	CAPSCREW - M16 X 2.00 X 60	8
?	MM0706	FLAT WASHER - M16	16
?	MM0696	LOCKNUT - M16 X 2.00	8
?		(NOT USED THIS APPLICATION)	-1
?	WB0522	FITTING, ELBOW - 90 DEG	1
?	TC6058	CLAMP	2
?	VM0319	PLUG	1
?	PB9992	FLOW AMPLIFIER ASSEMBLY (SEE INDEX)	1	35461
?	WB0584	FITTING, STRAIGHT	3
?	C1608	CAPSCREW - 7/16" - 14NC X 1"	3
?	PB1255	FLAT WASHER - 7/16"	3
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	16
?	C0312	LOCKWASHER - 3/8"	16
?	TF8077	CLAMP	8
?	VG9097	O-RING	4
?	HA7270	HOSE	2
?	WA4850	FITTING	1
?	WB0378	FITTING, ELBOW - 90 DEG	1
?	WB0537	FITTING, ELBOW - 45 DEG	1
?	VM0314	PLUG	1
?	VH6718	CLAMP, SPLIT FLANGE	2
?	WA0232	O-RING	1
?	C1623	CAPSCREW - 1/2" - 13NC X 3 3/4"	4
?	PC0170	VALVE, SHUT-OFF	1

Komatsu AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA parts catalog PDF

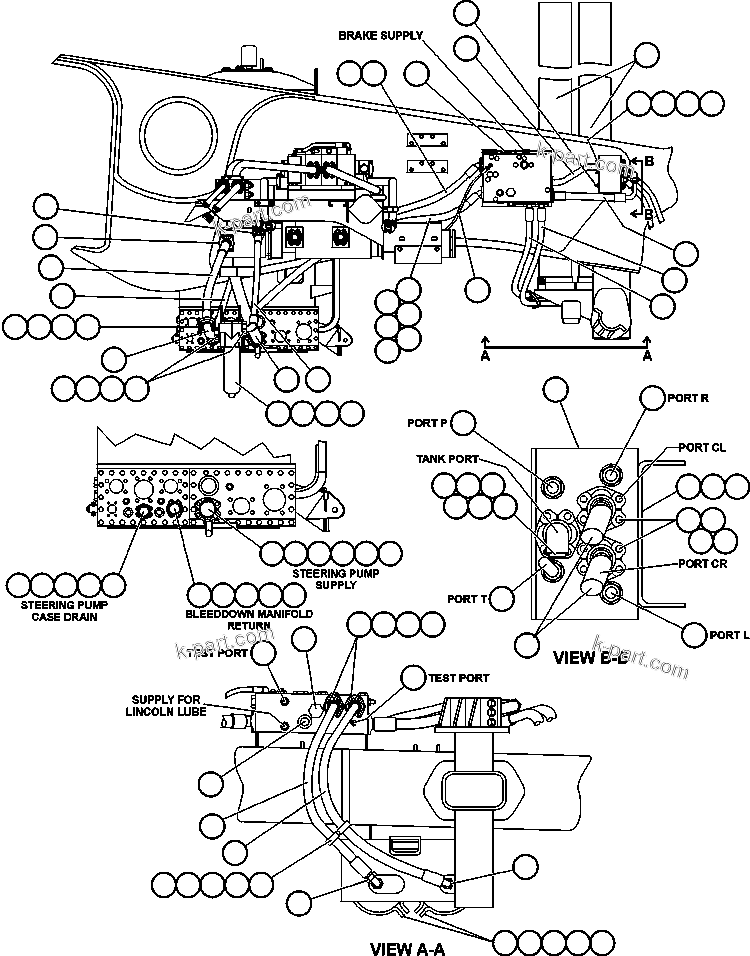

STEERING SYSTEM PIPING (60544) in AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA. Diagram image and parts list.
