AFE50-AN 830E S/N A30652-A30658 DIAVIK

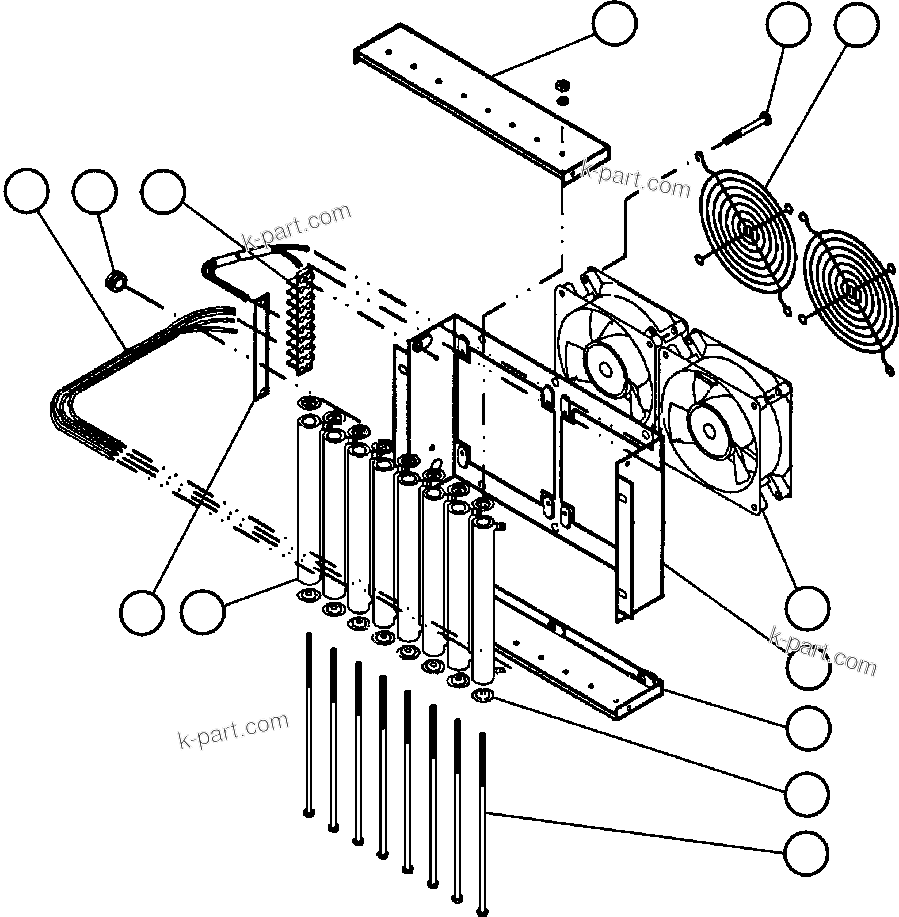

Komatsu parts book diagram for AFE50-AN 830E S/N A30652-A30658 DIAVIK: HEATER/FAN ASSEMBLY (ED9831)

? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	BF3635	CASING	1
	?	BF3636	COVER	2
	?	BF3637	FAN - 24V	2
	?	BF3638	GUARD, FAN	2
	?	TL7457	SCREW, MACHINE - #8 - 32NC X 2"	8
	?	BF3640	BLOCK, TERMINAL (8 POSITION)	1
	?	BF3644	STRIP, TERMINAL MARKER	1
	?	BF3639	RESISTOR - 100W	8
	?	BF3642	WASHER, CENTERING	16
	?	BF3641	BOLT, THROUGH	8
	?		GROMMET, RUBBER (NOT SERVICED)	1
	?	XA1898	HARNESS, WIRING	1

Komatsu AFE50-AN 830E S/N A30652-A30658 DIAVIK parts catalog PDF

HEATER/FAN ASSEMBLY (ED9831) (41702) in AFE50-AN 830E S/N A30652-A30658 DIAVIK. Diagram image and parts list.
