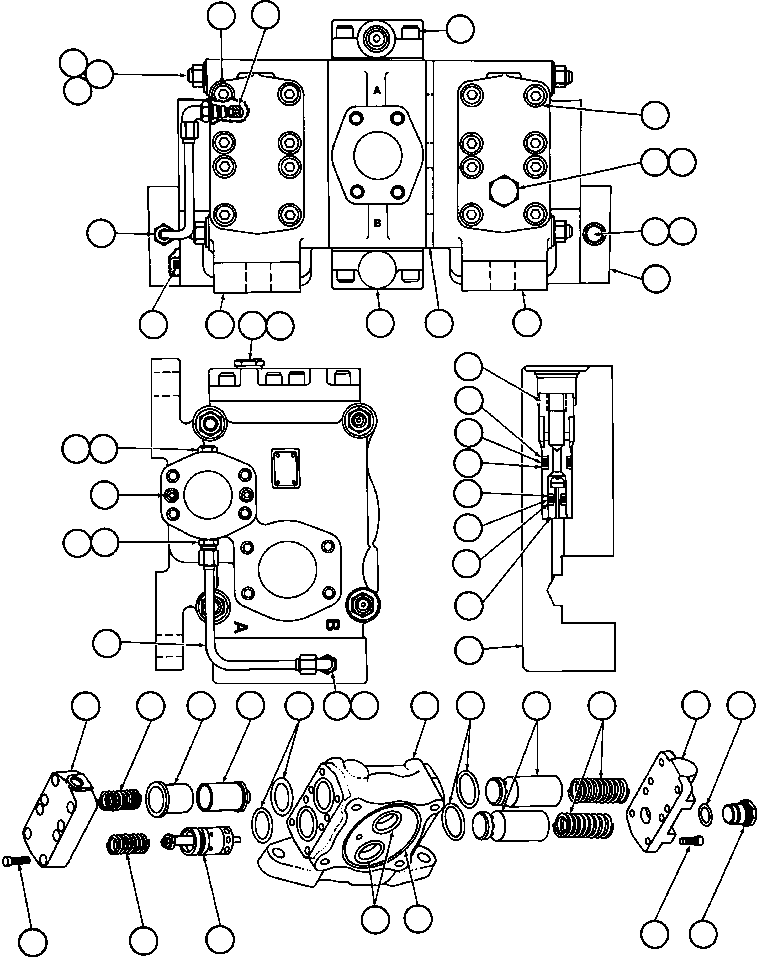

HOIST CONTROL VALVE ASSEMBLY (PB6921) | AFE50-AN 830E S/N A30652-A30658 DIAVIK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Reference
1	VE3805	ROD, TIE	4
2	VE3807	WASHER, COMPRESSION	8
3	VE3804	LOCKNUT	8
4	VE3809	INLET SECTION ASSEMBLY	2
5	VJ2002	CAPSCREW	16
6	VJ1987	CAPSCREW	16
7	VJ0011	PLUG	2
8	VJ0435	O-RING (1)/(2)	2
9	VE3551	PLUG	2
10	VE3565	O-RING (1)/(2)	6
11	VE3563	CAP, FLANGE	2
12	VE3553	O-RING (1)/(2)	2
13	VE3559	FITTING	2
14	VE3564	TUBE	2
15	VE3561	FITTING	2
16	VE3803	CAPSCREW	4
17	VE3560	SLEEVE (1)	2
18	VE3554	RING, BACKUP (1)/(2)	4
19	VE3552	O-RING (1)/(2)	2
20	VE3550	RING, BACKUP (1)/(2)	4
21	VE3526	O-RING (1)/(2)	2
22	VE3558	POPPET, RESTRICTION (1)	2
23	VE3562	COVER	2
24	VE3982	SPRING	2
25	VJ1989	SLEEVE	2
26	VE3609	RELIEF VALVE ASSEMBLY (1)	2
26	VE3555	PLUG	2
26	VE3556	POPPET	2
27	VE3533	O-RING (1)/(2)	8
28	BF3046	HOUSING, INLET	2
29	VJ1988	POPPET	4
30	VJ1985	SPRING	4
31	VE3568	COVER, POPPET	2
32	VE3534	O-RING (1)/(2)	3
33	VE3528	O-RING (1)/(2)	6
34	VE3567	RELIEF VALVE ASSEMBLY (1)	2
35	VJ1990	SPRING	2
36	VE3557	SCREW, RESTRICTION	2
37	VE3810	SPOOL SECTION ASSEMBLY (SEE INDEX)	1	50120
38	VE3806	PLATE, SPACER	1
39	VJ1987	CAPSCREW (INCLUDED WITH VE3810, REF. NO. 37)	16
NS\|42	BF3253	NOTE: (1) INCLUDED IN BF3253 MAJOR SERVICE KIT.	-1
NS\|43	BF3252	(2) INCLUDED IN BF3252 MINOR SERVICE KIT.	-1
