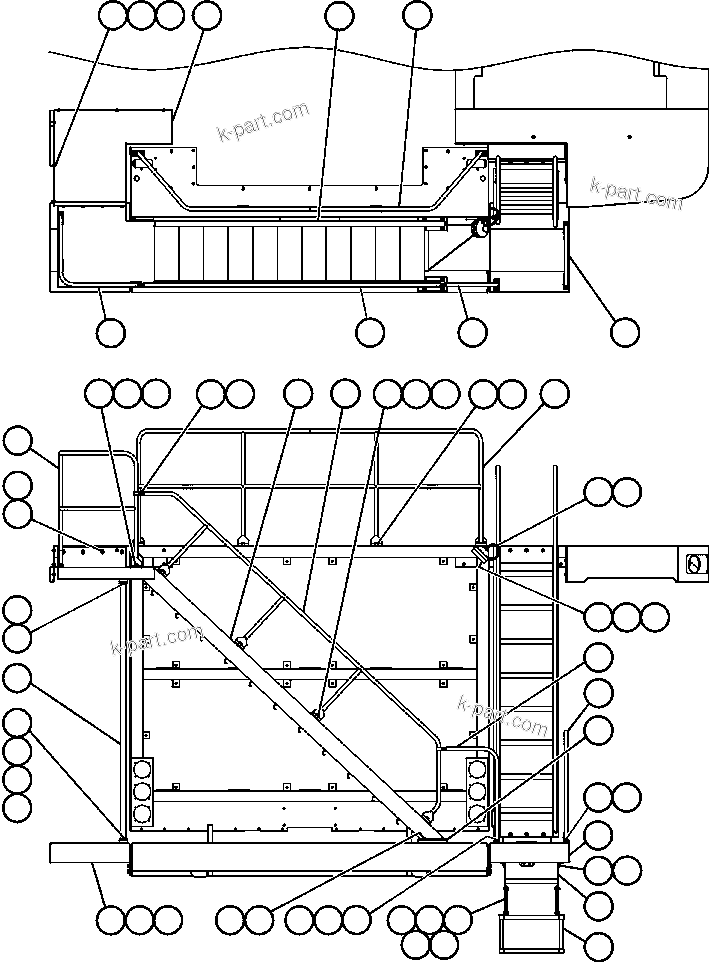

DIAGONAL LADDER & HANDRAILS | AFE50-AN 830E S/N A30652-A30658 DIAVIK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-AN 830E S/N A30652-A30658 DIAVIK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EC3738	HANDRAIL, CENTER	1
?	C1612	CAPSCREW - 1/2" - 13NC X 1"	8
?	C1540	LOCKWASHER - 1/2"	8
?	ED1034	HANDRAIL - R.H.	1
?	VC1387	CAPSCREW - 1/2" - 13NC X 1" (ZINC)	22
?	WA4728	FLAT WASHER - 1/2"	34
?	TY8388	BLOCK, TAPPED	8
?	TR1376	CAPSCREW - 1/2" - 13NC X 1 1/4" (ZINC)	16
?	TG5720	CAPSCREW - 3/8" - 16NC X 1" (ZINC)	8
?	HE5611	LOCKNUT - 3/8" - 16NC	18
?	YA2892	LADDER, DIAGONAL	1
?	EC6165	HANDRAIL, LADDER	1
?	EC6162	HANDRAIL, BOTTOM	1
?	ED1036	HANDRAIL - L.H.	1
?	EC6419	PLATE, TAPPED	2
?	ED1031	PLATFORM - L.H.	1
?	EJ3650	PLATFORM - R.H.	1
?	TV1748	CAPSCREW - 5/8" - 11NC X 1 1/2"	16
?	WA4729	FLAT WASHER - 5/8" (HARDENED)	16
?	EJ4702	SUPPORT, LADDER	1
?	EJ5893	PLATE, TAPPED	1
?	EJ5894	PAD, TAPPED	1
?	ED1035	STEP	1
?	EB2102	BAR	2
?	EC7230	BAR	2
?	EC6554	STRAP, MOUNTING	2
?	VC8762	CAPSCREW - 3/8" - 16NC X 1 1/2" (ZINC)	10
?	EC6553	STEP	1
?	EJ4701	ADAPTOR, LADDER	1
?	C1601	CAPSCREW - 3/8" - 16NC X 3/4"	20
?	WA4726	FLAT WASHER - 3/8" (HARDENED)	20
?	C0312	LOCKWASHER - 3/8"	20
?	AK7503	FLOOD LIGHT ASSEMBLY (SEE FIG 40869)	1	40869
?	TD0794	CAPSCREW - 5/16" - 18NC X 3/4"	1
?	SC4174	LOCKWASHER - 5/16"	1
?	EJ5899	HARNESS, DIAGONAL LADDER LIGHT	1
?	SG2103	GROMMET, RUBBER	1
