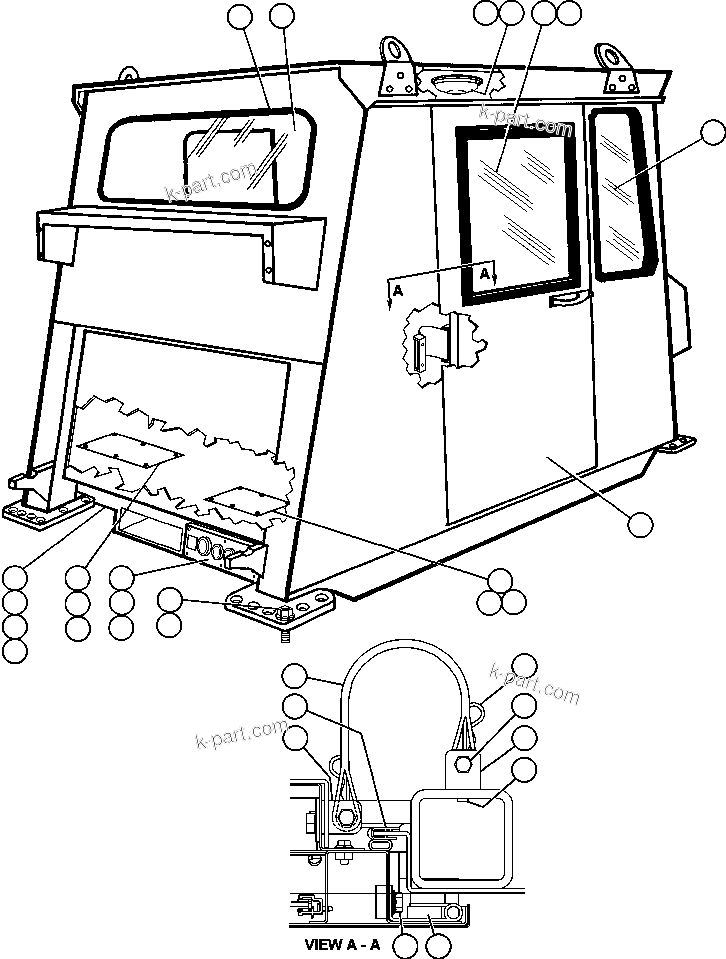

CAB ASSEMBLY - 1 EJ7862(1) (EJ8300(2)) | AFE50-AN 830E S/N A30652-A30658 DIAVIK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-AN 830E S/N A30652-A30658 DIAVIK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	SM1094	GLASS, REAR	1
?	SM2045	CHANNEL, RUBBER	1
?	VE5837	LIGHT, DOME	1
?	VE8635	LENS, PLASTIC	1
?	VE8636	SWITCH	1
?	VZ1912	BULB, 24 VOLT	1
?	SM2879	GLASS, FRONT - R.H.	1
?	SM5949	DOOR ASSEMBLY - R.H. (SEE FIG 60554)	1	60554
?	PC0841	WINDOW ASSEMBLY	1
?	SM2265	GLASS	1
?	SM2839	PLATE, CONNECTOR (SEE FIG 60122)	1	60122
?	MM0027	CAPSCREW - M6 X 1.00 X 25	8
?	MM0469	LOCKWASHER - M6	8
?	SM4419	PLATE, ACCESS - R.H. FLOOR	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	12
?	MM0471	LOCKWASHER - M10	12
?	SM2189	PLATE, ACCESS - L.H. FLOOR	1
?	SM0991	PLATE, FRONT ACCESS - BRAKE & STEERING PIPING	1
?	SM0992	PLATE, REAR ACCESS - BRAKE & STEERING PIPING	1
?	31154R1	CAPSCREW - M8 X 12	14
?	SM2402	SEAL, DOOR	1
?	SM2167	STRAP, DOOR CHECK	2
?	SM2165	BRACKET, DOOR STRAP	2
?	SM2168	CAPSCREW, DRILLED	4
?	SM2322	CLIP, HAIR PIN	4
?	SM2582	SEAL, INNER DOOR	2
?	MM0470	LOCKWASHER - M8	14
?	MM0595	CAPSCREW - M8 X 1.25 X 30	14
?	VN9097	CAPSCREW - 1" - 8NC X 2 3/4"	40
?	TY2148	FLAT WASHER - 1" (HARDENED)	40
?		NOTE: (1) EFFECTIVE THRU A30655.	-1
?		(2) EFFECTIVE WITH A30656.	-1
?		(BOTH CAB ASSEMBLIES ARE IDENTICAL, EXCEPT	-1
?		FOR THE GLUED CARPET.)	-1
