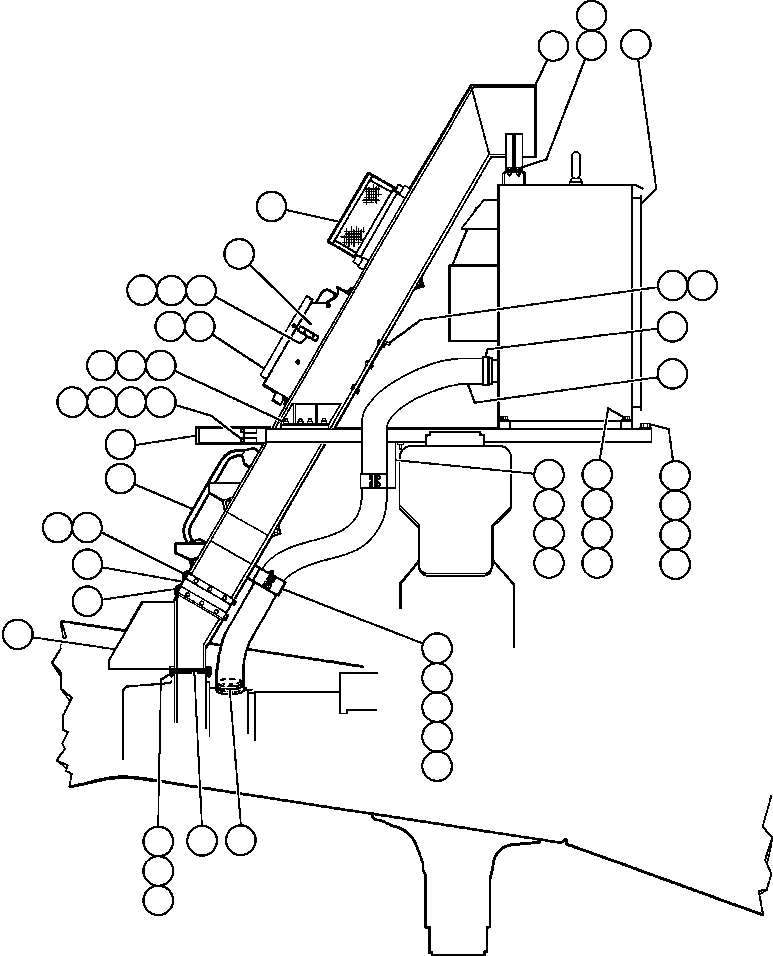

BLOWER INLET INSTALLATION | AFE50-BE 830E S/N A30706-A30708 DIAVIK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Reference
1	EK3722	DUCT, INLET	1
2	TR1376	CAPSCREW - 1/2" - 13NC X 1 1/4"	4
3	TR5445	LOCKWASHER - 1/2"	4
4	EK3497	CABINET, CONTROL (SEE INDEX)	1	41437
5	WA4729	FLAT WASHER - 5/8" (HARDENED)	8
6	VC1390	LOCKWASHER - 5/8"	4
7	VG2260	CAPSCREW - 5/8" - 11NC X 6"	4
8	TV1749	NUT - 5/8" - 11NC	4
9	WA4730	FLAT WASHER - 3/4" (HARDENED)	4
10	TR4735	LOCKWASHER - 3/4"	2
11	VG2651	CAPSCREW - 3/4" - 10NC X 2 1/2"	2
12	TR8960	NUT - 3/4" - 10NC	2
13	WA1060	CLAMP - T-BOLT	2
14	TY8672	HOSE	1
15	TZ1189	U-CLAMP	1
16	C1601	CAPSCREW - 3/8" - 16NC X 3/4"	2
17	TC1231	LOCKWASHER - 3/8"	28
18	TC1233	NUT - 3/8" - 16NC	20
19	TR5445	LOCKWASHER - 1/2"	2
20	TW6954	U-CLAMP	2
21	TK1427	GASKET	1
22	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	10
23	TY3653	TRANSITION	1
24	TY3656	BAR	4
25	TY3655	BOOT	1
26	JG9620	BAR	4
27	WA4497	SCREW, SELF-TAPPING - 1/4" X 3/4"	32
28		(NOT USED THIS APPLICATION)	-1
29	ED6383	DECK - REAR CENTER	1
30	WA0362	FLAT WASHER - 3/4"	4
31	C1542	LOCKWASHER - 3/4"	4
32	C1651	CAPSCREW - 3/4" - 10NC X 3 3/4"	4
33	C1527	NUT - 3/4" - 10NC	4
34	WA0720	FLAT WASHER - 3/8" (HARDENED)	8
35	TG5720	CAPSCREW - 3/8" - 16NC X 1"	8
36	TY0553	STRIP, SEAL - TOP & BOTTOM	2
37	TY0554	STRIP, SEAL - SIDES	2
38	PB6489	PANEL, RECTIFIER (SEE INDEX)	1	55509
39	VS7026	COVER, LATCH	1
40	VF2231	MACHINE SCREW - #10 - 24NC X 3/8"	2
41	DC3101	LOCKWASHER - #10	2
42	PB5508	PANEL, RESISTOR (SEE INDEX)	1	64076
43	TY3398	COVER	1
44	WA1738	SCREW, SELF LOCKING	6
