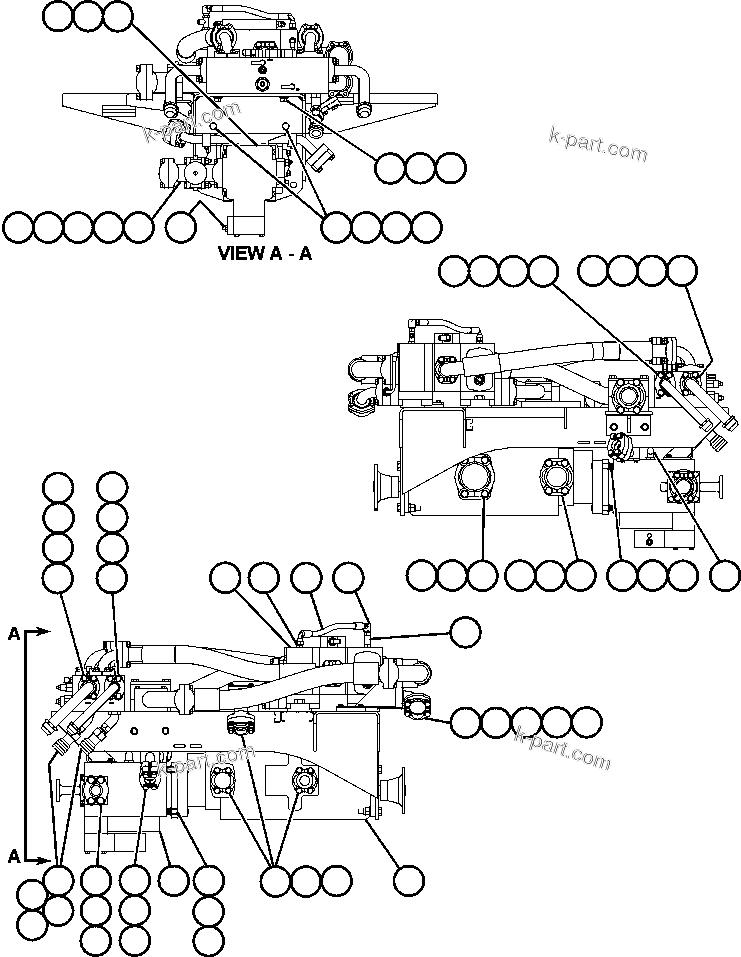

PUMP/VALVE MODULE - 1 | AFE50-BE 830E S/N A30706-A30708 DIAVIK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-BE 830E S/N A30706-A30708 DIAVIK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	TF8090	CLAMP, SPLIT	4
?	VG9095	O-RING	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	28
?	C1540	LOCKWASHER - 1/2"	52
?	WA5630	CLAMP, SPLIT	8
?	VG9096	O-RING	2
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	24
?	PB6921	VALVE, HOIST CONTROL (SEE INDEX)	1	40003
?	WB0584	FITTING, STRAIGHT	1
?	HA6231	HOSE	1
?	WB0375	FITTING, ELBOW - 90 DEG	1
?	WB0557	FITTING, TEE	1
?	PB8318	ELBOW	1
?	TF3231	CLAMP, SPLIT	10
?	WA0187	O-RING	1
?	PB8761	PUMP, HOIST (SEE INDEX)	1	60660
?	VG9058	RING, SEATING	4
?	WA0098	O-RING	1
?	WA0878	CAPSCREW - 3/4" - 10NC X 2 1/2" (12 PT)	4
?	PC1141	PUMP, STEERING (SEE INDEX)	1	41335
?	WA5629	CLAMP, SPLIT	2
?	C1631	CAPSCREW - 5/8" - 11NC X 2 1/4"	4
?	C1541	LOCKWASHER - 5/8"	16
?	WA3568	FITTING, TUBE	2
?	WB0547	FITTING, ELBOW - 45 DEG	2
?	PB4685	COUPLING, HYDRAULIC	2
?	TA2968	PLUG, DUST	2
?	WB0520	FITTING, ELBOW - 90 DEG	1
?	VL9963	CLAMP, SPLIT	2
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	6
?	VN7716	CLAMP, SPLIT	2
?	C1630	CAPSCREW - 5/8" - 11NC X 2"	4
?	WA0361	FLAT WASHER - 5/8"	6
?	C7595	CAPSCREW - 5/8" - 11NC X 1 1/4"	4
?	EC8707	BRACKET	1
?	VN9952	NUT, LOCK - 5/8" - 11NC	2
?	DC7524	CAPSCREW - 3/8" - 16NC X 7/8"	2
?	WA0720	FLAT WASHER - 3/8"	2
?	C0312	LOCKWASHER - 3/8"	2
?	WB0580	FITTING, STRAIGHT	1
?	TY8353	VALVE, SHUT-OFF (SEE INDEX)	1	40166
?	VH6718	CLAMP, SPLIT	4
?	WA0232	O-RING	1
