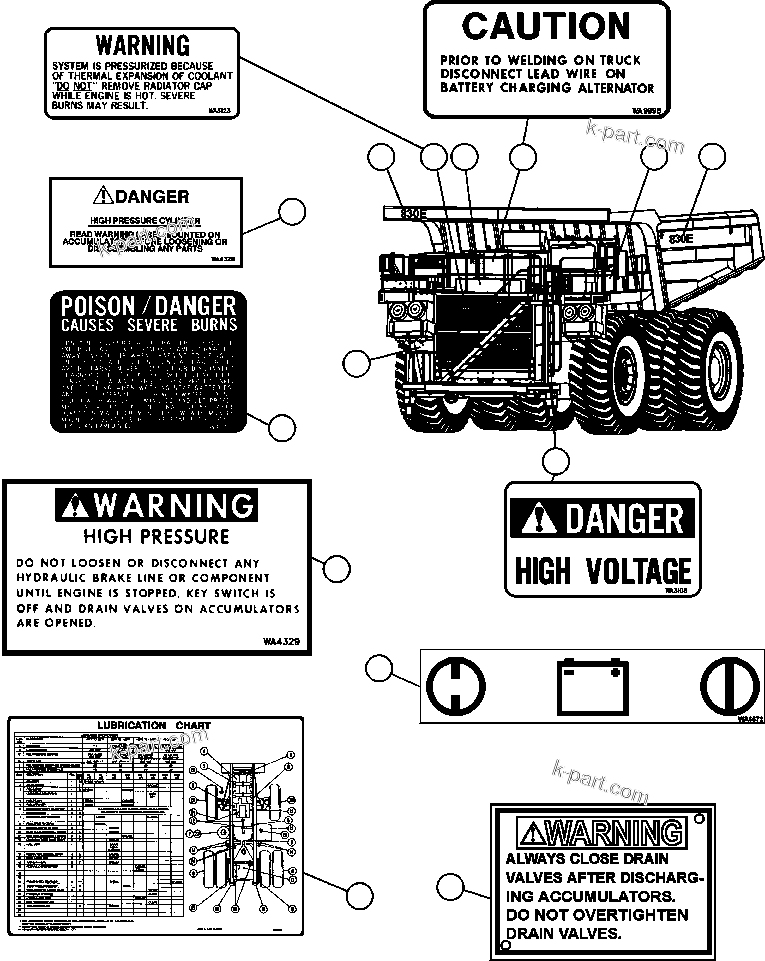

WA3123
|
PLATE, RADIATOR PRESSURE WARNING (TOP OF GRILLE) (1) |
1 |
|
|
|
|
? |
09690-C1120
|
DECAL, KOMATSU (WHITE LETTERING)(TOP FRONT OF GRILLE) |
1 |
|
|
|
|
? |
09690-B1120
|
DECAL, KOMATSU (BLACK LETTERING)(TOP FRONT OF GRILLE) |
1 |
|
|
|
|
? |
09690-C0560
|
DECAL, KOMATSU (WHITE LETTERING)(CENTER OF L.H. DOOR) |
1 |
|
|
|
|
? |
09690-B0560
|
DECAL, KOMATSU (BLACK LETTERING)(CENTER OF L.H. DOOR) |
1 |
|
|
|
|
? |
WB2404
|
DECAL, 830E (WHITE LETTERING)(BOTH SIDES OF BODY) |
2 |
|
|
|
|
? |
WB2451
|
DECAL, 830E (BLACK LETTERING)(BOTH SIDES OF BODY) |
2 |
|
|
|
|
? |
WB2790
|
CHART, LUBE (R.H. UPRIGHT) (2) |
1 |
|
|
|
|
? |
WA9998
|
PLATE, WELDING CAUTION (CONTROL CABINET DOORS) (1) |
2 |
|
|
|
|
? |
WA3108
|
PLATE, HIGH VOLTAGE DANGER (CONTROL CABINET DOOR |
4 |
|
|
|
|
? |
|
& TOP & SIDE OF RETARDING GRID) (1) |
-1 |
|
|
|
|
? |
WA6666
|
DECAL, 830E (R.H. FRONT OF CANOPY) |
1 |
|
|
|
|
? |
WB2438
|
DECAL, HIGH PRESSURE CYLINDER DANGER) (INSIDE |
1 |
|
|
|
|
? |
|
HYDRAULIC BRAKE CABINET) |
-1 |
|
|
|
|
? |
WA3101
|
PLATE, POISON DANGER (TOP OF BATTERY BOX) (1) |
1 |
|
|
|
|
? |
WB2691
|
PLATE, HIGH PRESSURE WARNING (INSIDE HYDRAULIC |
1 |
|
|
|
|
? |
|
BRAKE CABINET) (3) |
-1 |
|
|
|
|
? |
WA6672
|
DECAL, ON/OFF (TOP OF BATTERY DISCONNECT SWITCH BOX) |
1 |
|
|
|
|
? |
WA6668
|
PLATE, DRAIN VALVES WARNING (TOP OF BRAKE MANIFOLD |
1 |
|
|
|
|
? |
|
VALVE INSIDE BRAKE CABINET) (3) |
-1 |
|
|
|
|
? |
|
NOTE: NS = NOT SHOWN |
-1 |
|
|
|
|
? |
VL3817
|
PLATE, NEGATIVE GROUND (TOP OF BATTERY BOX) (4) |
1 |
|
|
|
|
? |
WB2944
|
CHART, GRADE SPEED (L.H. INSIDE FRONT OF CAB) (5) |
1 |
|
|
|
|
? |
|
NOTE: (1) USE DC9822 DRIVE SCREW AS REQUIRED. |
-1 |
|
|
|
|
? |
|
(2) USE CC6049 DRIVE SCREW AS REQUIRED. |
-1 |
|
|
|
|
? |
|
(3) USE WA3134 DRIVE SCREW AS REQUIRED. |
-1 |
|
|
|
|
? |
|
(4) USE R1073 DRIVE SCREW AS REQUIRED. |
-1 |
|
|
|
|
? |
|
(5) USE MM0347 MACHINE SCREW AS REQUIRED. |
-1 |
|
|
