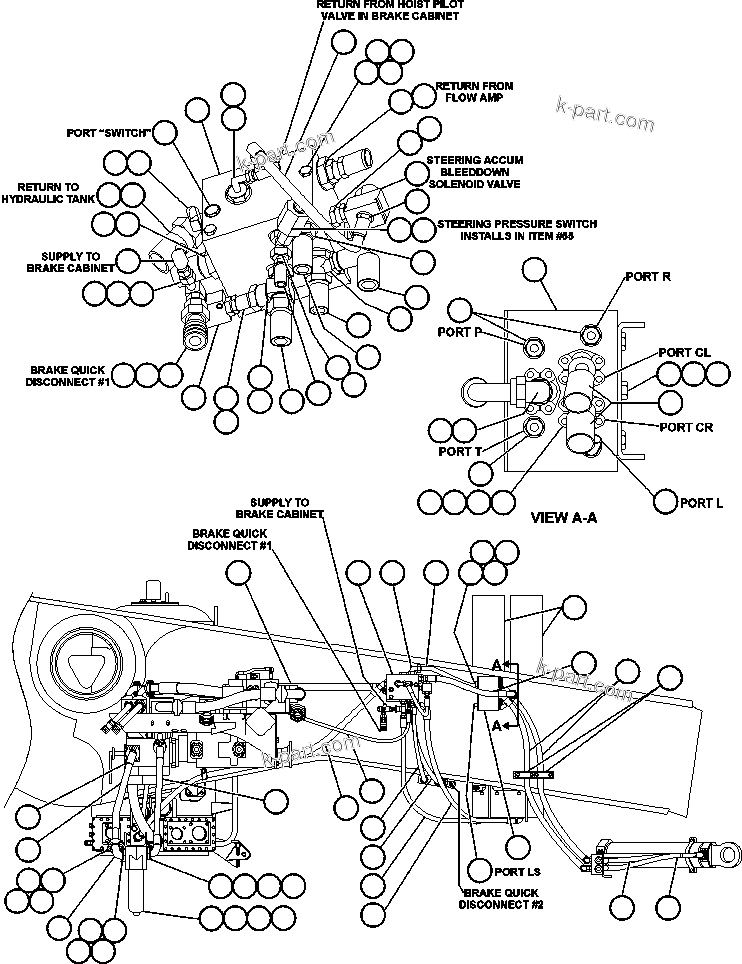

STEERING PIPING - 1 | AFE50-BE 830E S/N A30706-A30708 DIAVIK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-BE 830E S/N A30706-A30708 DIAVIK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VG9096	SEAL, O-RING	2
?	HA7593	HOSE	1
?	PC0235	BLEEDDOWN MANIFOLD VALVE ASSM (SEE INDEX)	1	41392
?	WB0524	FITTING, ELBOW - 90 DEG	1
?	EG7185	TUBE	1
?	TF3237	CLAMP, SPLIT	2
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	4
?	C5775	LOCKWASHER - 7/16"	7
?	PC1647	ACCUMULATOR ASSEMBLY (SEE INDEX)	2	60678
?	HA4416	HOSE	1
?	HA6240	HOSE	2
?	WA4710	CLAMP	2
?	HA6241	HOSE	2
?	HA2185	HOSE	2
?	PB6908	AMPLIFIER, FLOW (SEE INDEX)	1	41657
?	WB0574	FITTING, STRAIGHT	1
?	HA3278	HOSE	1
?	HA5515	HOSE	1
?	HA7546	HOSE	1
?	HA6242	HOSE	1
?	HA6227	HOSE	1
?	HA5822	HOSE	1
?	WA5629	CLAMP	6
?	VG9095	SEAL, O-RING	4
?	C1631	CAPSCREW - 5/8" - 11NC X 2 1/4"	12
?	C1541	LOCKWASHER - 5/8"	12
?	EH1242	FILTER ASSEMBLY (SEE INDEX)	1	60471
?	WA0360	FLAT WASHER - 1/2"	5
?	EH1552	PAD, RUBBER	1
?	TL5327	CAPSCREW - 1/2" - 13NC X 1 1/2"	3
?	EH1249	TUBE	1
?	HA7591	HOSE	1
?	C1608	CAPSCREW - 7/16" - 14NC X 1"	3
?	C5775	LOCKWASHER - 7/16"	3
?	PB1255	FLAT WASHER - 7/16"	3
?	WB0537	FITTING, ELBOW - 45 DEG	1
?	TF8077	CLAMP, SPLIT	6
?	VG9097	SEAL, O-RING	3
?	C0312	LOCKWASHER - 3/8"	12
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	12
?	WB0378	FITTING, ELBOW - 90 DEG	1
?	WA4850	FITTING	1
?	WB0584	ADAPTOR, STRAIGHT	3
?	WB0510	FITTING, ELBOW - 90 DEG	1
?	WB0384	FITTING, TEE	1
?	HA6717	HOSE	1
?	C1540	LOCKWASHER - 1/2"	2
?	C1628	CAPSCREW - 1/2" - 13NC X 7"	2
?	C1523	NUT - 1/2" - 13NC	2
?	WB0600	ADAPTOR, STRAIGHT	2
?	WA5658	ADAPTOR, STRAIGHT SWIVEL	1
?	WB0583	ADAPTOR, STRAIGHT	2
?	PC0016	SOLENOID	1
?	VN3308	ADAPTOR, SWIVEL	2
?	EG1092	BOSS	1
?	PB7557	SWITCH, STEERING PRESSURE	1
?	WB0599	FITTING, STRAIGHT	1
?	WB0561	FITTING, TEE	1
?	WB0560	FITTING, TEE	1
?	WA3043	FITTING, STRAIGHT	1
?	WB0387	FITTING, TEE	1
?	WB1064	FITTING, FLANGED	1
?	WB1065	FITTING, SWIVEL	1
?	PC0008	VALVE, CHECK	1
?	PB4683	COUPLING, QUICK DISCONNECT	1
?	PB4686	PLUG, DUST	1
?	WB0559	FITTING, TEE	1
?	WB0361	FITTING, STRAIGHT	1
?	WA4504	ADAPTOR	1
?	WB0375	FITTING, ELBOW - 90 DEG	1
?	WB0601	FITTING, STRAIGHT	1
?	WB0549	FITTING, ELBOW - 45 DEG	1
?	PB6041	CAP, DUST	1
?	PB6528	COUPLING, DIAGNOSTIC	1
?	VM0314	PLUG	1
