AFE50-BF/BH 830E S/N A30709 & A30717-A30718 WEST ANGELAS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VS7980	GUARD, VALVE	1
?		STEM, VALVE (1)	1
?	TD7179	CORE, VALVE	1
?	VE3880	DYNASEAL (3)	1
?	VS7979	NUT	1
?		BLADDER & GAS VALVE ASSEMBLY (1)/(3)	1
?	TV9949	RING, ANTI-EXTRUSION (2)	1
?	VE3903	PLUG & POPPET ASSEMBLY	1
?	TV9944	SPRING	1
?	VE3905	PLUG, BLEED	1
?	VE3908	O-RING	1
?	TV9948	NUT, STOP	1
?	VE3904	PLUG, MACHINED	1
?	TV9947	PISTON	1
?	TV9943	POPPET	1
?	VD4374	SPACER (2)	1
?	VD4399	LOCKNUT (2)	1
?	VE3907	RING, BACKUP (2)/(3)	1
?	VD4373	O-RING (2)/(3)	1
?	VE3906	WASHER (2)/(3)	1
?		SHELL (1)	1
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1
?		(2) INCLUDED IN VE3058 PORT ASSEMBLY.	-1
?	VE1715	(3) INCLUDED IN VE1715 REPAIR KIT.	-1

Komatsu AFE50-BF/BH 830E S/N A30709 & A30717-A30718 WEST ANGELAS parts catalog PDF

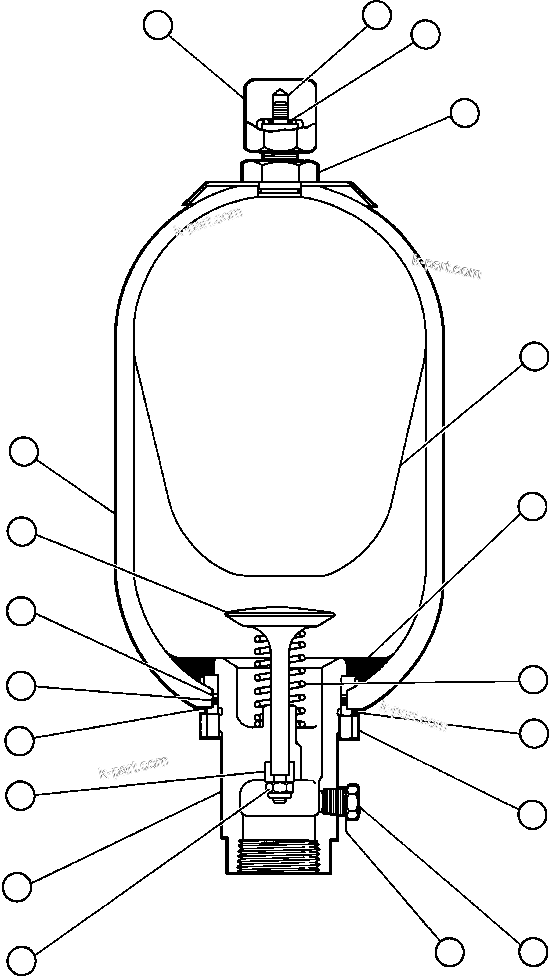

ACCUMULATOR ASSEMBLY (1 GAL.) (PB7057) (40016) in AFE50-BF/BH 830E S/N A30709 & A30717-A30718 WEST ANGELAS. Diagram image and parts list.
