AFE50-BF/BH 830E S/N A30709 & A30717-A30718 WEST ANGELAS

4 2 1 6 2 51 7 3 10 4 45 8 9 48 49 43 47 50 5 46 9 6 30 31 32 8 40 29 42 12 44 39 10 11 12 15 13 34 35 36 41 37 38 33 28 27 14 16 26 25 24 23 22 20 21 19 18 17

#	Part Number	Partname	Quantity
0	VE8652	BLOWER ASSEMBLY	1
1	VE8658	HOUSING, BLOWER (1)	1
2	VE7951	WHEEL, BLOWER	2
3	VE8660	PLATE, COVER (1)	1
4	VE8657	VENTURI (1)	2
5	VE7950	MOTOR - 24V	1
6	VE8659	MOUNT, MOTOR (1)	2
7	BF5260	CONVERTER	1
8	BF5257	ACTUATOR, MOTOR	2
9	BF5266	SCREW - M4 X 20	6
10	BF5265	SPACER, NYLON	6
11	BF5254	DOOR, FLAPPER (DEFROST)	1
12	BF5267	BUSHING, SNAP - 3/16"	2
13	BF5643	FOAM, OPEN CELL (1)	1
14	BF4816	VALVE, HEATER	1
15	BF4170	GROMMET	1
16	XA2219	CASING	1
17	XA2227	GASKET - 1/16" X 1/2"	1
18	BF5252	HOLDER, INTERNAL FILTER	1
19	BF5467	FILTER, AIR	1
20	BF5268	KNOB	2
21	XA2242	HOLDER, EXTERNAL FILTER	1
22	XA2221	INSULATION, FOAM	1
23	XA2226	NUT, CAP	7
24	XA2222	FLAT WASHER - M5	7
25	XA2220	COVER	1
26	BF2721	LOUVER	3
27	PB8320	ADAPTER, LOUVER	3
28	XA2231	FOAM	1
29	XA2224	PLATE, COIL	1
30	VE8650	COIL, EVAPORATOR	1
31	BF2733	O-RING - #8	2
32	BF2732	VALVE, BLOCK	1
33	BF4218	KNOB	2
34	BF2729	SWITCH, TOGGLE (3 POSITION)	1
35	XA2229	OVERLAY	1
36	XA2228	PLATE, CONTROL	1
37	BF4168	POTENTIOMETER	1
38	BF2722	BLOCK, JUNCTION	1
39	BF5256	THERMOSTAT	1
40	BF2734	HOSE, PVC - 1/4" OD	1
41	BF2723	SWITCH, BLOWER	1
42	BF2738	SCREW, PAN - M6 X 1	4
43	BF5645	DOOR, FLAPPER (DISCHARGE)	1
44	BF2728	SWITCH, TOGGLE (2 POSITION)	2
45	BF5642	BRACKET, FLAPPER DOOR	1
46	SM2516	COIL, HEATER	1
47	XA2064	RELAY - 12V	5
48	BF2731	BREAKER, CIRCUIT	1
49	BF2725	RESISTOR - 12V	1
50	BF2726	RESISTOR - 24V	1
51	BF4166	RETAINER, BLOWER	1
NS\|53		NOTE: NS = NOT SHOWN	-1
NS\|54	XA2230	HARNESS, WIRING	1
NS\|55		NOTE: (1) NOT SERVICED SEPARATELY.	-1

Komatsu AFE50-BF/BH 830E S/N A30709 & A30717-A30718 WEST ANGELAS parts catalog PDF

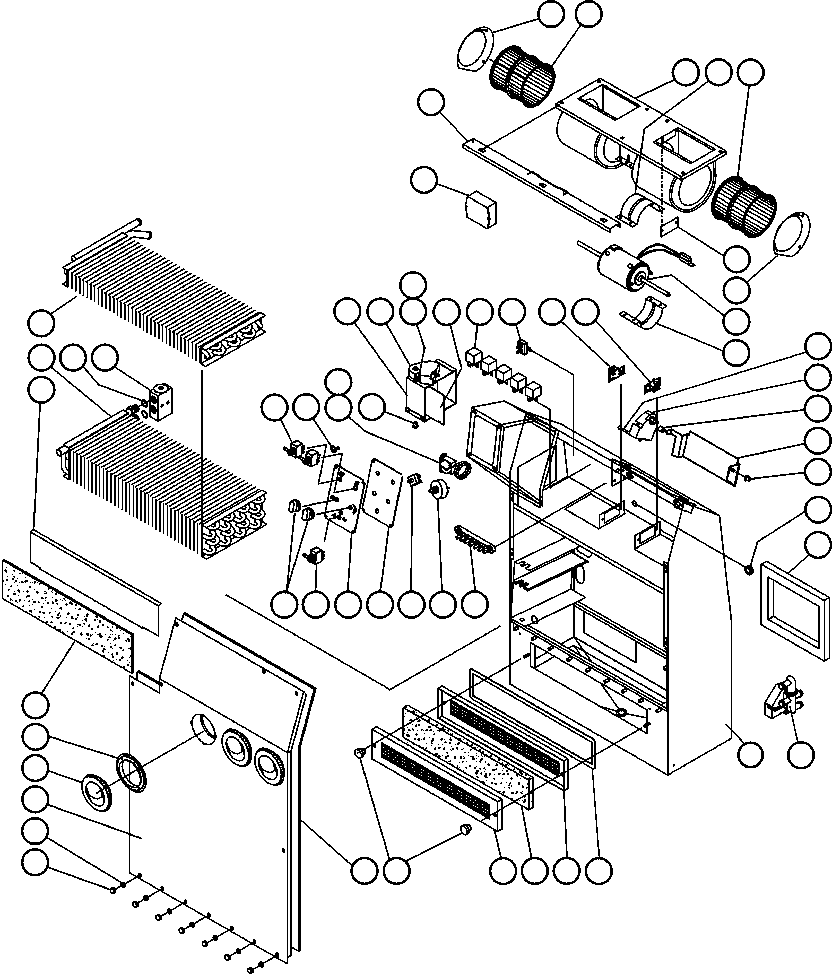

HEATER/AIR CONDITIONER ASSEMBLY - 1 (PC1066) (55554) in AFE50-BF/BH 830E S/N A30709 & A30717-A30718 WEST ANGELAS. Diagram image and parts list.
