AFE50-GC 830E S/N GAE2170 & GAE2173 & GAE2175 & GAE2177 GLIDER KIT

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EK8767	MOUNT STR CONDENSER	1
?	EK8720	CONDENSER	1
?	MM0471	LOCKWASHER - M10	16
?	MM0461	FLAT WASHER - M10	15
?	MM0178	NUT, HEX - M10 X 1.50	8
?	HA8077	HOSE	1
?	WA1731	O-RING - 5/16" I.D.	4
?	HA8079	HOSE	1
?	WA1733	O-RING - 9/16" I.D.	2
?	WB1027	O-RING - 86/125" I.D.	2
?	WB3091	CLAMP, CUSHIONED - 86/125"	6
?	HA7216	HOSE	1
?	WA1732	O-RING - 9/16" I.D.	2
?	DA0557	WASHER	8
?	VY9850	MOUNT, RUBBER	4
?	WB3093	CLAMP, CUSHIONED - 1"	15
?	C1616	CAPSCREW - 1/2" - 13NC X 2" (G5)	4
?	WB1304	CLAMP, CUSHIONED - 281/500"	13
?	TG5720	CAPSCREW - 3/8" - 16NC X 1" (G5) (ZINC)	8
?	TC1232	FLAT WASHER - 3/8"	16
?	TG9225	LOCKNUT, NYLON - 3/8" UNC	8
?	MM0605	CAPSCREW - M10 X 1.30 X 25 (ZINC)	1
?	MM0603	CAPSCREW - M10 X 1.50 X 16 (ZINC)	1
?	HA8076	HOSE	1
?	PC1830	ACCUMULATOR	1
?	WA1056	CLAMP	2
?	HA8078	HOSE	1
?	VZ4843	TIE, CABLE	10
?	PC1804	SWITCH, PRESSURE	1
?	PB7619	ADAPTER	1
?	PB8689	DRIER, RECEIVER	1
?	PC1341	DRIER, BRACKET	1
?	MM0027	CAPSCREW - M6 X 1.00 X 25	4
?	MM0459	FLAT WASHER - M6	4
?	MM0042	CAPSCREW - M10 X 1.50 X 25	2
?	EL3603	MOUNTING STRUCTURE, ACCUMULATOR	1

Komatsu AFE50-GC 830E S/N GAE2170 & GAE2173 & GAE2175 & GAE2177 GLIDER KIT parts catalog PDF

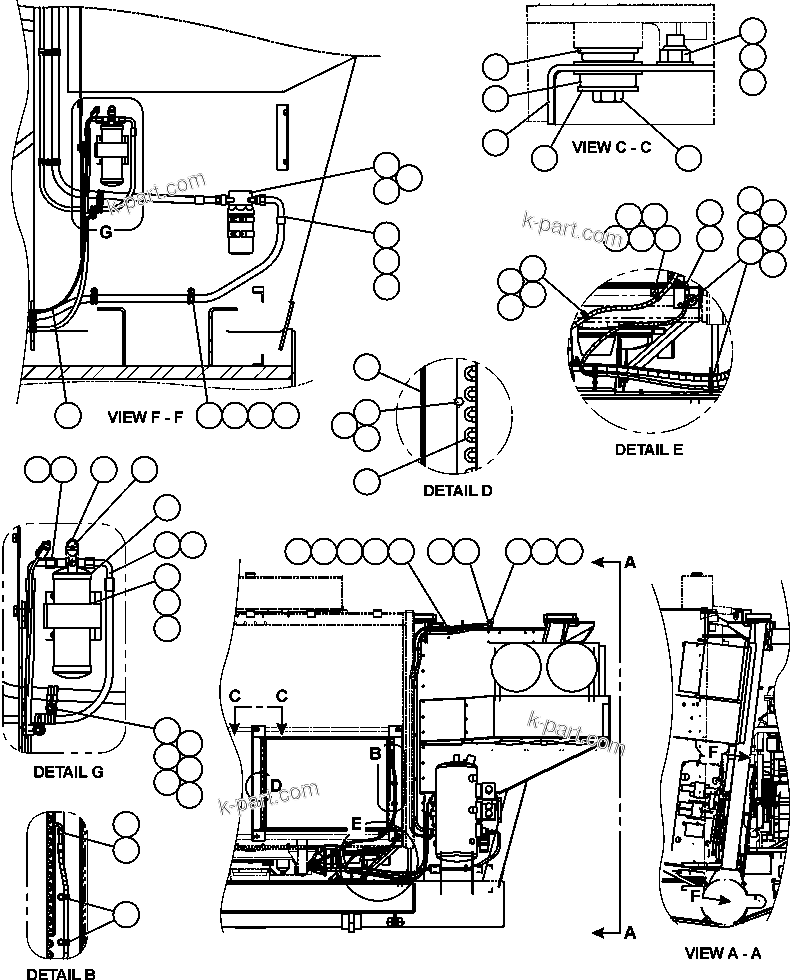

AIR CONDITIONER PIPING & INSTALLATION (41860) in AFE50-GC 830E S/N GAE2170 & GAE2173 & GAE2175 & GAE2177 GLIDER KIT. Diagram image and parts list.
