AFE50-G/H 830E S/N A30570-A30573, A30575-A30583 & A30586-A30588 LOS PELAMBRES

? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EC6799	STRIP, ANTI-SLIP	5
?	TY9257	STRIP, ANTI-SLIP	3
?	TY9258	STRIP, ANTI-SLIP	4
?	TY9254	STRIP, ANTI-SLIP	3
?	TY9256	STRIP, ANTI-SLIP	4
?	ED6400	DECK, CENTER	1
?	VF8334	CAPSCREW - 3/4" - 10NC X 2 3/4"	2
?	VG2651	CAPSCREW - 3/4" - 10NC X 2 1/2"	2
?	TR8960	NUT - 3/4" - 10NC	4
?	TR4735	LOCKWASHER - 3/4"	4
?	WA4730	FLAT WASHER - 3/4" (HARDENED)	8
?	ED6383	DECK - CENTER REAR	1
?	C1527	NUT - 3/4" - 10NC	4
?	C1542	LOCKWASHER - 3/4"	4
?	C1651	CAPSCREW - 3/4" - 10NC X 3 3/4"	4
?	WA0362	FLAT WASHER - 3/4" (HARDENED)	4
?	EG7227	DECK, L.H.	1
?	WA4730	FLAT WASHER - 3/4" (HARDENED)	12
?	VF8334	CAPSCREW - 3/4" - 10NC X 2 3/4"	6
?	TR4735	LOCKWASHER - 3/4"	6
?	TR8960	NUT - 3/4" - 10NC	6
?	ED9302	COVER, DECK ACCESS	1
?	VC8762	CAPSCREW - 3/8" - 16NC X 1 1/2"	6
?	TR4436	FLAT WASHER - 3/8"	6
?	TC1231	LOCKWASHER - 3/8"	6
?	ED6393	ADAPTOR, LADDER	1
?	C1601	CAPSCREW - 3/8" - 16NC X 1 1/2"	6
?	WA4726	FLAT WASHER - 3/8" (HARDENED)	6
?	C0312	LOCKWASHER - 3/8"	6
?	EC7645	ADAPTOR, LADDER	1
?	ED5935	DECK, R.H.	1
?	TR4735	LOCKWASHER - 3/4"	8
?	VF8334	CAPSCREW - 3/4" - 10NC X 2 3/4"	8
?	WA4730	FLAT WASHER - 3/4" (HARDENED)	16
?	TR8960	NUT - 3/4" - 10NC	8

Komatsu AFE50-G/H 830E S/N A30570-A30573, A30575-A30583 & A30586-A30588 LOS PELAMBRES parts catalog PDF

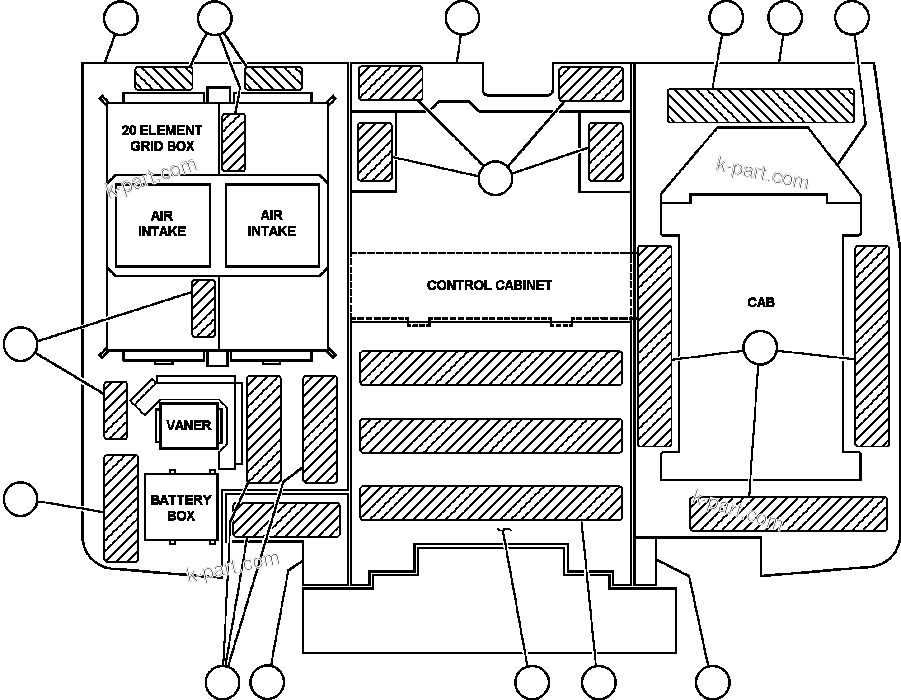

DECK SECTIONS & SAFETY WALK (41470) in AFE50-G/H 830E S/N A30570-A30573, A30575-A30583 & A30586-A30588 LOS PELAMBRES. Diagram image and parts list.
