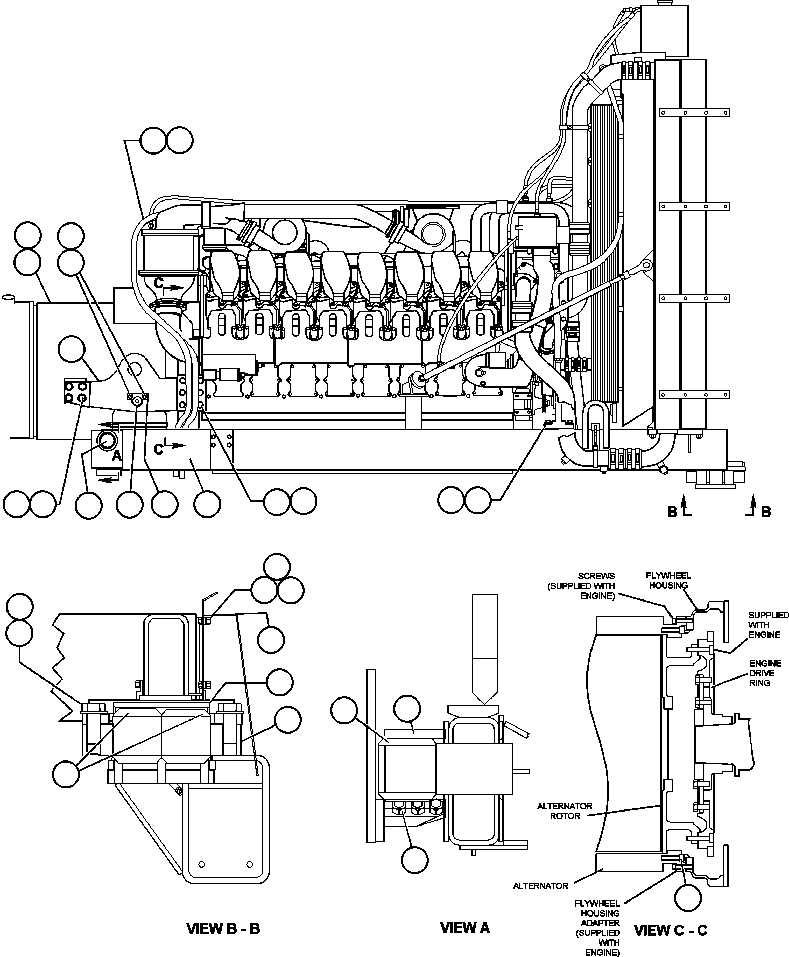

AFE50-G/H 830E S/N A30570-A30573, A30575-A30583 & A30586-A30588 LOS PELAMBRES

27 26 2 9 1 8 5 24 23 7 6 4 3 10 25 11 12 22 20 21 18 17 19 15 13 12 16 12 14 2

#	Part Number	Partname	Quantity	Reference
1	PC0153	ALTERNATOR/BLOWER (SEE FIG 64128A)	1	64128A
2	EG6890	ADAPTOR ASSEMBLY	1
2	TH7533	CAPSCREW - 5/8" - 11NC X 2 1/2"	16
2	EG6885	SHIM	4
2	EG6886	SHIM	4
2	TM3466	SHIM	4
2	TM3468	SHIM	4
3	D1784	CAPSCREW - 1" - 8NC X 2 1/4"	8
4	C1544	LOCKWASHER - 1"	8
5	EH3551	CRADLE - L.H.	1
5	EH3552	CRADLE - R.H.	1
6	MM0071	CAPSCREW - M16 X 2.00 X 45	12
7	MM0474	LOCKWASHER - M16	12
8	VW2236	S/S HALF DOG	4
9	E5222	NUT, JAM	4
10	TN1018	PLATE, RETAINER	2
11	TN1019	PIN	2
11	PB4177	RACE, INNER	2
12	VM3891	BUSHING, RUBBER	4
13	VM6531	CAP, ENGINE MOUNTING	2
13	E4477	CAPSCREW - 3/4" - 10NC X 1.34	12
14	C1645	CAPSCREW - 3/4" - 10NC X 2 1/4"	6
15	TY8058	PIVOT	1
16	TY8055	PIN, PIVOT	1
17	WA0366	FLAT WASHER - 1 1/4" (HARDENED)	2
18	C5542	CAPSCREW - 1 1/4" - 7NC X 3"	2
19	EB8444	COVER	1
20	C0312	LOCKWASHER - 3/8"	4
21	C1601	CAPSCREW - 3/8" - 16NC X 3/4"	4
22	WA4726	FLAT WASHER - 3/8"	4
23	MM0075	CAPSCREW - M20 X 2.50 X 60	6
24	MM0475	LOCKWASHER - M20	6
25	EH2574	FRAME, SUB	1
26	EG8717	HOSE	2
27	VL6197	CLAMP	2
NS\|36		NOTE: NS = NOT SHOWN	-1
NS\|37	HA5712	HOSE - AIR COMPRESSOR TO TANK	1
NS\|38	WB0454	ADAPTOR - COMPRESSOR TO AIR GOVERNOR HOSE	1
NS\|39	HA0241	HOSE - AIR GOVERNOR TO AIR COMPRESSOR	1
NS\|40	BF3914	ELEMENT, LUBE OIL FILTER	4
NS\|41	BF4162	ELEMENT, FUEL FILTER	2
