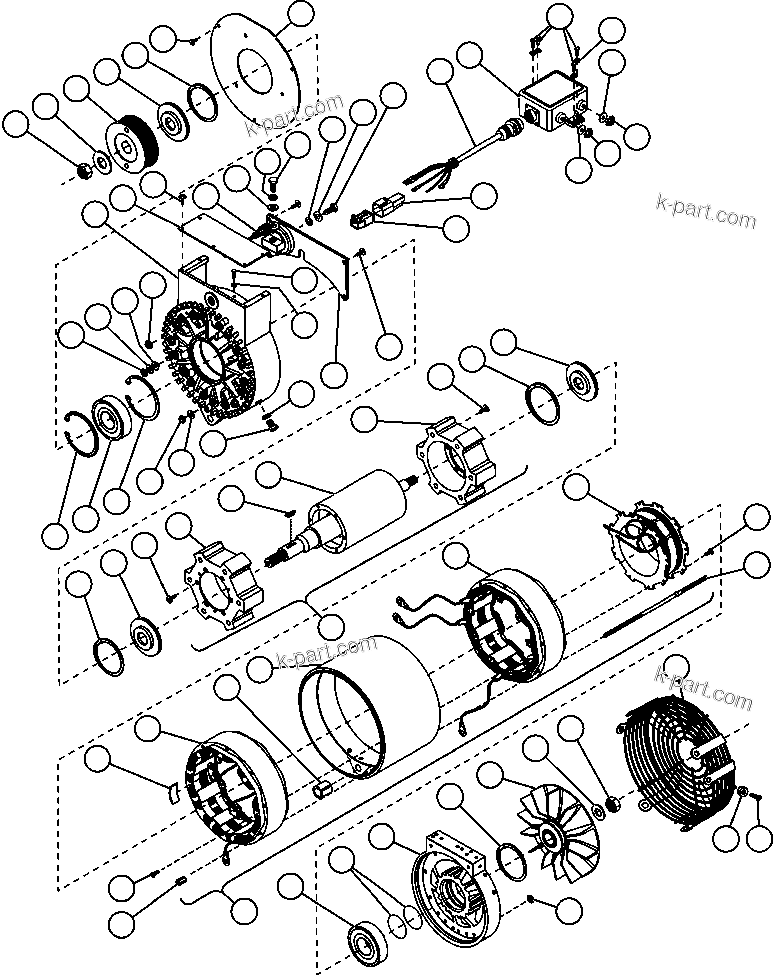

BATTERY CHARGING ALTERNATOR (XA3319) | AFE50-CZ 830E S/N A30886 I.O.C.C.

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-CZ 830E S/N A30886 I.O.C.C.

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	BF4962	LOCKNUT - 5/8" - 18NF (2)/(3)	1
?	BF4963	WASHER, BELLEVILLE (2)/(3)	1
?		PULLEY (1)	1
?	BF4957	BUSHING, PULLEY	1
?	BF4864	RING, RETAINING (3)	2
?	BF1970	PLATE, COVER	1
?	BF1989	RING, RETAINING - BEVELED (2)/(3)	1
?	BF4865	BEARING, FRONT	1
?	BF1988	RING, RETAINING - BEVELED (2)/(3)	1
?	XA2098	HOUSING, DRIVE END	1
?	XA3295	COVER, CONTROL UNIT	1
?	XA3302	SWITCH, THERMAL	1
?	XA2113	CAPSCREW - 1/2" - 13NC X 1" (2)/(3)	1
?	XA3312	LOCKWASHER - 1/2" (3)	1
?	XA3313	FLAT WASHER - 1/2" (3)	1
?	XA0188	COVER, STUD ASSEMBLY	1
?	BF4967	CAPSCREW - M12 X 1.75 X 25 (2)/(3)	1
?	BF4966	LOCKWASHER - M12 (2)/(3)	1
?	BF1996	FLAT WASHER - M12 (2)/(3)	1
?	XA3601	SHELL, CONNECTOR - MALE	1
?	XA3602	SHELL, CONNECTOR - FEMALE	1
?	XA2130	HARNESS	1
?	XA2112	SCREW - #8 - 32NC X 3/8" (2)/(3)	15
?	XA2122	JAM NUT - 1/4" - 28NF (2)/(3)	18
?	XA2121	FLAT WASHER - 1/4" (2)/(3)	12
?	XA2120	INSULATOR (3)	12
?	BF2002	LOCKNUT - #8 - 32NC (2)/(3)/(4)	18
?	BF4973	FLAT WASHER - 1/4" (2)/(3)	6
?	BF4969	CAPSCREW - M10 X 1.50 X 20 (2)/(3)	2
?	BF4968	LOCKWASHER - M10 (2)/(3)	2
?	BF4980	LOCKWASHER - 3/8" (2)/(3)	1
?	BF4979	CAPSCREW - M10 X 1.40 X 20 (2)/(3)	1
?	XA2109	REGULATOR	1
?	XA2117	LOCKNUT - M6 X 1.00 (2)/(3)	2
?	XA2116	WASHER, BELLEVILLE (2)/(3)	1
?	BF4970	SCREW, HEX HEAD - M5 X 0.8 X 12 (2)/(3)	4
?	XA2114	WASHER, BELLEVILLE (3)	2
?	XA2118	WASHER, BELLEVILLE (2)/(3)	2
?	XA2115	NUT - M5 X 0.8 (2)/(3)	1
?	BF4860	BUSHING, PULLEY	1
?	XA2099	SHAFT & CORE, ROTOR ASSEMBLY	1
?	BF3719	CAPSCREW - #10 - 32NF X 1/2" (2)/(3)	12
?	XA2100	ROTOR ASSEMBLY	2
?	XA2101	SHAFT & CORE ASSEMBLY	1
?	BF1999	KEY, WOODRUFF - 5/32" X 3/4" (2)/(3)	1
?	XA2102	RING, CARRIER	1
?	XA2104	FIELD COIL ASSEMBLY	1
?	BF1981	BUSHING, TENSION	1
?		SHELL (2)	1
?	XA2105	STATOR, DRIVE END	1
?	XA2106	STATOR, ANTI-DRIVE END	1
?	BF3723	NUT - #8 - 32NC (2)/(3)/(5)	9
?	BF4978	WEDGE, STATOR (5)	6
?	XA3304	COIL, FIELD	1
?	BF3722	SCREW, PAN HEAD - #8 - 32NC X 3/	16
?	BF1980	STUD - #8 - 32NC X 8 5/8"	9
?	XA2108	BEARING, ANTI-DRIVE END	1
?	XA2107	HOUSING, ANTI-DRIVE END	1
?	XA2110	O-RING (3)	2
?	XA2096	FAN	1
?	XA2103	RING, SPIRAL (3)	2
?	BF4975	WASHER, BELLEVILLE (2)/(3)	1
?	BF4976	NUT - M16 X 1.50 (2)/(3)	1
?	XA2097	GUARD, FAN	1
?	BF4977	SCREW - M5 X 0.8 X 25 (2)/(3)	6
?	XA2119	GROMMET	6
?		NOTE: (1) SUPPLIED WITH ENGINE.	-1
?		(2) NOT SERVICED SEPARATELY.	-1
?		(3) INCLUDED IN XA3306 SMALL GOODS PACKAGE.	-1
?		(4) ALSO INCLUDED IN XA2107 ANTI-DRIVE END HOUSING.	-1
?		(5) ALSO INCLUDED IN XA2105 DRIVE END STATOR &	-1
?		XA2106 ANTI-DRIVE END STATOR.	-1
