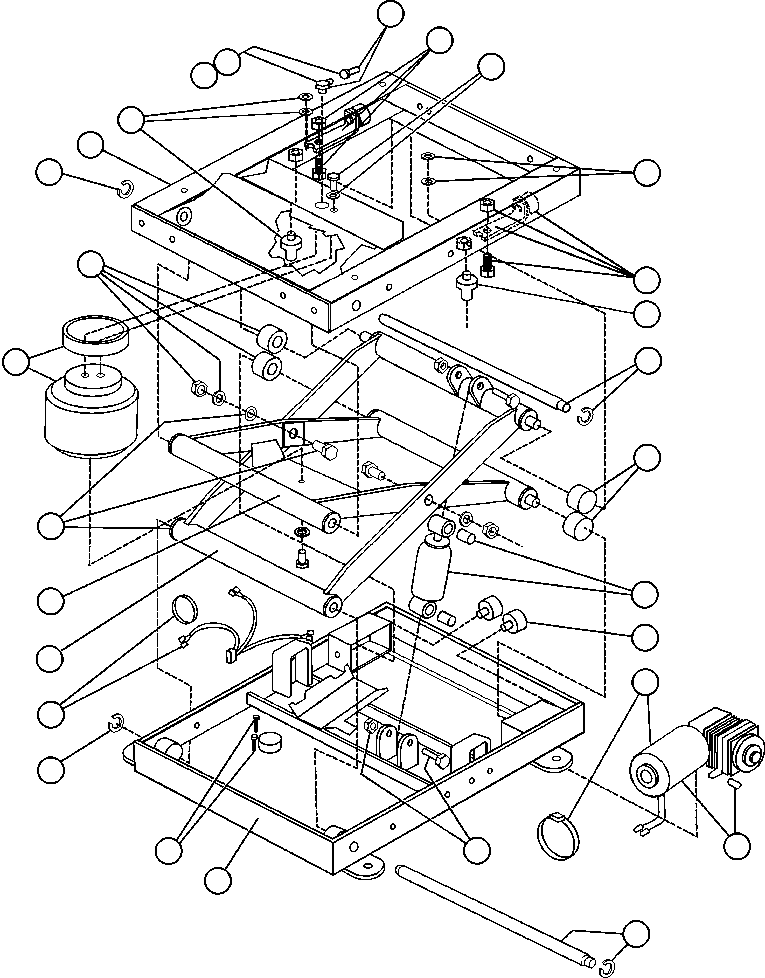

OPERATOR'S SEAT ASSEMBLY - 5 (EJ8295) | AFE50-CX 830E S/N A30871 I.O.C.C.

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-CX 830E S/N A30871 I.O.C.C.

4 11 3 4 7 2 1 6 2 2 11 2 6 4 2 2 5 10 2 9 7 7 6 3 5 7 8 6

#	Part Number	Partname	Quantity
0	XA2238	SEAT SUSPENSION ASSEMBLY	1
1		FRAME, UPPER (1)	1
2	XA2247	KIT, HARDWARE	1
2		ROLLER (1)	4
2		BOLT, SHOULDER (1)	2
2		WASHER, SPLITLOCK (1)	2
2		NUT, HEX (1)	2
2		BUSHING (1)	4
2		BUSHING (1)	2
2	BF0478	KIT, BUMPER	1
2		BUMPER, UP (1)/(5)	2
2		BUMPER, DOWN (1)	2
2		WASHER, SPLITLOCK (1)	2
2		NUT, HEX (1)	2
3	VE8721	KIT, AIR COMPRESSOR	1
3		COMPRESSOR, AIR (1)/(2)	1
3	VE8744	ELBOW (2)	1
3	VE6664	CAP (2)	1
3	VE8874	CLAMP	4
4	VE8724	KIT, AIR SPRING	1
4		SPRING, AIR (1)	1
4	VE8744	ELBOW	1
4	VE6664	CAP	1
4	VE8875	CAPSCREW - M8 X 16 (5)	2
4		WASHER (1)	2
5	BF0694	KIT, SHOCK ABSORBER	1
5	BF0697	ABSORBER, SHOCK	1
5		CAPSCREW (1)	2
5		NUT (1)	2
5		BUSHING (1)	2
6	BF0477	KIT, AXLE	1
6		SHAFT, LOWER (1)	1
6		AXLE, UPPER (1)	1
6	VE4582	SNAP RING	4
7	BF0091	KIT, COMPRESSOR/RELAY	1
7		COMPRESSOR, AIR (1)/(3)	1
7	VE8744	ELBOW (3)	1
7	VE6664	CAP (3)	1
7		RELAY (1)	1
7	BF0503	HARNESS	1
7		CLAMP (1)	1
7		SCREW (1)	1
8		FRAME, LOWER (1)	1
9		SCISSOR, OUTER (1)	1
10		SCISSOR, INNER (1)	1
11	BF0695	KIT, BUMPER	1
11		BRACKET (1)	2
11		BUMPER, UP (1)/(6)	2
11	VE8875	CAPSCREW - M8 X 16 (4)	2
11		LOCKNUT (1)	2
NS\|51		NOTE: (1) NOT SERVICED SEPARATELY.	-1
NS\|52	BF0091	(2) ALSO INCLUDED IN BF0091 COMPRESSOR/RELAY KIT.	-1
NS\|53	VE8721	(3) ALSO INCLUDED IN VE8721 AIR COMPRESSOR KIT.	-1
NS\|54	VE8724	(4) ALSO INCLUDED IN VE8724 AIR SPRING KIT.	-1
NS\|55	BF0695	(5) ALSO INCLUDED IN BF0695 BUMPER KIT.	-1
NS\|56	BF0478	(6) ALSO INCLUDED IN BF0478 BUMPER KIT.	-1
