AFE50-CP 830E S/N A30842-A30844 ANTELOPE COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	SP8417	FLAT WASHER - 1/4"	4
?	DC3584	LOCKWASHER - 1/4"	4
?	MM0176	NUT, HEX - M6 X 1.00	4
?	EG7505	JUNCTION BOX ASSEMBLY, PLM III (SEE INDEX)	1	60532
?	WB0983	GRIP, CORD	1
?	VZ2691	LOCKNUT, CONDULET	1
?	EK7638	HARNESS, PLM III CAB/JUNCTION BOX	1
?	TC1565	CLAMP, VINYL - 15/16" I.D.	5
?	MM0471	LOCKWASHER - M10	3
?	MM0461	FLAT WASHER - M10	3
?	MM0178	NUT, HEX - M10 X 1.50	3
?	WA5460	CLAMP, HEAVY DUTY	1
?	MM0580	CAPSCREW - M6 X 1.00 X 14	3
?	MM0703	FLAT WASHER - M8	6
?	VN9907	CLAMP, VINYL - 5/8" I.D.	3
?	MM0702	FLAT WASHER - M6	1
?	VN7121	MACHINE SCREW - #10 - 24NC X 1/2"	1
?	EJ4037	PLATE, CONNECTOR HOLE COVER	1
?	PB9829	SCREW, PANEL - M6 X 1.00 X 16	12
?	SM6073	PLATE, CONNECTOR MOUNTING	1
?	SM6066	COVER, PLM III BENT PLATE	1
?	SM6068	PLATE, PLM III MOUNTING	1
?	MM0574	NUT, WELD - M6 X 1.00	2
?	MM0401	CAPSCREW - M8 X 1.25 X 90	4
?	MM0016	CAPSCREW - M8 X 1.25 X 16	2
?	MM0460	FLAT WASHER - M8	2
?	EK7639	ATTENUATOR ASSEMBLY	1
?	WA5641	MACHINE SCREW - #4 - 40NC X 3/8"	4
?	VD7129	LOCKWASHER - #4	1
?	SF0542	MACHINE SCREW - #4 - 40NC X 5/16"	1
?	VN9717	NUT - #4 - 40NC	1
?	SM2117	PLATE, NUT CONNECTOR	1
?	PB9862	CAP, PROTECTIVE METAL	1
?	EJ3060	PAYLOAD METER III ASSEMBLY	1
?	VC8762	CAPSCREW - 3/8" - 16NC X 1 1/2" (G5) (ZINC)	7
?	TR4436	FLAT WASHER - 3/8"	7
?	TC1231	LOCKWASHER - 3/8"	7
?	SM5049	NUT, SPRING - 3/8" - 16NC	4
?	EJ9252	ADAPTER, HARNESS	1
?	VZ1368	CORD GRIP	1
?	EJ4036	ADAPTER, GRIP CORD	1
?	SM0724	GASKET	1
?	WA5643	MACHINE SCREW	4
?	SM5110	SENSOR, INCLINOMETER	1
?	TC1233	NUT - 3/8" - 16NC	3
?	PB8256	SCREW, LOCK - FEMALE	2

Komatsu AFE50-CP 830E S/N A30842-A30844 ANTELOPE COAL parts catalog PDF

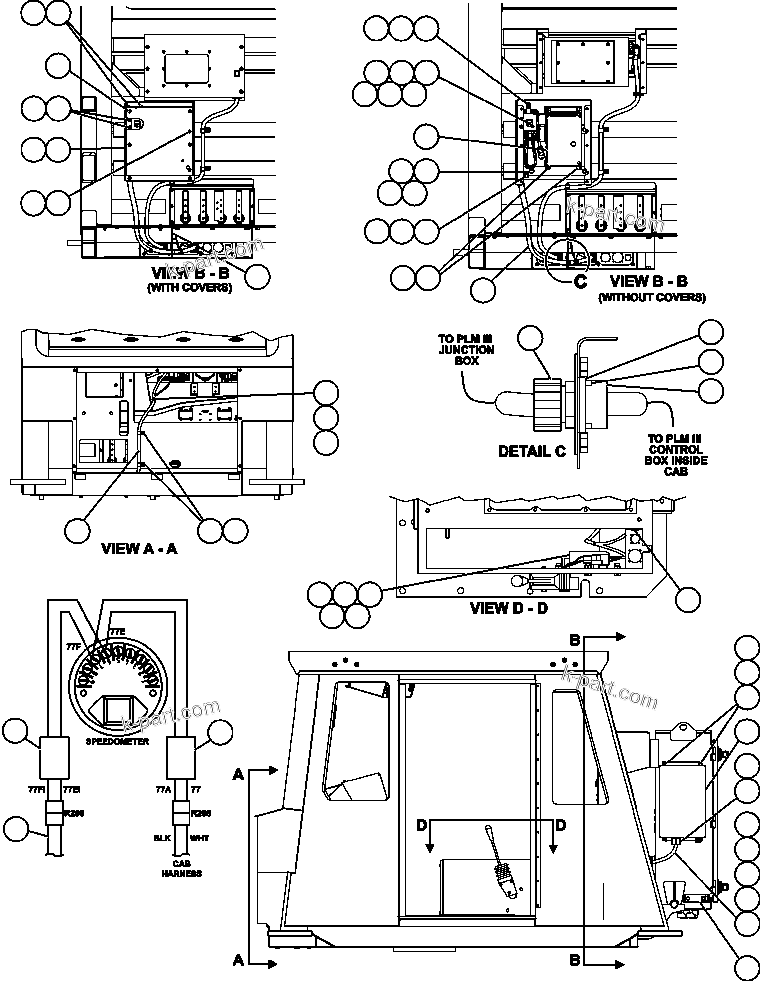

PAYLOAD METER III - CAB (41772) in AFE50-CP 830E S/N A30842-A30844 ANTELOPE COAL. Diagram image and parts list.
