AFE50-CK 830E S/N A30825 APPALACHIAN FUEL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VS0035	LIGHT, DOME	1
?	VZ1912	BULB	1
?	TM9090	INSULATOR	1
?	TG1929	MACHINE SCREW - #10 - 24NC X 1/2"	3
?	DC3101	LOCKWASHER - #10 - 24NC X 3/8"	3
?	VS8193	BOARD, TERMINAL (SEE FIG 64070)	6	64070
?	MM0459	FLAT WASHER - M6	12
?	MM0206	LOCKWASHER - M5	12
?	MM0373	NUT - M5 X 0.8	12
?	WB2652	PLATE, NAME - TB21K	1
?	WB2653	PLATE, NAME - TB21L	1
?	EC7462	PLATE, NAME - DL1	1
?	EF3014	PLATE, NAME - TB32	1
?	EB7413	PLATE, NAME - TB21C	1
?	EB7408	PLATE, NAME - TB21B	1
?	EB7257	PLATE, NAME - TB21A	1
?	EK4993	DIODE BOARD ASSEMBLY, DB1 (SEE FIG 55613)	1	55613
?	MM0469	LOCKWASHER - M6	4
?	MM0459	FLAT WASHER - M6	4
?	MM0007	CAPSCREW - M6 X 1.00 X 12	4
?	EC8825	PLATE, NAME - DB1	1
?	ED3922	RESISTOR	1

Komatsu AFE50-CK 830E S/N A30825 APPALACHIAN FUEL parts catalog PDF

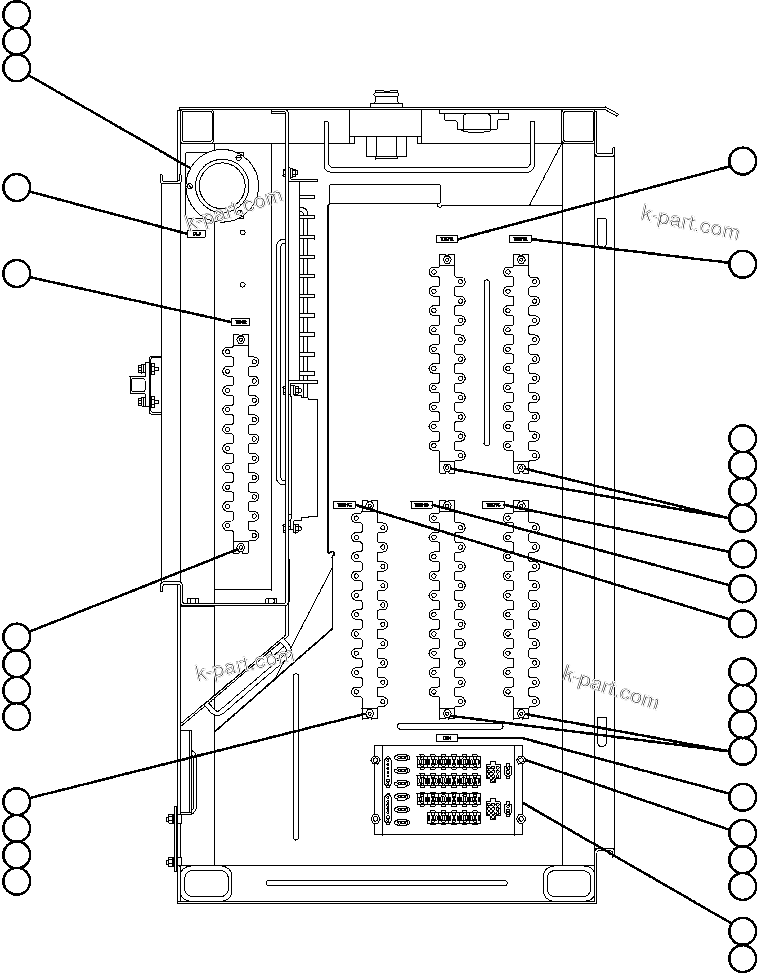

CONTROL CABINET RIGHT DOOR (RIGHT SIDE WALL) (55496) in AFE50-CK 830E S/N A30825 APPALACHIAN FUEL. Diagram image and parts list.
