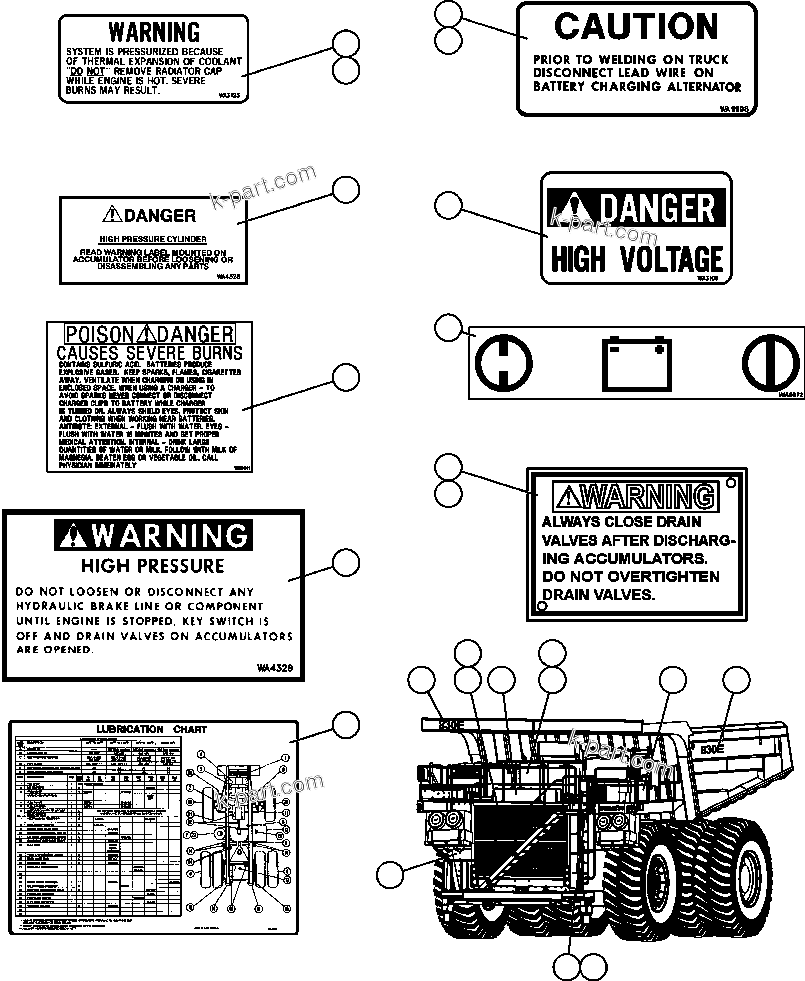

WA3123
|
PLATE, RADIATOR PRESSURE WARNING (TOP OF GRILLE) |
1 |
|
|
|
|
? |
09690-C1120
|
DECAL, KOMATSU (WHITE LETTERING) (TOP FRONT OF GRILLE) |
1 |
|
|
|
|
? |
09690-B1120
|
DECAL, KOMATSU (BLACK LETTERING) (TOP FRONT OF GRILLE) |
1 |
|
|
|
|
? |
09690-C0560
|
DECAL, KOMATSU (WHITE LETTERING) (CENTER OF L.H. DOOR) |
1 |
|
|
|
|
? |
09690-B0560
|
DECAL, KOMATSU (BLACK LETTERING) (CENTER OF L.H. DOOR) |
1 |
|
|
|
|
? |
WB2404
|
DECAL, 830E (WHITE LETTERING) (BOTH SIDES OF BODY) |
2 |
|
|
|
|
? |
WB2451
|
DECAL, 830E (BLACK LETTERING) (BOTH SIDES OF BODY) |
2 |
|
|
|
|
? |
WB2790
|
CHART, LUBE (R.H. UPRIGHT) (1) |
1 |
|
|
|
|
? |
WA9998
|
PLATE, WELDING CAUTION (CONTROL CABINET DOORS) |
2 |
|
|
|
|
? |
WA3108
|
PLATE, DANGER HIGH VOLTAGE (CONTROL CABINET DOOR |
5 |
|
|
|
|
? |
|
AND TOP AND SIDE OF RETARDING GRID) |
-1 |
|
|
|
|
? |
WA6666
|
DECAL, 830E (R.H. FRONT OF CANOPY) |
1 |
|
|
|
|
? |
WB2438
|
DECAL, HIGH-PRESSURE CYLINDER DANGER (INSIDE |
1 |
|
|
|
|
? |
|
HYDRAULIC BRAKE CABINET) |
-1 |
|
|
|
|
? |
WA2441
|
DECAL, POISON DANGER (TOP OF BATTERY BOX) |
1 |
|
|
|
|
? |
WB2691
|
PLATE, HIGH-PRESSURE WARNING (INSIDE HYDRAULIC |
1 |
|
|
|
|
? |
|
BRAKE CABINET) |
-1 |
|
|
|
|
? |
WA6672
|
DECAL, ON/OFF (TOP OF BATTERY DISCONNECT SWITCH BOX) |
1 |
|
|
|
|
? |
WB2447
|
DECAL, DISCHARGING ACCUMULATORS WARNING (ON) |
2 |
|
|
|
|
? |
|
ACCUMULATORS (INSIDE BRAKE CABINET) |
-1 |
|
|
|
|
? |
DC9822
|
DRIVE SCREW - 1/8" LONG |
28 |
|
|
|
|
? |
WA3134
|
DRIVE SCREW - #6 - 3/16" LONG |
4 |
|
|
|
|
? |
|
NOTE: NS = NOT SHOWN |
-1 |
|
|
|
|
? |
WB2446
|
DECAL, NEGATIVE GROUND (TOP OF BATTERY BOX) (2) |
1 |
|
|
|
|
? |
WB2945
|
CHART, GRADE SPEED (L.H. INSIDE FRONT OF CAB) (3) |
1 |
|
|
|
|
? |
|
NOTE: (1) USE CC6049 DRIVE SCREW AS REQUIRED. |
-1 |
|
|
|
|
? |
|
(2) USE R1073 DRIVE SCREW AS REQUIRED. |
-1 |
|
|
|
|
? |
|
(3) USE MM0347 MACHINE SCREW AS REQUIRED. |
