DRIVE AXLE & MOUNTING | AFE50-CK 830E S/N A30825 APPALACHIAN FUEL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-CK 830E S/N A30825 APPALACHIAN FUEL

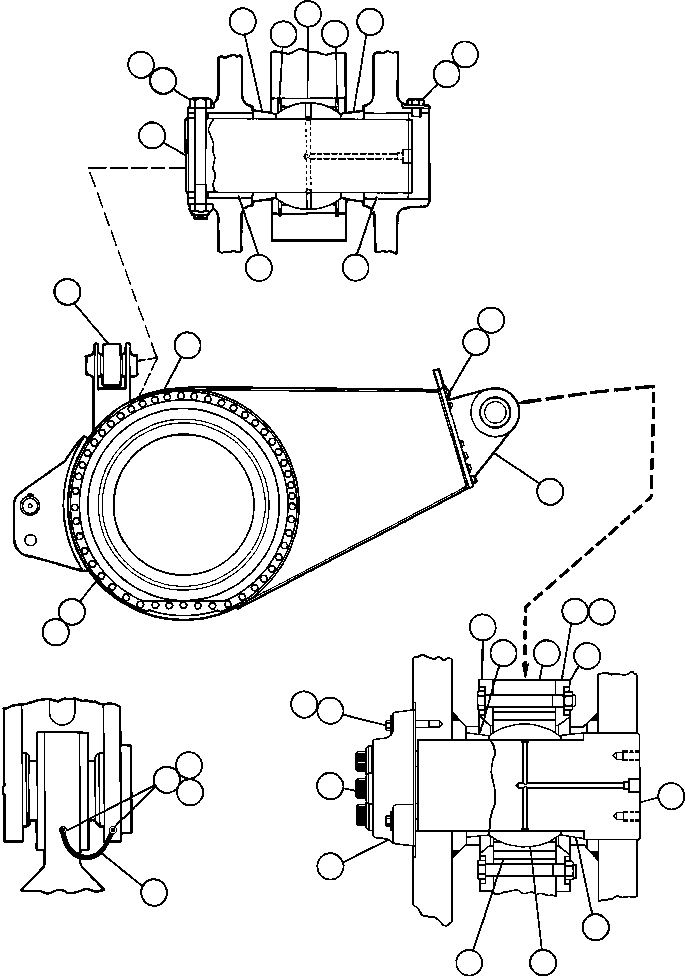

28 26 26 27 27 16 25 18 10 24 23 23 2 4 3 1 5 6 9 10 7 29 8 5 7 18 17 21 20 15 22 11 14 19 8 13 12

#	Part Number	Partname	Quantity
1	EL0082	HOUSING, AXLE	1
2	EC4617	ANTI-SWAY BAR	1
3	VN9106	CAPSCREW - 1 1/4" - 7NC X 3"	24
4	WA0366	FLAT WASHER - 1 1/4" (HARDENED)	24
5	ED6114	EYE, PIVOT (1)	1
6	WA0366	FLAT WASHER - 1 1/4" (HARDENED)	96
7	TY1344	RETAINER, BEARING (3)	2
8	EG3028	SPACER (3)	2
9	WB1154	CAPSCREW - 3/4" - 10NC X 6" (12 PT) (3)	8
10	VL2993	LOCKNUT - 3/4" - 10NC (2)/(3)	10
11	EG3033	PIN, PIVOT (3)	1
12	PC1291	BEARING (1)/(3)	1
13	EG3026	CARRIER, BEARING (1)/(3)	1
14	EG3027	PLATE, LOCKING (3)	1
15	WB1059	CAPSCREW - 1/4" - 7NC X 4 1/2" (12 PT) (3)	4
16	CE2510	CAPSCREW - 5/8" - 11NC X 3/4" (2)	2
17	C1633	CAPSCREW - 5/8" - 11NC X 2 3/4" (3)	3
18	C1541	LOCKWASHER - 5/8" (2)/(3)	4
19	VL4462	WIRE, GROUND	1
20	VH9969	STUD, WELD - 3/8" - 16NC X 3/4"	2
21	C0312	LOCKWASHER - 3/8"	2
22	C1521	NUT - 3/8" - 16NC	2
23	TX8110	SLEEVE (INCLUDED WITH REF. NO. 1) (2)	6
24	EK1326	PIN, BEARING (2)	2
25	VN9211	CAPSCREW - 3/4" - 10NC X 7 1/2" (2)	2
26	TY2734	SPACER (2)	4
27	VN9351	RING, RETAINER (2)	4
28	PB0027	BEARING, SPHERICAL (2)	2
29	VN3270	CAPSCREW - 1 1/4" - 7NC X 5"	96
NS\|30		NOTE: (1) INCLUDED IN EK1626 PIVOT EYE ASSEMBLY.	-1
NS\|31	AK7323	(2) INCLUDED IN AK7323 PAN HARD ROD PIN KIT.	-1
NS\|32	AK4952	(3) INCLUDED IN AK4952 NOSE CONE PIN KIT.	-1
