AFE50-CH 830E S/N A30818-A30819 & A30821 & A30826-A30830 ANTELOPE COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EL3301	FUEL TANK ASSEMBLY W/COVERS	1
?	EL2136	TANK, FUEL	1
?	WA3688	BUSHING, PIPE - 1 1/4" X 1/4"	1
?	HC1851	DRAIN COCK	1
?	D5576	CAP, PIPE	1
?	TA1683	COVER	1
?	TA1691	GASKET	1
?	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	6
?	TC1231	LOCKWASHER - 3/8"	6
?	VN6448	CAPSCREW - 5/16" - 18NC X 3/4"	4
?	SC4174	LOCKWASHER - 5/16"	4
?	S5315	SOCKET HEAD - 1/4" - 28UNF 3A X 3/4"	4
?	SD2583	LOCKWASHER - 1/4"	4
?	VA1732	GASKET	1
?	WB0274	FITTING, ELBOW - 90 DEG	2
?	SD5210	PIPE, BUSHING - 1 1/2" X 1"	1
?	TA1978	VENT ASSEMBLY	1
?	WA4710	CLAMP, HYDRA-ZORB - 1 1/2"	5
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	4
?	C0312	LOCKWASHER - 3/8"	14
?	C1547	FLAT WASHER - 3/8"	6
?	VM5736	CORD GRIP	1
?	VD8023	HOSE	1
?	TY4907	CAP	2
?	C1669	CAPSCREW - 1" - 8NC X 3 1/2"	4
?	C1553	FLAT WASHER - 1"	4
?	HA8067	HOSE	1
?	PB9283	VALVE, BALL - FULL PORT	1
?	WB0474	FITTING, STRAIGHT	2
?	HA2340	HOSE	1
?	WB0446	FITTING, ELBOW - 90 DEG	1
?	WB0669	FITTING, ELBOW - 45 DEG	1
?	EK7337	PLATE, ADAPTER - WIGGINS	1
?	TA1691	GASKET	1
?	C5746	CAPSCREW - 1/4" - 20NC X 3/4"	6
?	DC3584	LOCKWASHER - 1/4"	6
?	TA9974	FLANGE ASSEMBLY	1
?	VW4748	GASKET	1
?	VW6420	REFUELING, CAP	1
?	EG0606	PLATE, COVER	1
?	EH1253	HARNESS, WIRING - FUEL TANK	1
?	PB9513	GAUGE, FUEL	1
?	VW1231	GASKET	1
?	PC0371	TRANSMITTER, FUEL GAUGE	1
?	SC4970	FITTING, PIPE	1
?	VA1733	MOUNT	1
?	TV5194	FITTING, PIPE	1
?	VA1730	SWITCH	1
?	EG0594	FLAP	1
?	EH1830	BAR	1
?	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	2
?	HA3114	HOSE	1
?	HA2896	HOSE	1
?	VL7792	DAMPENER, RUBBER	4
?	VW6877	FLAT WASHER	4
?	VN9179	CAPSCREW - 3/4" - 10NC X 6"	4
?	WA0362	FLAT WASHER - 3/4" (HARDENED)	4
?	C1542	LOCKWASHER - 3/4"	4
?	VL4462	WIRE, GROUND	1
?	TG2562	CLAMP, VINYL - 1/2" I.D.	7
?	TG0545	FLAT WASHER - 3/8" (COPPER)	2
?	C1521	NUT - 3/8" - 16NC	8
?	VN9999	CLAMP, TUBE - 1 1/4" O.D.	4
?	C1540	LOCKWASHER - 1/2"	5
?	C1523	NUT - 1/2" - 13NC	5
?	VN9913	CLAMP, VINYL - 1 1/16" I.D.	1
?	WB0276	FITTING, ELBOW - 90 DEG	1
?	SP4885	BUSHING, PIPE - 1 1/2" X 1 1/4"	1
?	EK7110	TUBE	1

Komatsu AFE50-CH 830E S/N A30818-A30819 & A30821 & A30826-A30830 ANTELOPE COAL parts catalog PDF

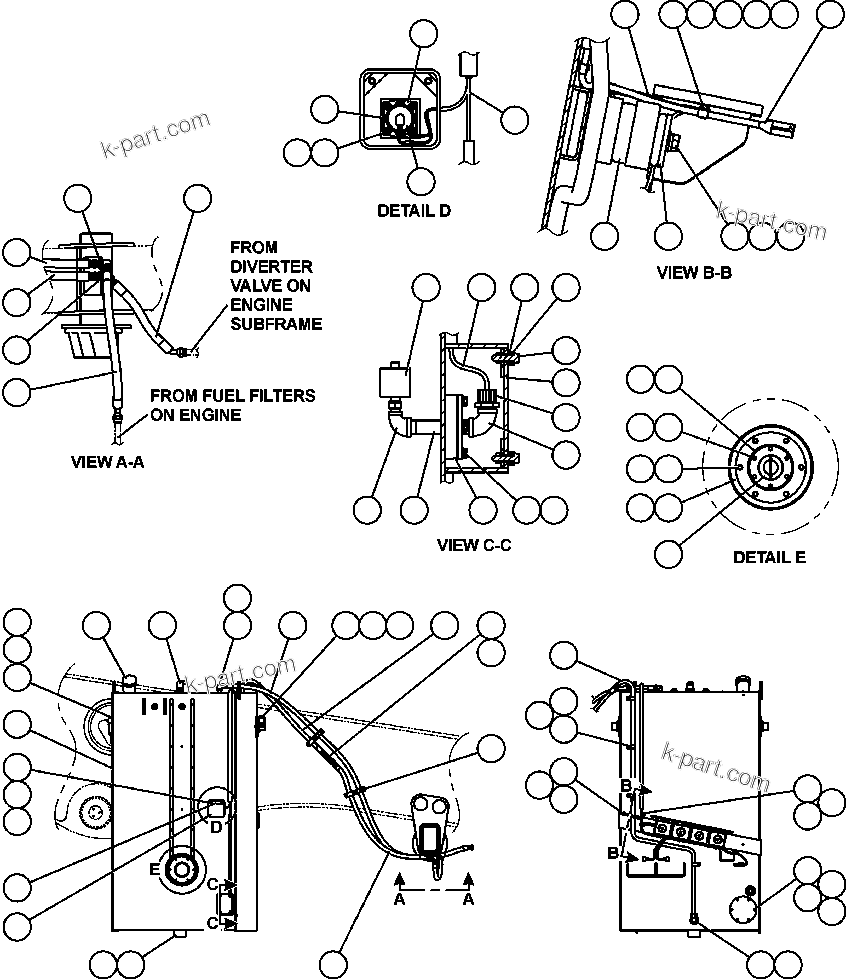

FUEL TANK INSTALLATION & PIPING (41811) in AFE50-CH 830E S/N A30818-A30819 & A30821 & A30826-A30830 ANTELOPE COAL. Diagram image and parts list.
