AFE50-CH 830E S/N A30818-A30819 & A30821 & A30826-A30830 ANTELOPE COAL

6 5 4 3 2 7 1 5 6 2 3 4 8 8 9 9 11 12 13 14 10 15 16 17 18 19 22 20 21 5 23 24 25 2 3 4 5 20 19 5 21 2 3 5 21 29 21 5 3 2 26 53 20 26 5 20 21 21 19 5 16 27 28 19 31 48 49 30 51 32 52 5 5 21 50 4 33 51 52 34 37 36 35 38 39 40 41 42 43 44 47 46 45

#	Part Number	Partname	Quantity	Reference
1	PC0522	OVERCENTER MANIFOLD VALVE ASSEMBLY (SEE INDEX)	1	55589
2	TF3231	CLAMP, SPLIT FLANGE	14
3	WA0187	O-RING	7
4	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	22
5	C1540	LOCKWASHER - 1/2"	48
6	PB8318	ELBOW	2
7	PB6770	COUPLING, QUICK DISCONNECT (MALE)	6
8	TY9636	TUBE	2
9	EH3596	TUBE	2
10	TY8372	TUBE	1
11	HA6251	HOSE	1
12	VL9963	CLAMP, SPLIT FLANGE	2
13	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	4
14	C1541	LOCKWASHER - 5/8"	4
15	H9918	CAPSCREW - 3/8" - 16NC X 4 1/2"	2
16	WA0720	FLAT WASHER - 3/8" (HARDENED)	4
17	C0312	LOCKWASHER - 3/8"	2
18	C1521	NUT - 3/8" - 16NC	2
19	VH6718	CLAMP, SPLIT FLANGE	8
20	WA0232	O-RING	4
21	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	26
22	HA7623	HOSE	1
23	TY9635	TUBE	1
24	HA6432	HOSE	1
25	WA4712	CLAMP, HYDRA-ZORB - 2"	1
26	WB0508	FITTING, ELBOW - 90 DEG	2
27	EB6439	BRACKET	1
28	DC7524	CAPSCREW - 3/8" - 16NC X 7/8"	2
29	EJ2461	MOUNT, PUMP/VALVE	1
30	VG7000	MOUNT, CENTER BONDED	3
31	C1637	CAPSCREW - 5/8" - 11NC X 3 3/4"	3
32	WA0361	FLAT WASHER - 5/8" (HARDENED)	3
33	TD5915	WASHER (SPECIAL)	6
34	C1541	LOCKWASHER - 5/8"	3
35	C1525	NUT - 5/8" - 11NC	3
36	EH1250	TUBE	1
37	WA4709	CLAMP, HYDRA-ZORB - 1 1/4"	2
38	C1663	CAPSCREW - 7/8" - 9NC X 3"	3
39	WA0363	FLAT WASHER - 7/8" (HARDENED)	3
40	C1543	LOCKWASHER - 7/8"	3
41	C1529	NUT - 7/8" - 9NC	3
42	PB7940	FLANGE, COMPANION	1
43	EB3976	WASHER (SPECIAL)	1
44	H0989	JAM NUT - 1" - 14NF	1
45	C1648	CAPSCREW - 3/4" - 10NC X 3"	4
46	WA0362	FLAT WASHER - 3/4" (HARDENED)	4
47	TH3747	LOCKNUT - 3/4" - 10NC	4
48	ED6147	ANGLE	2
49	WA5686	CLAMP, HEAVY DUTY	1
50	EH1554	ANGLE	1
51	WA0360	FLAT WASHER - 1/2" (HARDENED)	8
52	C1523	NUT - 1/2" - 13NC	4
53	EB6440	TUBE	1

Komatsu AFE50-CH 830E S/N A30818-A30819 & A30821 & A30826-A30830 ANTELOPE COAL parts catalog PDF

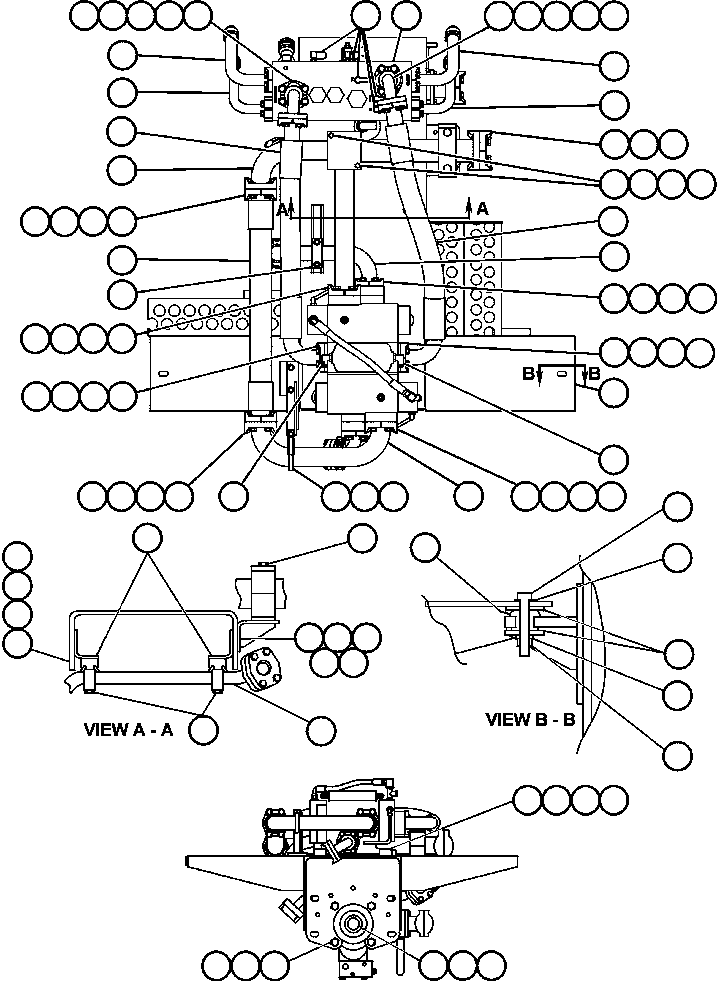

PUMP/VALVE MODULE (41633) in AFE50-CH 830E S/N A30818-A30819 & A30821 & A30826-A30830 ANTELOPE COAL. Diagram image and parts list.
