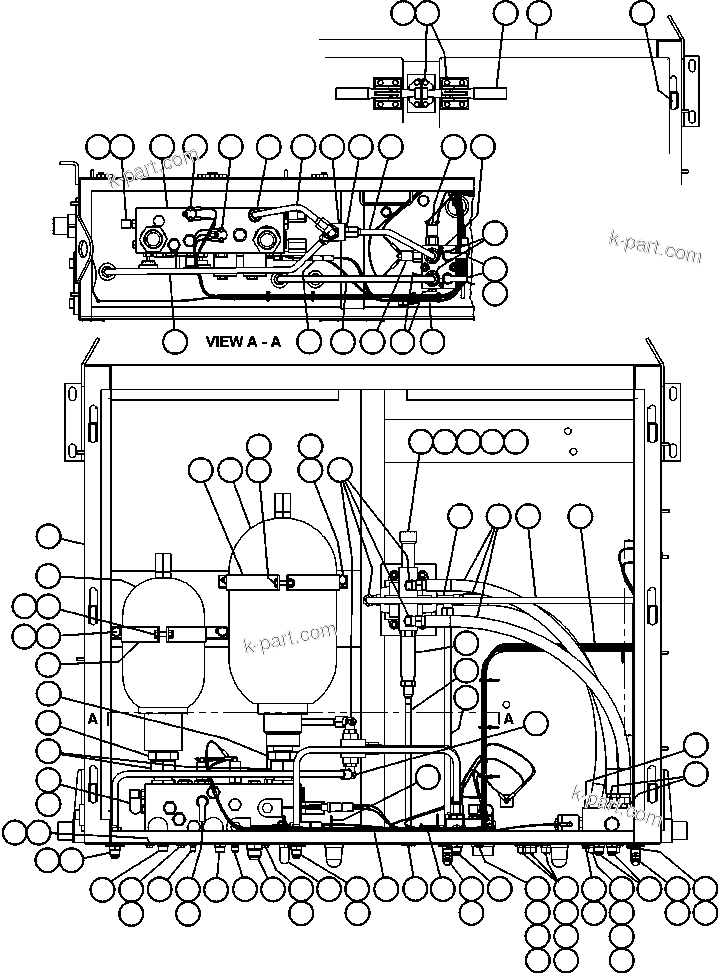

BRAKE CABINET ASSEMBLY (EK2165) | AFE50-CE 830E S/N A30811-A30814 EPSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-CE 830E S/N A30811-A30814 EPSA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EL1238	CABINET	1
?	BF5207	SEAL 3/8" X 3/4" X 50 FT	1
?	PB1006	LATCH/KEEPER SET	4
?	MM0581	CAPSCREW - M6 X 1.00 X 16	16
?	MM0583	CAPSCREW - M6 X 1.00 X 25	8
?	MM0469	LOCKWASHER - M6	24
?	PB7207	HINGE (WELD ON)	6
?	PB7058	ACCUMULATOR - 2.5 GAL (SEE INDEX)	1	40016A
?	TY8075	BRACKET, MOUNTING	1
?	MM0056	CAPSCREW - M10 X 1.50 X 40	8
?	MM0461	FLAT WASHER - M10	8
?	C1605	CAPSCREW - 3/8" - 16NC X 1 3/4"	2
?	TG9225	LOCKNUT, NYLON - 3/8" UNC	2
?	PB6922	VALVE, HOIST PILOT (SEE INDEX)	1	40064
?	MM0471	LOCKWASHER - M10	4
?	MM0178	NUT, HEX - M10 X 1.50	4
?	WB0508	FITTING, ELBOW - 90 DEG	6
?	WB0557	FITTING, TEE	1
?	HA6377	HOSE	3
?	EC6228	TUBE	1
?	PB6895	CONNECTION KIT	1
?	PB6894	CABLE ASSEMBLY	1
?	EG0607	TUBE	1
?	EK2362	HARNESS	1
?	WB0584	FITTING, STRAIGHT	8
?	PC1372	MANIFOLD, HOIST PILOT	1
?		BLOCK, MANIFOLD (NOT SERVICED SEPARATELY)	1
?	VS7009	CARTRIDGE, SOLENOID	1
?	BF5204	VALVE, PILOT OPEN	1
?	XA0202	COIL - 24V	1
?	WB0249	FITTING, ELBOW - 45 DEG	2
?	TF2449	FLAT WASHER - 3/4"	8
?	H8136	CAPSCREW - 1/4" - 20NC X 1/2"	2
?	VN9773	FLAT WASHER - 1/4"	4
?	VC1387	CAPSCREW - 1/2" - 13NC X 1"	5
?	VC7836	FLAT WASHER - 1/2"	10
?	TR5445	LOCKWASHER - 1/2"	5
?	TR6643	NUT - 1/2" - 13NC	5
?	SR6301	CAPSCREW - 1/4" - 20NC X 2 3/4"	2
?	C5774	LOCKWASHER - 1/4"	2
?	C5780	NUT - 1/4" - 20NC	2
?	WB0585	FITTING, STRAIGHT	4
?	VZ3250	DIODE	2
?	SG2103	GROMMET, RUBBER	1
?	VZ0598	TIE, CABLE	9
?	WB0430	FITTING, BULKHEAD - STRAIGHT	2
?	WB0537	FITTING, ELBOW - 45 DEG	1
?	C1601	CAPSCREW - 3/8" - 16NC X 3/4"	4
?	DF3042	FLAT WASHER - 3/8"	4
?	WB0593	FITTING, STRAIGHT	1
?	WB0581	FITTING, STRAIGHT	1
?	PB6528	COUPLING, DIAGNOSTIC	5
?	PB6041	CAP, DUST	5
?	WB0574	FITTING, STRAIGHT	1
?	WA4796	FITTING, STRAIGHT	2
?	WB0602	FITTING, STRAIGHT	1
?	PC0080	MANIFOLD, BRAKE (SEE INDEX)	1	55346
?	PB8308	SWITCH, PRESSURE	1
?	PB6784	SWITCH, PRESSURE	1
?	EF8197	TUBE	1
?	PB6803	VALVE, SHUTTLE	1
?	VE2959	O-RING	2
?	EF8198	TUBE	1
?	PB6992	SWITCH, PRESSURE	1
?	TY7550	BLOCK, JUNCTION	1
?	VM0314	PLUG, O-RING BOSS	2
?	PB6785	SWITCH, PRESSURE	1
?	EF8002	TUBE	1
?	TY9260	TUBE	1
?	PB7057	ACCUMULATOR - 1 GAL (SEE INDEX)	1	40016
?	TY8072	BRACKET, MOUNTING	1
?	WB0601	FITTING, STRAIGHT	1
?		(BRAKE CABINET IS NOT SOLD AS AN ASSEMBLY.	-1
?		ORDER INDIVIDUAL COMPONENT PARTS.)	-1
