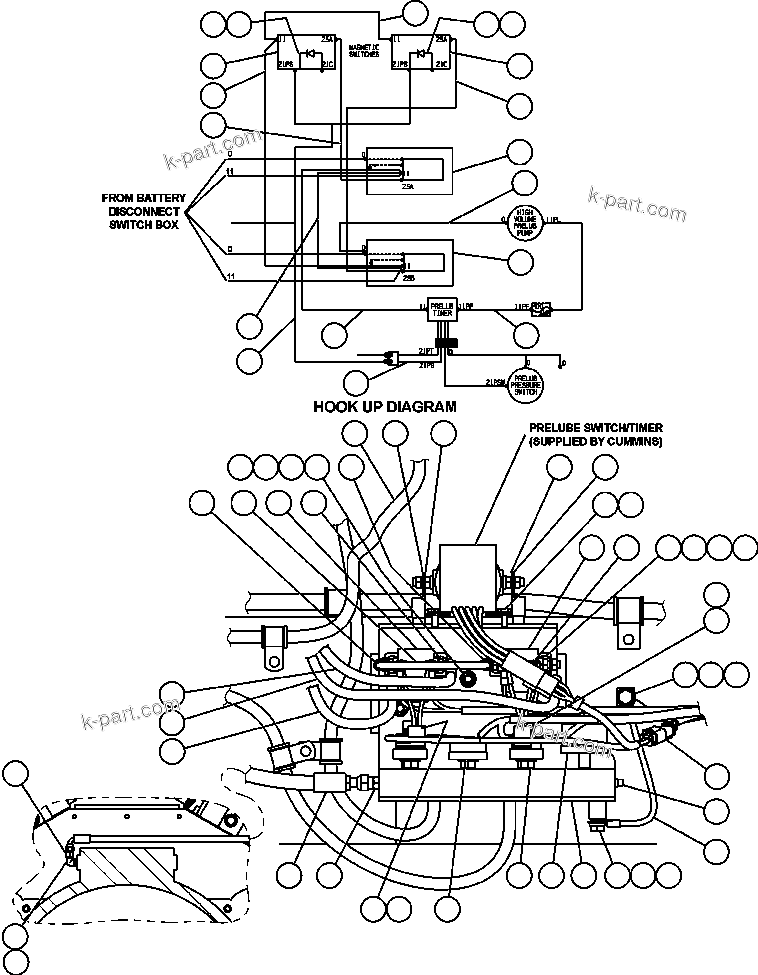

ELECTRIC STARTER INSTL & WIRING | AFE50-CE 830E S/N A30811-A30814 EPSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-CE 830E S/N A30811-A30814 EPSA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	BF4994	STARTER ASSEMBLY (NO PRELUBE)	2
?	09842A0481	DECAL, JUMP START WARNING	2
?	VL6217	SWITCH, MAGNETIC	2
?	VZ3250	DIODE	2
?	EB5678	HOUSING	2
?	CH4118	CABLE	1
?	CH4123	CABLE	1
?	CH4702	CABLE	1
?	CH4116	CABLE	1
?	CH4605	CABLE	1
?	CH4310	CABLE	1
?	CH4440	CABLE	1
?	EJ9542	LINK, FUSABLE	1
?	EJ9246	HARNESS, PRE-LUBE	1
?	EL4305	HARNESS, ENGINE (EXTERNAL)	1
?	TD1548	CAPSCREW - 1/4" - 20NC X 5/8"	8
?	C1546	FLAT WASHER - 1/4"	12
?	C7588	CAPSCREW - 1/4" - 20NC X 1"	6
?	C5774	LOCKWASHER - 1/4"	6
?	C5780	NUT - 1/4" - 20NC	6
?	PC1000	MOUNT, RUBBER	3
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	6
?	C0312	LOCKWASHER - 3/8"	3
?	C1521	NUT - 3/8" - 16NC	3
?	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	2
?	TR4436	FLAT WASHER - 3/8"	2
?	TC1231	LOCKWASHER - 3/8"	2
?	CH4115	CABLE	1
?	C5768	PLUG, PIPE - 1/8"	1
?	EJ2967	BRACKET	1
?	677161R94	SENDER, PRESSURE (ENGINE OIL PRESSURE)	1
?	VF7730	SWITCH, PRESSURE (ENGINE HOURS)	1
?	VZ0589	SWITCH, PRESSURE (STARTER LOCKOUT)	1
?	WB0455	FITTING, STRAIGHT	1
?	HA3083	HOSE	1
?	WB0359	ADAPTER, METRIC	1
?	PC0122	SEAL, ADAPTER	1
?	PC0119	CABLE	1
?	803800519	CAP, TERMINAL	4
?	803802027	CAP, TERMINAL	5
?	80380430	CAP, TERMINAL	3
?		NOTE: NS = NOT SHOWN	-1
?	EJ2963	COVER, PRELUBE SWITCH/TIMER	1
