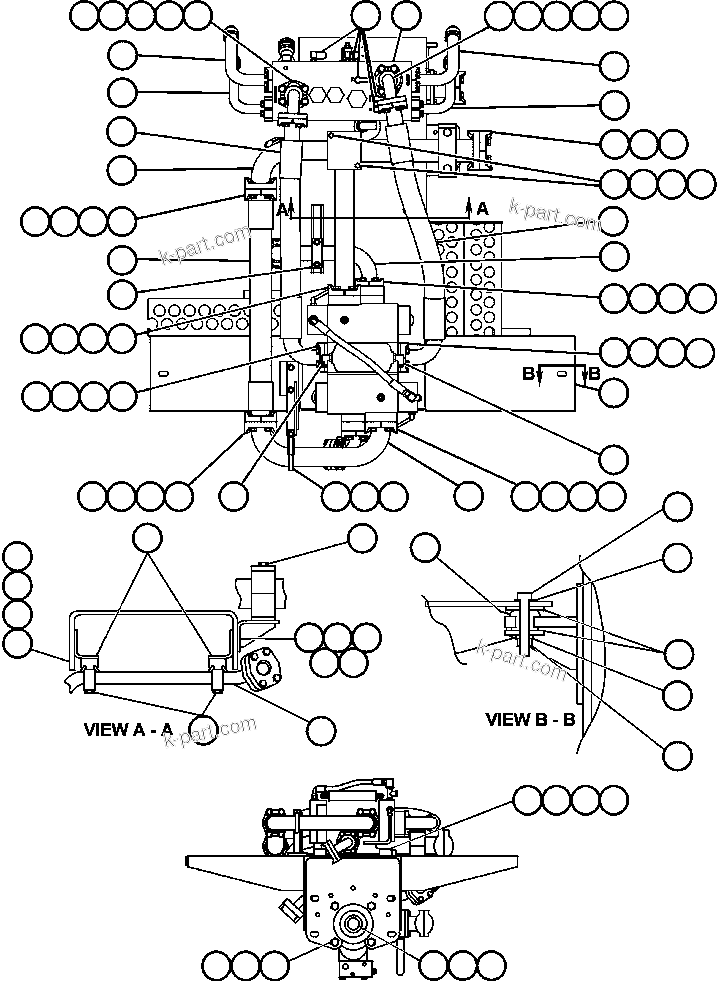

PUMP/VALVE MODULE | AFE50-CE 830E S/N A30811-A30814 EPSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-CE 830E S/N A30811-A30814 EPSA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PC0522	OVERCENTER MANIFOLD VALVE ASSEMBLY (SEE INDEX)	1	55589
?	TF3231	CLAMP, SPLIT FLANGE	14
?	WA0187	O-RING	7
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	22
?	C1540	LOCKWASHER - 1/2"	48
?	PB8318	ELBOW	2
?	PB6770	COUPLING, QUICK DISCONNECT (MALE)	6
?	TY9636	TUBE	2
?	EH3596	TUBE	2
?	TY8372	TUBE	1
?	HA6251	HOSE	1
?	VL9963	CLAMP, SPLIT FLANGE	2
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	4
?	C1541	LOCKWASHER - 5/8"	4
?	H9918	CAPSCREW - 3/8" - 16NC X 4 1/2"	2
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	4
?	C0312	LOCKWASHER - 3/8"	2
?	C1521	NUT - 3/8" - 16NC	2
?	VH6718	CLAMP, SPLIT FLANGE	8
?	WA0232	O-RING	4
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	26
?	HA7623	HOSE	1
?	TY9635	TUBE	1
?	HA6432	HOSE	1
?	WA4712	CLAMP, HYDRA-ZORB - 2"	1
?	WB0508	FITTING, ELBOW - 90 DEG	2
?	EB6439	BRACKET	1
?	DC7524	CAPSCREW - 3/8" - 16NC X 7/8"	2
?	EJ2461	MOUNT, PUMP/VALVE	1
?	VG7000	MOUNT, CENTER BONDED	3
?	C1637	CAPSCREW - 5/8" - 11NC X 3 3/4"	3
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	3
?	TD5915	WASHER (SPECIAL)	6
?	C1541	LOCKWASHER - 5/8"	3
?	C1525	NUT - 5/8" - 11NC	3
?	EH1250	TUBE	1
?	WA4709	CLAMP, HYDRA-ZORB - 1 1/4"	2
?	C1663	CAPSCREW - 7/8" - 9NC X 3"	3
?	WA0363	FLAT WASHER - 7/8" (HARDENED)	3
?	C1543	LOCKWASHER - 7/8"	3
?	C1529	NUT - 7/8" - 9NC	3
?	PB7940	FLANGE, COMPANION	1
?	EB3976	WASHER (SPECIAL)	1
?	H0989	JAM NUT - 1" - 14NF	1
?	C1648	CAPSCREW - 3/4" - 10NC X 3"	4
?	WA0362	FLAT WASHER - 3/4" (HARDENED)	4
?	TH3747	LOCKNUT - 3/4" - 10NC	4
?	ED6147	ANGLE	2
?	WA5686	CLAMP, HEAVY DUTY	1
?	EH1554	ANGLE	1
?	WA0360	FLAT WASHER - 1/2" (HARDENED)	8
?	C1523	NUT - 1/2" - 13NC	4
?	EB6440	TUBE	1
