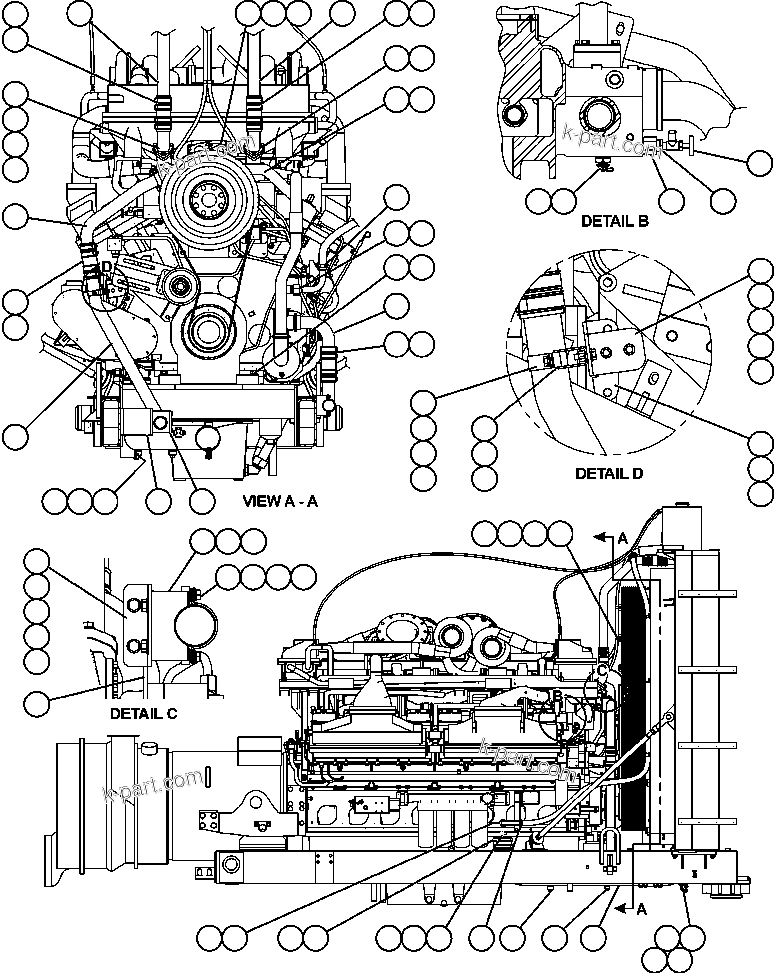

RADIATOR PIPING - 4 | AFE50-CE 830E S/N A30811-A30814 EPSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-CE 830E S/N A30811-A30814 EPSA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	TF6925	CLAMP, VINYL - 3/4" I.D.	3
?	C1602	CAPSCREW - 3/8" - 16NC X 1" (G5)	1
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	1
?	C0312	LOCKWASHER - 3/8"	3
?	PC0818	ADAPTER, METRIC TO JIC	2
?	ED8256	TUBE	2
?	ED0020	HOSE, CONNECTOR	1
?	WB1051	CLAMP, T-BOLT	3
?	VN6280	VALVE, WATER SHUTOFF	1
?	SD5209	PIPE, BUSHING - 3/4" X 3/8"	1
?	PC1780	ADAPTER, CONVERSION	1
?	CD9707	CLAMP, WORM DRIVE	1
?	C5772	PLUG, PIPE - 1"	1
?	R2028	PLUG, PIPE	1
?	EH2018	TUBE	1
?	TR6957	DRAIN COCK	1
?	E2579	NIPPLE	1
?	SF9435	PLUG, MAGNETIC	1
?	EL2377	PLATE, BENT	1
?	MM0607	CAPSCREW - M10 X 1.5 X 35 (ZINC)	2
?	MM0719	NUT - M10 X 1.50	2
?	MM0713	FLAT WASHER - M10 (HARDENED) (ZINC)	10
?	MM0471	LOCKWASHER - M10	13
?	EL2033	PLATE, BENT	1
?	EH3195	SHEET, BENT	2
?	TC1234	CAPSCREW - 3/8" - 16NC X 3/4" (G5) (ZINC)	6
?	TR4436	FLAT WASHER - 3/8"	6
?	TC1231	LOCKWASHER - 3/8"	6
?	EL0668	BRACKET	2
?	MM0606	CAPSCREW - M10 X 1.5 X 30 (ZINC)	15
?	EL2027	PLATE, BENT	1
?	EL2394	BRACKET	1
?	PC0607	SENDER, COOLANT TEMPERATURE	1
?	WB1185	WASHER, METRIC - 22 MM	1
?	55771	PLUG, PIPE - 1/2"	1
?	EH2552	TUBE	2
?	EG6269	HOSE, CONNECTOR	6
?	WB1088	CLAMP, T-BOLT	24
?	EM2020	ELBOW	2
?	EH2022	GASKET	3
?	WB1193	CAPSCREW - M20 X 2.5 X 90 (12 PT)	2
?	MM0475	LOCKWASHER - M20	2
?	EH3567	TUBE	1
?	EL2379	TUBE	1
?	EL2396	TUBE	1
?	WA5460	CLAMP, HEAVY-DUTY	1
?	EH3596	TUBE	1
?	MM0628	CAPSCREW - M12 X 1.75 X 110 (ZINC)	1
?	MM0714	FLAT WASHER - M12 (HARDENED) (ZINC)	2
?		NOTE: NS = NOT SHOWN	-1
?	JG8379	HOSE (WATER SHUTOFF VALVES TO HEATER)	2
