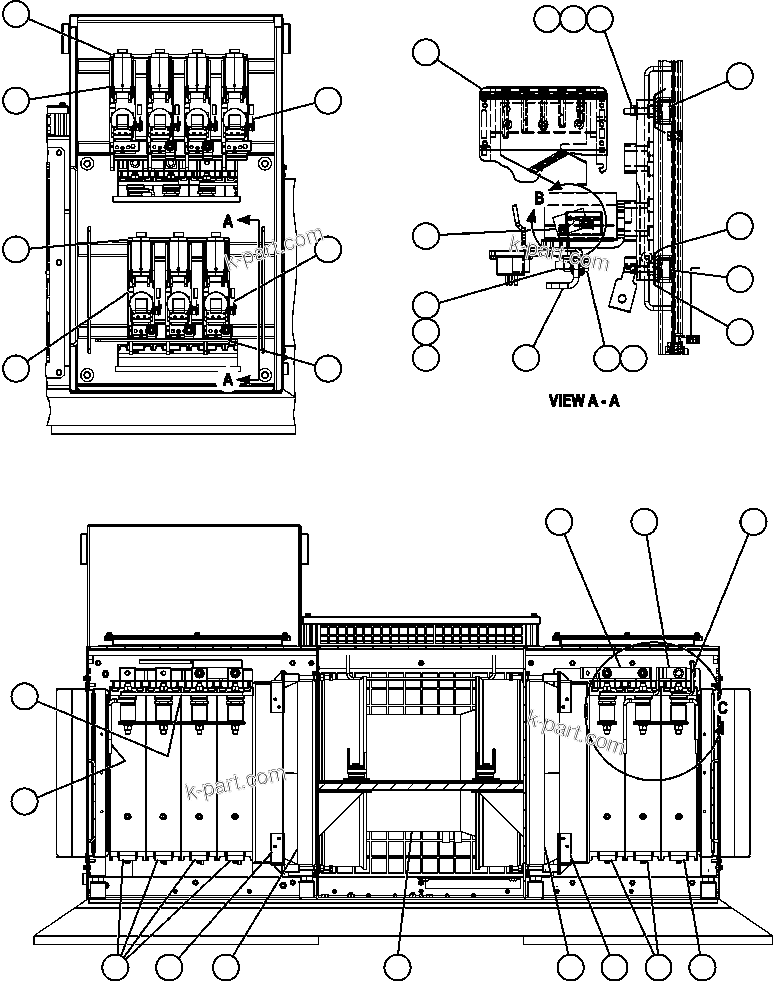

RETARDING GRID ASSEMBLY - 7 STEP -2 (PC1546) | AFE50-CE 830E S/N A30811-A30814 EPSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-CE 830E S/N A30811-A30814 EPSA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	XA2761	SHIELD, INSULATION	4
?	BF4452	MODULE	7
?	GE0032	BUS BAR	5
?	PB6137	CONTACTOR ASSEMBLY	7
?	VE1317	CONTACTOR - GF AND GFR (SEE INDEX)	7	64069
?	VE3530	INTERLOCK (SEE INDEX)	7	64035
?	XA2760	SHIELD, INSULATION	4
?	VE4515	FLAT WASHER - 3/8"	-1
?	VE4687	LOCKWASHER - 3/8"	-1
?	TC1233	NUT - 3/8" - 16NC	-1
?	VW6069	BOLT, INSULATED W/ NUT AND WASHER	-1
?	VE4999	CAPSCREW - 1/2" - 13NC X 2"	-1
?	VE4519	FLAT WASHER - 1/2" (NARROW)	-1
?	VE4699	LOCKWASHER - 1/2"	-1
?	XA2748	BUS BAR - 1/2" THICK	4
?	XA2754	BUS BAR, INSULATED	1
?	XA2755	BUS BAR, INSULATED	2
?	XA2476	GRID, RETARDING	2
?	XA2475	GRID, RETARDING	2
?	GE0021	COLLAR ASSEMBLY	4
?	GE0018	DIFFUSER ASSEMBLY	4
?	GE0019	GASKET	8
?	GE0020	GASKET	8
?	GE0017	MOTOR, BLOWER (SEE INDEX)	1	64000
?	XA2746	BUS BAR, INSULATED	5
?	XA2751	BUS BAR - 3/8" THICK	2
?		(SEE FOLLOWING PAGE FOR DETAILS B AND C.)	-1
