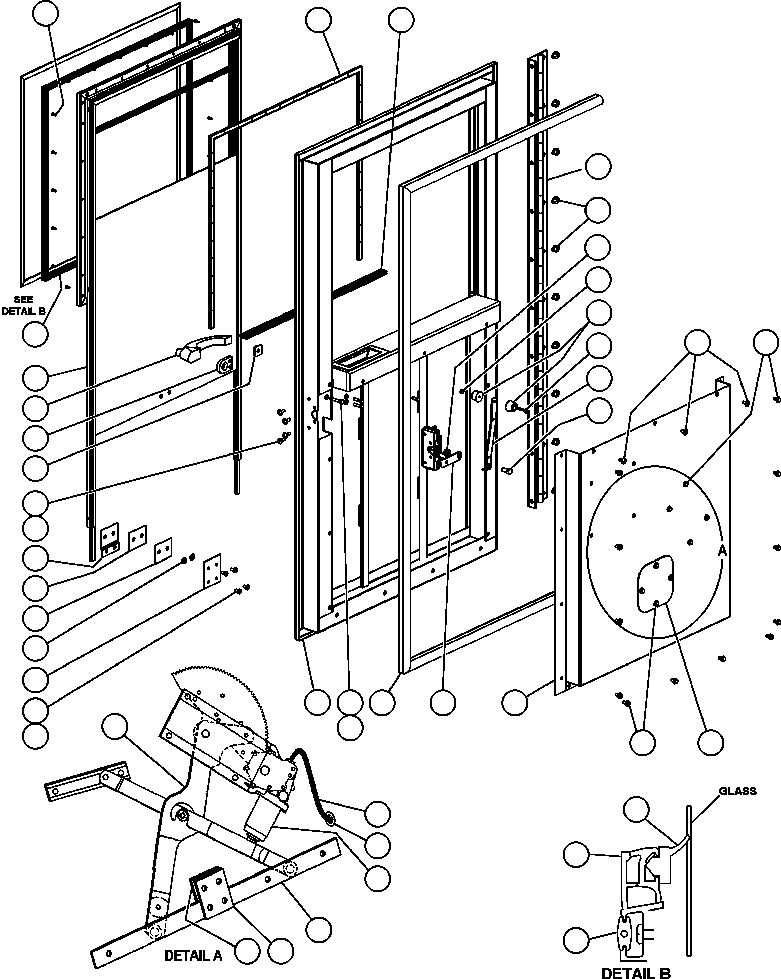

DOOR - R.H. (SM5949) | AFE50-CE 830E S/N A30811-A30814 EPSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-CE 830E S/N A30811-A30814 EPSA

18 19 4 23 24 31 29 27 15 2 1 28 14 26 20 30 21 22 9 10 36 13 12 11 35 6 7 5 25 32 40 33 8 41 1 3 16 38 37 15 34 39 17 36 35

#	Part Number	Partname	Quantity
1	31127R1	CAPSCREW - M6 X 12	12
2	SM0926	SCREW, PANEL - M6 X 1.00	3
3	SM2294	COVER, INNER ACCESS (1)	1
4	SM2405	SEAL, WINDOW (INSIDE)	1
5	SM2548	SEAL, DOOR	1
6	SM6029	FRAME, DOOR - R.H.	1
7	TV6025	CAPSCREW - 1/4" - 20NC X 1 1/2"	1
8	VN2882	JAM NUT - 1/4" - 20NC	1
9	KD0252	MACHINE SCREW	4
10	SD4235	LOCKWASHER - 1/4" (EXTERNAL TOOTH)	4
11	SM2300	BUSHING, NYLON	2
12	SM2261	GASKET	1
13	SM2260	GASKET	1
14	PC0841	WINDOW ASSEMBLY	1
14	SM2265	GLASS	1
14	BF5190	RUN, GLASS - TOP	1
14	BF5191	RUN, GLASS - SIDE	2
15	BF5189	BOTTOM FRAME ASSEMBLY	1
16	BF5194	SEAL, OUTSIDE - RUBBER FLOCK	1
17	BF2744	COVER, SCREW	1
18	SM2406	SCREW, SELF-TAPPING - #6 X 32NC X 3/8"	22
19	2048889R1	TRIM, BULK	-1
20	SM2255	HANDLE, PUSH BUTTON	1
21	SM2258	SPACER, DOOR HANDLE	1
22	SM2257	SPACER, DOOR HANDLE	1
23	SM2544	HINGE, DOOR	1
24	31154R1	CAPSCREW - M8 X 12	10
25	SM2274	LATCH DOOR ASSEMBLY, R.H.	1
26	SM2263	LEVER, DOOR LATCH	1
27	SM2264	KNOB, DOOR LATCH	2
28	SM2354	SCREW - #10 - 24NC	1
29	SM2355	LOCKNUT - #10 - 24NC	1
30	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	1
31	TG9225	LOCKNUT, NYLON - 3/8" UNC	1
32	SM2745	INNER PANEL ASSEMBLY, R.H.	1
32	SM2739	PANEL, INNER - R.H.	1
32	SM5391	INSULATION, PANEL - R.H.	1
33	SM2741	WINDOW REGULATOR ASSEMBLY, R.H.	1
34		MOTOR - R.H. (2)	1
34	XA2020	ADAPTER, HARNESS	1
35	SM2832	BRACKET, WINDOW LIFT (INNER)	1
36	SM2833	BRACKET, WINDOW LIFT (OUTER)	1
37	SL9490	GROMMET, RUBBER	1
38	SM3010	HARNESS, POWER WINDOW	1
39	SM5832	GUIDE, WINDOW	1
40	MM0357	MACHINE SCREW - M6 X 1.00 X 12	4
41	MM0207	LOCKWASHER - M6	4
NS\|48		NOTE: (1) INCLUDED IN SM2745 INNER PANEL ASSEMBLY.	-1
NS\|49		SEE ITEM 32.	-1
NS\|50		(2) NOT SERVICED SEPARATELY.	-1
