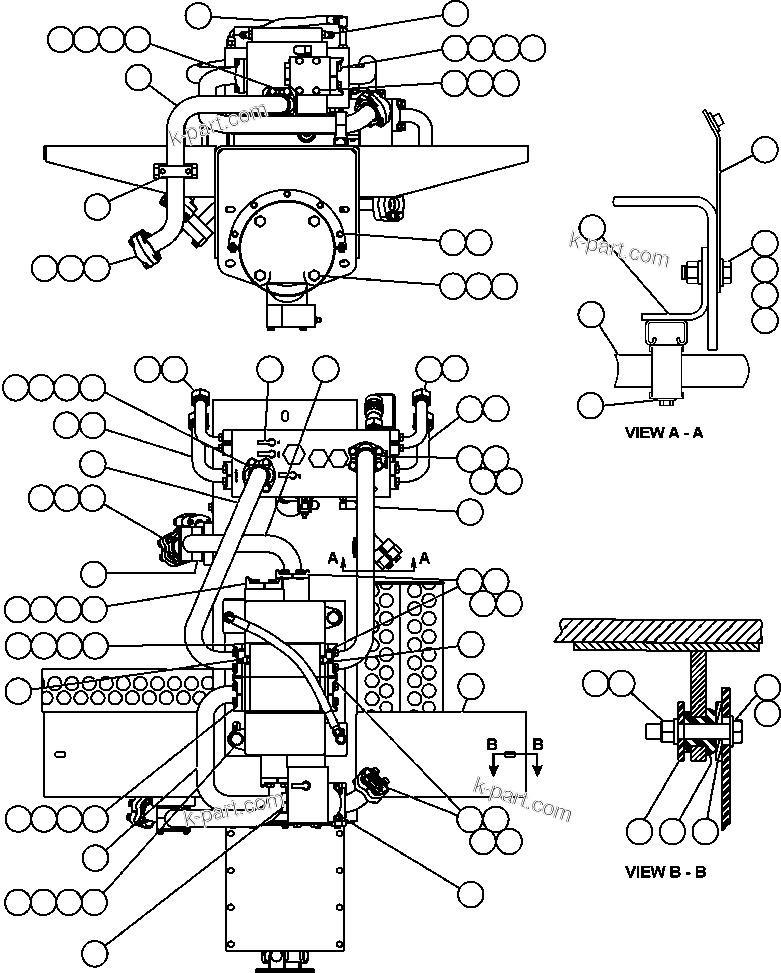

PUMP/HOIST VALVE MODULE | AFE52-J 930E-3 S/N A30336-A30340 KLEMKE

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE52-J 930E-3 S/N A30336-A30340 KLEMKE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EH3596	TUBE	2
?	EH8493	TUBE	1
?	PB6770	COUPLING, MALE QUICK DISCONNECT	5
?	TY9636	TUBE	2
?	TF3231	CLAMP, SPLIT FLANGE	22
?	WA0187	O-RING	8
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	48
?	C1540	LOCKWASHER - 1/2"	60
?	EH8495	TUBE	1
?	WB0508	FITTING, ELBOW - 90 DEG	2
?	EH8896	MOUNT, PUMP/VALVE	1
?	WA4712	CLAMP, HYDRA ZORB - 2"	3
?	WB0604	FITTING, STRAIGHT	1
?	C1663	CAPSCREW - 7/8" - 9NC X 3"	3
?	C1543	LOCKWASHER - 7/8"	3
?	WA0363	FLAT WASHER - 7/8"	3
?	C1529	NUT - 7/8" - 9NC	3
?	EH8492	TUBE	1
?	VH6718	CLAMP, SPLIT FLANGE	4
?	WA0232	O-RING	3
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	4
?	EH8494	TUBE	1
?	HA5698	HOSE	1
?	WB0557	FITTING, TEE	1
?	SR7215	CAPSCREW - 1/2" - 13NC X 7 1/2"	4
?	C1647	CAPSCREW - 3/4" - 10NC X 2 3/4"	4
?	EJ5575	BRACKET, CLAMP	1
?	WA0362	FLAT WASHER - 3/4" (HARDENED)	4
?	TH3747	LOCKNUT - 3/4" - 10NC	4
?	EH8895	TUBE	1
?	ED6147	ANGLE	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	4
?	WA0360	FLAT WASHER - 1/2" (HARDENED)	4
?	C1523	NUT - 1/2" - 13NC	4
?	WA4709	CLAMP, HYDRA ZORB - 1 1/4"	2
?	EH8490	TUBE	1
?	C1637	CAPSCREW - 5/8" - 11NC X 3 3/4"	3
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	3
?	VG7000	MOUNT, CENTER BONDED	3
?	TD5915	FLAT WASHER (SPECIAL)	6
?	C1541	LOCKWASHER - 5/8"	3
?	C1525	NUT - 5/8" - 11NC	3
?	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	5
?	TC1231	LOCKWASHER - 3/8"	5
?	WA2572	FITTING, CAPNUT	2
?	WA2573	FITTING, CAPNUT	2
