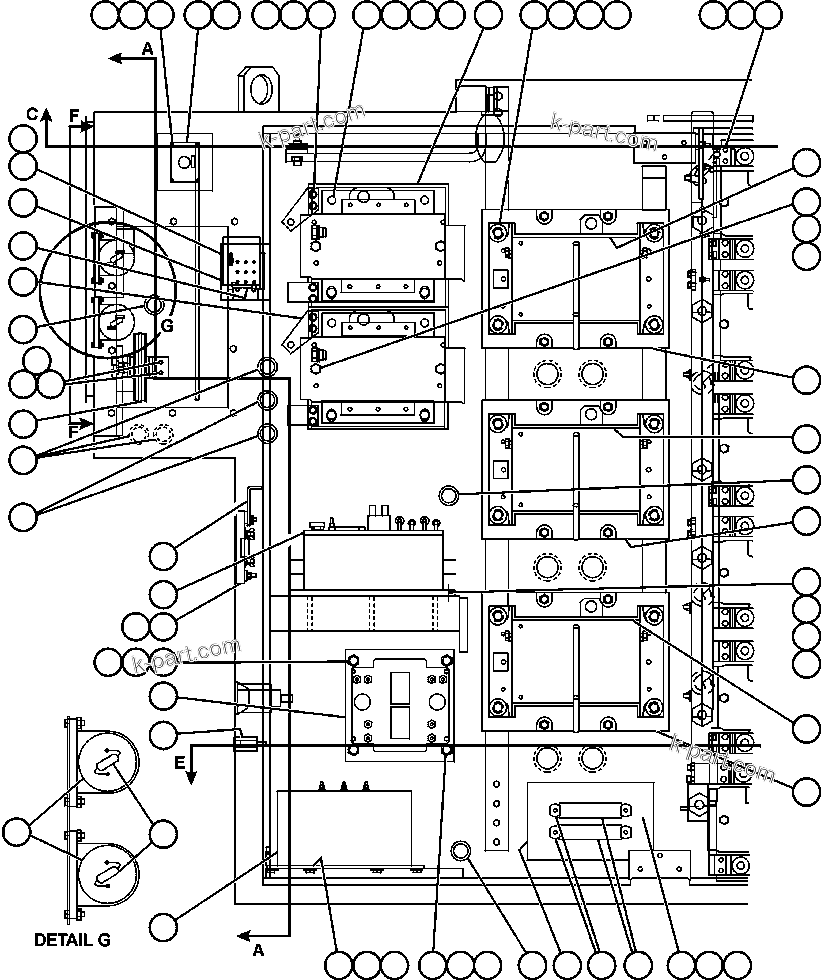

CONTROL CABINET (LEFT FRONT) | AFE52-J 930E-3 S/N A30336-A30340 KLEMKE

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE52-J 930E-3 S/N A30336-A30340 KLEMKE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VE4655	WASHER - #10	-1
?	VE4601	LOCKWASHER - #10	-1
?	SF2755	NUT - #10	-1
?	GE0177	BOARD, PRINTED WIRE	1
?	GE0214	LENS CAP, CLEAR	1
?	VE4516	WASHER - 3/8" (NARROW)	-1
?	VE4687	LOCKWASHER - 3/8"	-1
?	TC1233	NUT, HEX	-1
?	GE0254	STUD	-1
?	VE5169	WASHER	-1
?	VC1390	LOCKWASHER - 5/8" (ZINC)	-1
?	GE0045	NUT, HEX	-1
?	GE1246	BASE ASSEMBLY	1
?	GE0165	RESISTOR - 12 OHM	4
?	GE0166	STEP WASHER	8
?	GE1247	BAR	4
?	GE0862	STUD	12
?	VE4515	WASHER - 3/8"	-1
?	GE0859	RECTIFIER PANEL, IGBT (RU PANEL)	3
?	GE0876	BASE ASSEMBLY	3
?	VE4648	WASHER - 5/16"	-1
?	VE4696	LOCKWASHER - 5/16"	-1
?	VE5013	NUT	-1
?	GE0227	FUSE, HIGH VOLTAGE - 15 AMP	2
?	GE0229	INSULATOR ASSEMBLY	4
?	GE0861	GROMMET	9
?	GE0231	FUSE PANEL	1
?	GE0042	WASHER	4
?	VE4992	CAPSCREW - 5/8" - 11NC X 1 3/4"	2
?	VE4515	WASHER - 3/8"	-1
?	GE0159	PANEL, GATE DRIVER POWER SOURCE	1
?	GE0158	PANEL, GATE DRIVER POWER CONVERTER	1
?	GE0205	INSULATOR ASSEMBLY	6
?	GE0231	FUSE PANEL	1
?	GE0515	BAR, BUS - 3/4" X 2 3/16"	2
?	GE0516	BAR, BUS - 3/4" X 6"	1
?	GE0232	LIMITER, FUSE	1
?	BF3908	SHIELD, GLASTIC	1
?	GE0875	BAR, BUS	2
?	GE0858	A.F.S.E. PANEL (SEE INDEX)	1	64228
?	VE4640	CAPSCREW - 3/8" - 16NC X 1 1/2"	4
?	GE0759	WASHER - 3/8" (HARD)	6
?	VE5762	WASHER - 5/16" (NARROW)	6
?	PB5230	RESISTOR, THYRITE	1
?	VE4519	WASHER - 1/2" (NARROW)	-1
?	VE4699	LOCKWASHER - 1/2"	-1
?	VX0421	CAPSCREW - 1/2" - 13NC X 3 1/4"	-1
?	GE1199	BAR, BUS	2
?	VE5017	SEALER	-1
?	PB4255	MODULE, SUPPRESSION	1
?	VG7043	RELAY (SEE INDEX)	1	64037
?	DC3584	LOCKWASHER - 1/4"	-1
?	TD1549	NUT - 1/4" - 20NC	-1
?	GE0762	CAPACITOR ASSEMBLY	2
?	GE0819	CAPACITOR - 300 VOLT	2
?	GE0761	RESISTOR ASSEMBLY	2
?	GE0820	RESISTOR - 5 WATT/20,000 OHM	2
?		NOTE: NS = NOT SHOWN	-1
?	GE1245	CHOPPER MODULE PANEL (RU PANEL)	1
?		(SEE FOLLOWING PAGES FOR VIEWS A-A; B-B;	-1
?		E-E; F-F & DETAIL "G")	-1
