AFE57-CB 830E-1AC S/N A30340 - A30343 FELIX RESOURCES

34 16 35 23 21 20 33 32 31 30 27 28 29 6 4 6 2 5 26 25 23 22 21 20 8 24 23 22 21 20 52 57 54 18 9 26 53 55 36 1 15 14 13 12 7 9 42 43 44 45 56 23 22 21 20 20 39 40 41 9 42 43 44 46 9 10 11 23 22 21 20 10 18 19 50 3 17 47 49 51 26 38 9 10 19 37 48 20 21 23 35 29 28 27 26

#	Part Number	Partname	Quantity	Reference
1	GE1379	PLUG	8
2	XA3594	BUS BAR	1
3	GE1395	BUS BAR	1
4	GE0594	BUSHING	1
5	PB6137	CONTACTOR ASSEMBLY	1
5	VE3530	INTERLOCK, POSITION SENSOR (SEE INDEX)	1	64035
5	VE1317	CONTACTOR - GF & GFR (SEE INDEX)	1	64069
6	GE0647	CONTACTOR ASSEMBLY - R.P. (SEE INDEX)	2	64227
7	GE1400	BUS BAR	1
8	BF4223	BOLT, INSULATED	2
9	VE4687	LOCKWASHER - 3/8"	-1
10	VE4516	FLAT WASHER - 3/8"	13
11	VE4500	CAPSCREW - 3/8" - 16NC X 1 3/4"	11
12	GE1404	BUS BAR	1
13	GE1392	BUS BAR	2
14	GE1403	BUS BAR	1
15	XA3596	BUS BAR	1
16	GE1402	BUS BAR	1
17	GE1413	BUS BAR	5
18	VE4515	FLAT WASHER - 3/8"	-1
19	GE1420	CAPSCREW - 3/8" - 16NC X 2 1/2"	4
20	VE4699	LOCKWASHER - 1/2"	-1
21	VE4698	NUT - 1/2" - 13NC	-1
22	VE4519	FLAT WASHER - 1/2"	-1
23	VE3030	FLAT WASHER - 1/2"	-1
24	VE5062	CAPSCREW - 1/2" - 13NC	4
25	GE0581	STUD	2
26	PB3348	INSULATOR	26
27	GE1381	FLAT WASHER - 5/16"	-1
28	VE4696	LOCKWASHER - 5/16"	-1
29	TR4731	CAPSCREW - 5/16" - 18NC X 1"	2
30	XA3599	BASE ASSEMBLY	1
31	SP8417	FLAT WASHER - 1/4"	-1
32	DC3584	LOCKWASHER - 1/4"	-1
33	VE5882	CAPSCREW - 1/4" - 20NC X 7/8"	6
34	GE0756	LINK SENSOR	1
35	VE5061	CAPSCREW - 1/2" - 13NC	6
36	XA3722	BRACKET, MOUNTING	6
37	GE1415	BRACKET ASSEMBLY	4
38	GE0579	STUD	12
39	VE4490	FLAT WASHER - 1/2"	-1
40	GE1385	PLATE ASSEMBLY	10
41	VS8440	WASHER	4
42	VE3918	WASHER	-1
43	TC1233	NUT - 3/8" - 16NC	-1
44	WA0720	FLAT WASHER - 3/8"	-1
45	TR4434	CAPSCREW - 3/8" - 16NC X 2"	13
46	VE4640	CAPSCREW - 3/8" - 16NC X 1 1/2"	-1
47	XA4249	BUS BAR	1
48	GE1394	BUS BAR	1
49	GE1396	BUS BAR	1
50	GE1401	BUS BAR	1
51	GE1402	BUS BAR	1
52	BF3904	INSULATION	4
53	XA3143	STUD	8
54	VE4739	CAPSCREW - 3/8" - 16NC X 1"	16
55	XA3723	BRACKET, MOUNTING	6
56	WA0471	CAPSCREW - 1/2" - 13NC X 2 1/4"	1
57	GE0170	SENSOR, AC-DC	12

Komatsu AFE57-CB 830E-1AC S/N A30340 - A30343 FELIX RESOURCES parts catalog PDF

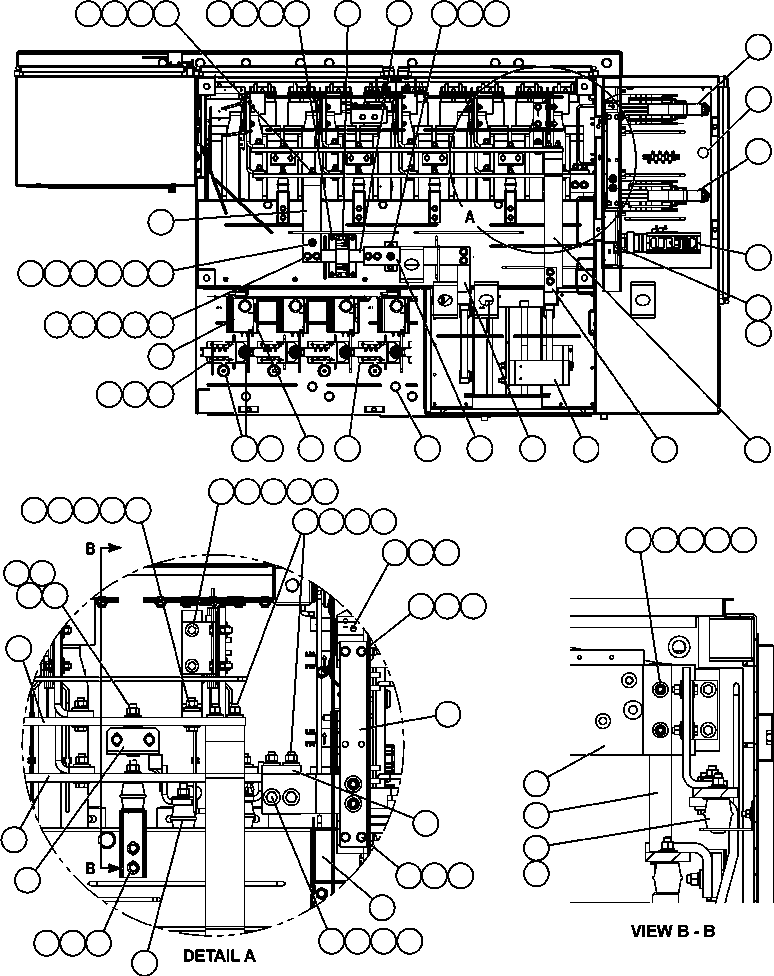

CONTROL CABINET - TOP (PC2752) (64372) in AFE57-CB 830E-1AC S/N A30340 - A30343 FELIX RESOURCES. Diagram image and parts list.
