AFE57-CB 830E-1AC S/N A30340 - A30343 FELIX RESOURCES

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	XA4058	SEAT BELT CUSHION ASSEMBLY	1
?	XA4064	SPACER	1
?	XA4067	SCREW - #10	2
?	XA4059	SUPPORT, SEAT BELT	1
?	XA4075	CAPSCREW - 3/8" - 16NC X 1 1/4"	4
?	XA4070	FLAT WASHER	4
?	XA4069	NUT, CENTERLOCK - 3/8" - 16NC	6
?	XA4063	SEAT BELT, HIGHBACK (3-POINT)	1
?	EM4058	ARM & BRACKET ASSEMBLY - R.H.	1
?	EM4057	ARM & BRACKET ASSEMBLY - L.H.	1
?	EM4063	SWITCH, VALVE - SEAT RAISE/LOWER	1
?	EM4062	BOLT, SHOULDER	4
?	XA4071	FLAT WASHER	4
?	EM4067	NUT, FLANGE - 3/8" - 16NC	4
?	EM4076	CAPSCREW - M12 X 1.75 X 35	1
?	EM4065	FLAT WASHER (HARDENED)	1
?	XA4073	CAPSCREW - M12 X 1.75 X 50	1
?	EM4061	KIT, BELT TETHER	2
?	XA4844	PIN, COTTER	2
?	PB9772	EYEBOLT	2
?	TG3941	JAM NUT (1)	2
?	XA4074	CAPSCREW - 7/16" - 20NC X 1 1/4"	1
?	XA4072	FLAT WASHER	1
?	XA4068	NUT, CENTERLOCK - 7/16" - 20NC	1
?	EM4064	KNOB, RECLINER	1
?	XA4062	SUPPORT PLATE, RETRACTOR	1
?	XA4076	CAPSCREW - 3/8" - 16NC X 7/8"	2
?		NOTE: (1) NOT PART OF SEAT ASSEMBLY.	-1

Komatsu AFE57-CB 830E-1AC S/N A30340 - A30343 FELIX RESOURCES parts catalog PDF

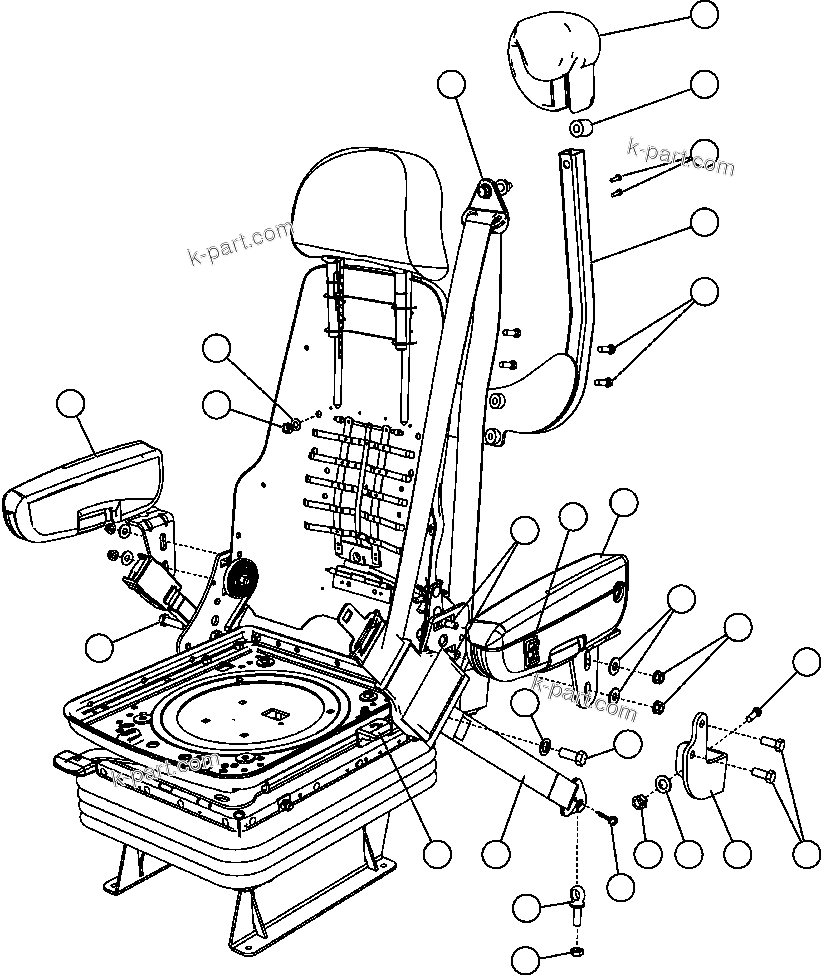

OPERATOR'S SEAT ASSEMBLY 2/2 (PC2730) (42465) in AFE57-CB 830E-1AC S/N A30340 - A30343 FELIX RESOURCES. Diagram image and parts list.
