AFE57-AM 830E-1AC S/N A30162, A30163, A30165 - A30167, A30170 - A30173 MACARTHUR

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EM0005	RADIO MODULE (SEE INDEX) (1)	1	55869
?	EM4309	WARNING LIGHTS MODULE (SEE INDEX) (1)	1	61223
?	EL1086	AIR FILTER RESTRICTOR GAUGE MODULE (SEE INDEX) (1)	1	55669
?	PC0251	SONALARM, SIGNAL	1
?	SM5122	BRACKET	1
?	WA3367	NUT ASSEMBLY	10
?	PC0724	SPEAKER STRUCTURE	2
?	MM0207	LOCKWASHER - M6	18
?	MM0176	NUT - M6 X 1.00	18
?	SM2682	SCREW, COUNTER SUNK	3
?	EL1054	DASH, OVERHEAD	1
?	EK9228	MODULE, DIMMER CONTROL	1
?	31127R1	CAPSCREW - M6 X 12	6
?	DL4172	SLEEVE, INSULATING	4
?	SF9896	KNIFE, DISCONNECT - 14-16 AWG	4
?	PB4767	RELAY	1
?	PB9056	FITTING, COMPRESSION - FEMALE	2
?	TM4777	TUBE, NYLON	2
?	EL3810	SHEET	1
?	EK2766	PLATE	1
?	PB8658	SCREW, PANEL - M6 X 1.00 X 30	12
?	EL7679	BRACKET	1
?	PB9957	CABLE ANTENNA EXTENSION	1
?	VY2784	GROMMET	1
?	EJ7875	ADAPTER, CABLE RADIO ANTENNA	1
?	VZ4843	TIE, CABLE	4
?	TA0602	FITTING, NYLON	2
?	TA0603	FITTING, NYLON	2
?	PB9051	FITTING, SINGLE BARB W/FILTER	2
?	WB1301	CLAMP, CUSHIONED - 1/4"	1
?	WB1302	CLAMP, CUSHIONED - 5/16"	1
?	MM0036	CAPSCREW - M10 X 1.50 X 20	1
?	MM0719	NUT - M10 X 1.50	1
?	MM0461	FLAT WASHER - M10	1
?	EM0177	HARNESS, SPEAKERS	1
?		NOTE: (1) NOT SOLD AS AN ASSEMBLY.	-1
?		ORDER INDIVIDUAL PARTS.	-1

Komatsu AFE57-AM 830E-1AC S/N A30162, A30163, A30165 - A30167, A30170 - A30173 MACARTHUR parts catalog PDF

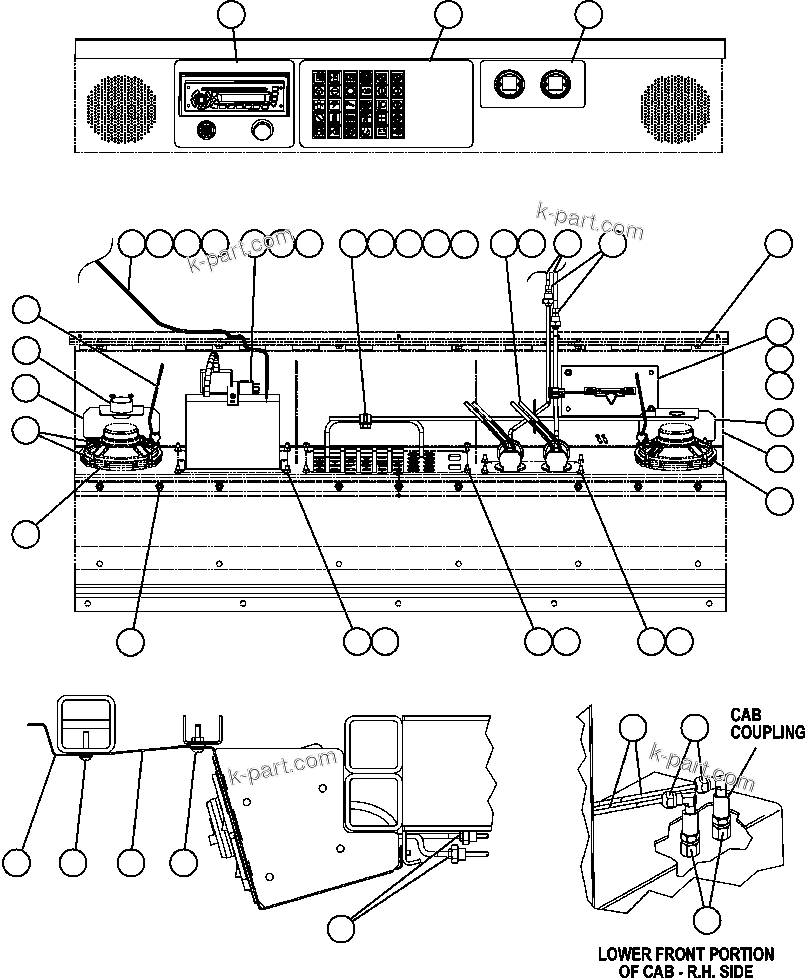

OVERHEAD DASH MODULE (42109) in AFE57-AM 830E-1AC S/N A30162, A30163, A30165 - A30167, A30170 - A30173 MACARTHUR. Diagram image and parts list.
