AFE57-AA 830E-AC S/N A30106 - A30108 ELK VALLEY COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	GE1302	PANEL, ICP (SEE INDEX)	1	64307
?	GE0176	SWITCH, TOGGLE	1
?	GE0174	SWITCH, TOGGLE	2
?	GE0177	BOARD, PRINTED WIRE	1
?	XA3129	CAP, LENS	1
?	XA3130	ADAPTER	1
?	VE4655	FLAT WASHER - #10	-1
?	VS6662	FLAT WASHER - #10	-1
?	VE4601	LOCKWASHER - #10	-1
?	SF2755	NUT - #10 - 32NF	-1
?	PB3606	SPACER	-1
?	GE1381	FLAT WASHER - 5/16"	-1
?	VE4696	LOCKWASHER - 5/16"	-1
?	GE1386	MACHINE SCREW - #10 - 32NC X 1 5/8"	2
?	BF4222	CAPSCREW - 5/16" - 18NC X 3"	4
?	DC3584	LOCKWASHER - 1/4"	-1
?	VE7202	WASHER - 1/4" (SPECIAL)	4
?	VE5882	CAPSCREW - 1/4" - 20NC X 7/8"	6
?	VS6690	BOARD, TERMINAL	1
?	GE1257	CONVERTER, GATE DRIVER	2
?	VE7355	MODULE, DIODE	1
?	VG7043	RELAY - CPR & GFR (SEE INDEX)	1	64037
?	BF4452	MODULE, SUPPRESSION	1
?	GE0240	GROMMET	1
?	VE4687	LOCKWASHER - 3/8"	-1
?	TC1233	NUT - 3/8" - 16NC	-1
?	GE0759	FLAT WASHER - 3/8" (HARDENED)	2
?	VE4641	CAPSCREW - 3/8" - 16NC X 1 1/4"	-1
?	GE0858	PANEL, A.F.S.E. (SEE INDEX)	1	64228
?	GE1417	RESISTOR	1
?	GE0870	RESISTOR PANEL	1
?	XA3142	SENSOR, PRESSURE	1
?	XA3724	GROMMET	1
?	GE0510	DIODE ASSEMBLY	1
?	TD1549	NUT - 1/4" - 20NC	-1
?	VE7237	CAPSCREW - 1/4" - 20NC	6
?		(FOR VIEWS B-B & C-C, SEE THE FOLLOWING PAGE.)	-1

Komatsu AFE57-AA 830E-AC S/N A30106 - A30108 ELK VALLEY COAL parts catalog PDF

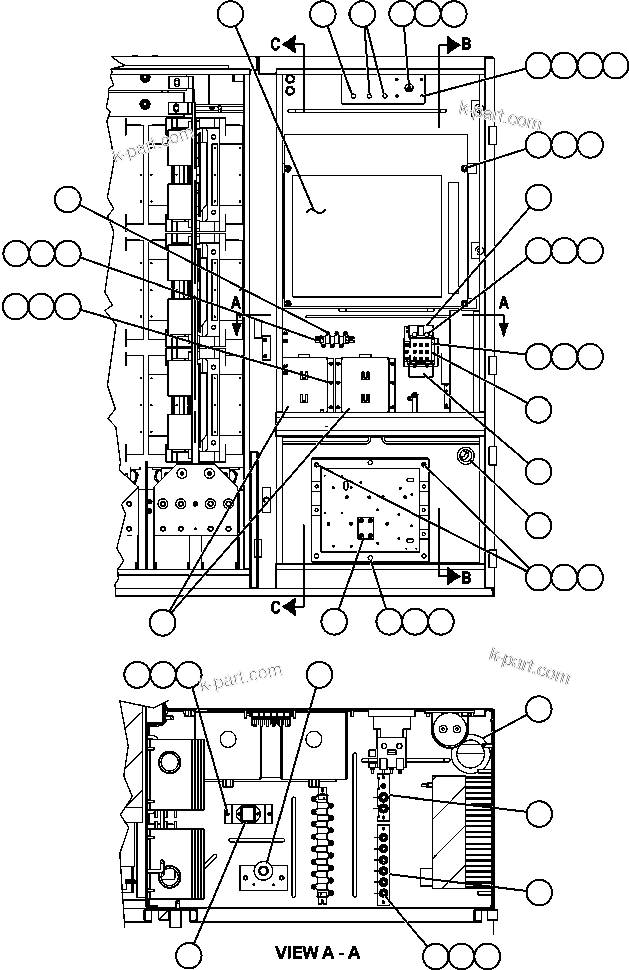

CONTROL CABINET - LEFT COMPARTMENT (PC2226) (64312) in AFE57-AA 830E-AC S/N A30106 - A30108 ELK VALLEY COAL. Diagram image and parts list.
