AFE57-AA 830E-AC S/N A30106 - A30108 ELK VALLEY COAL

1 2 3 4 6 5 7 5 5 8 9 5 5 15 5 14 5 13 5 12 18 5 19 5 20 5 21 5 24 5 25 5 26 5 27 5 30 5 31 5 5 5 32 33 34 35 5 5 5 5 29 28 5 5 5 23 22 16 5 17 5 11 5 10

#	Part Number	Partname	Quantity
1	SM2712	PLATE, WARNING LIGHT	1
2	EL4144	LEXAN OVERLAY	1
3	EL2223	HARNESS, WARNING LIGHT	1
4	EL2225	SOCKET, WARNING LIGHT	1
5	SM4443	FLASHER ASSEMBLY - CLEAR LENS	30
5	VL6234	BULB	30
6	SM4473	DECAL, CYLINDER OIL TEMPERATURE	2
7	SM5083	DECAL, CYLINDER OIL LEVEL	1
8	SM5052	DECAL, PARKING BRAKE	1
9	EJ8283	DECAL, CRANK MOTOR FAILURE	1
10	SM5103	DECAL, NO POWER (PROPULSION SYSTEM)	1
11	SM5102	DECAL, NO PROPULSION	1
12	SM5065	DECAL, STEERING SYSTEM PRESSURE	1
13	EG3303	DECAL, LOW LUBE PRESSURE	1
14	SM5056	DECAL, BRAKE	1
15	SM4470	DECAL, BACKUP LIGHTS	1
16	SM5099	DECAL, PROPULSION SYSTEM WARNING	1
17	SM5106	DECAL, PROPULSION SYSTEM REST	1
18	SM5053	DECAL, ACCUMULATOR PRE-CHARGE PRESSURE	1
19	SM5089	DECAL, CIRCUIT BREAKER TRIPPED	1
20	SM5075	DECAL, BODY-UP	1
21	SM5072	DECAL, 5 MINUTE ENGINE SHUTDOWN TIMER	1
22	SM5098	DECAL, PROPULSION SYSTEM TEMPERATURE	1
23	SM5105	DECAL, PROPULSION SYSTEM NOT READY	1
24	SM4315	DECAL, NOT USED	1
25	SM5084	DECAL, CYLINDER OIL FILTER	1
26	SM5070	DECAL, RETARDER	1
27	SM5071	DECAL, RETARDER SPEED CONTROL	1
28	EM0008	DECAL, IM WARNING	1
29	SM5097	DECAL, REDUCED PROPULSION	1
30	SM5057	DECAL, LOW BRAKE OIL PRESSURE	1
31	SM5078	DECAL, LOW FUEL LEVEL	1
32	SM5063	DECAL, ENGINE SHUTDOWN	1
33	SM5076	DECAL, CHECK ENGINE	1
34	SM5058	DECAL, BATTERY CHARGE	1
35	SM5101	DECAL, RETARD AT CONTINUOUS LEVEL	1
NS\|37		NOTE: MODULE NOT SERVICED AS AN ASSEMBLY.	-1
NS\|38		ORDER INDIVIDUAL COMPONENT PARTS.	-1

Komatsu AFE57-AA 830E-AC S/N A30106 - A30108 ELK VALLEY COAL parts catalog PDF

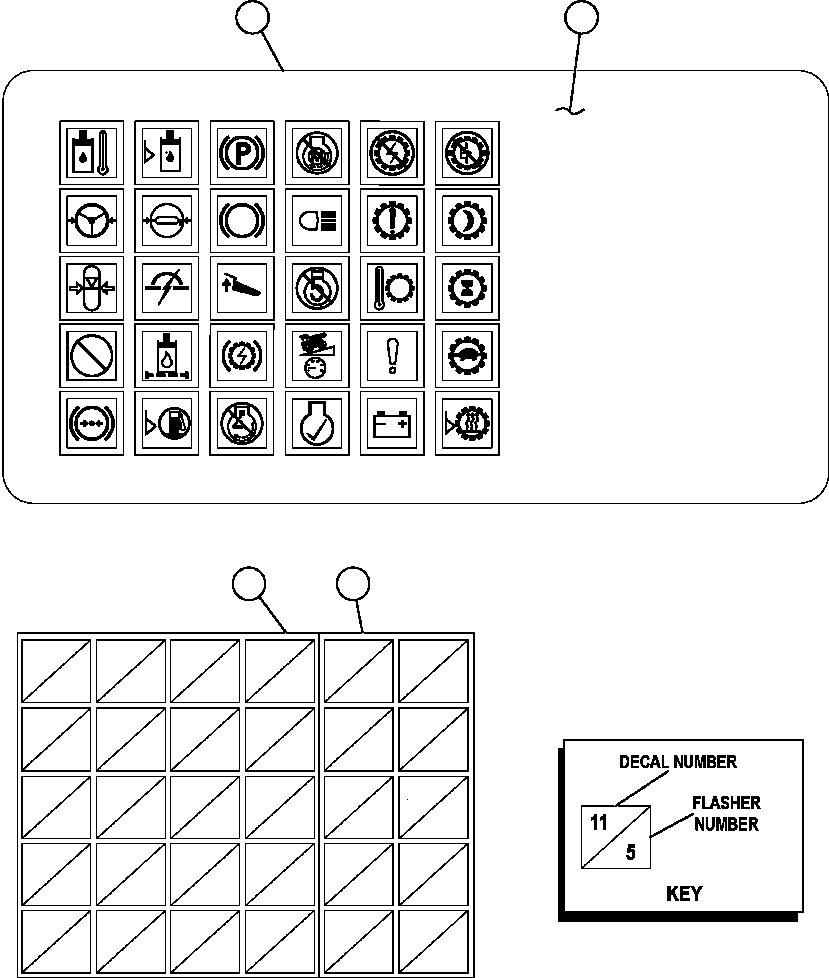

WARNING LIGHTS MODULE (EL4143) (60920) in AFE57-AA 830E-AC S/N A30106 - A30108 ELK VALLEY COAL. Diagram image and parts list.
