AFE57-CX 830E-1AC S/N A30505 - A30506 HIBBING TACONITE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VS7980	GUARD, VALVE	1
?	VE3881	STEM, VALVE	1
?	VE3880	DYNASEAL (1)	1
?	VS7979	NUT	1
?		BLADDER AND GAS VALVE ASSEMBLY (1)/(3)	1
?	VE3897	RING, ANTI-EXTRUSION (2)	1
?	VE3882	PLUG AND POPPET ASSEMBLY	1
?	VE3893	SPRING	1
?	VE3896	PLUG, BLEED	1
?	VE3901	O-RING	1
?	VE3895	NUT, STOP	1
?	VE3883	PLUG, MACHINED	1
?	VE3894	PISTON	1
?	VE3892	POPPET	1
?	VS7976	SPACER (2)	1
?	VS7977	LOCKNUT (2)	1
?	VE3900	RING, BACKUP (1)/(2)	1
?	VE3899	O-RING (1)/(2)	1
?	VE3898	WASHER (1)/(2)	1
?		SHELL (3)	1
?	VE3059	NOTE: (1) INCLUDED IN VE3059 REPAIR KIT.	-1
?		(2) INCLUDED IN VE3057 PORT ASSEMBLY.	-1
?		(3) NOT SERVICED SEPARATELY.	-1

Komatsu AFE57-CX 830E-1AC S/N A30505 - A30506 HIBBING TACONITE parts catalog PDF

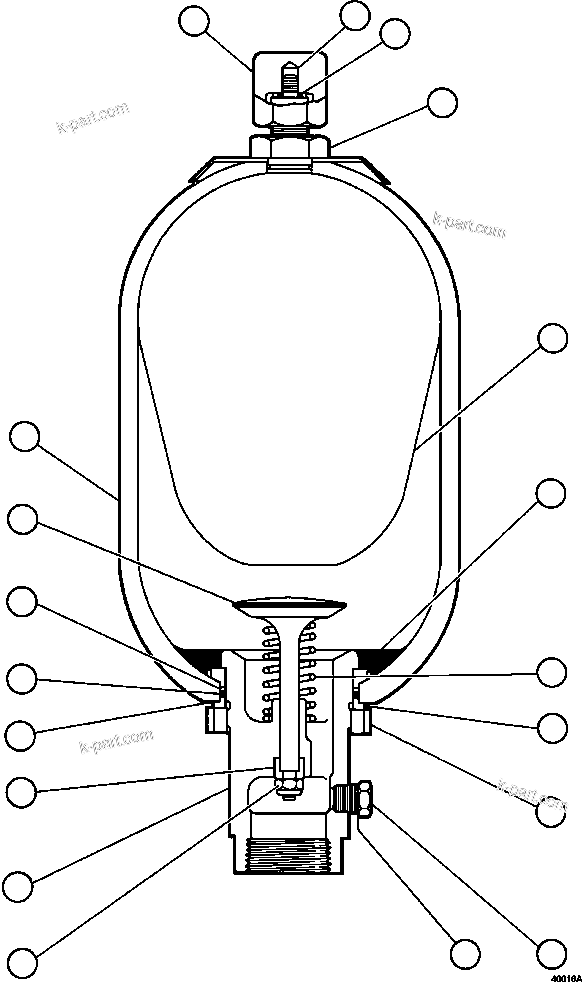

ACCUMULATOR ASSEMBLY (2.5 GAL) (PB7058) (40016A) in AFE57-CX 830E-1AC S/N A30505 - A30506 HIBBING TACONITE. Diagram image and parts list.
