AFE57-HT 830E-1AC S/N A40966, A40987 & A40990 - A40992 SEVERSTAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	XA2014	TUBE	1
?	VE1797	FITTING, CONNECTOR	4
?	VE1796	FITTING, ELBOW	1
?	XA2015	TUBE	1
?	XA4337	PLUG	3
?	VE1793	BLEEDER	4
?	XA1993	HOUSING	1
?	XA2009	LINING	2
?	VE6738	SEAL, DUST (1)	4
?	VE2192	RING, BACKUP (1)/(2)	4
?	XA4085	O-RING (1)	4
?	XA4086	PISTON ASSEMBLY	4
?	XA1997	PISTON	1
?	XA4114	GUIDE	1
?	XA4115	ADJUSTER ASSEMBLY	2
?	XA1998	PIN	1
?	VJ7234	GUIDE, SPRING	1
?	XA1999	SPRING	1
?	VJ7235	RING, RETAINER	1
?	XA4116	RING, SPECIAL	1
?	XA4117	RING, LOCK	1
?	VJ7238	WASHER	1
?	XA4113	O-RING (1)	1
?	XA2008	BOOT (1)	2
?	XA2007	BOLT, ADJUSTING (PARK PISTON)	2
?	XA2011	SPRING	2
?	XA2010	SCREW, SPECIAL	2
?	XA2006	RING, SNAP	2
?	XA1994	HOUSING	1
?	VE7829	LOCKWASHER	4
?	VJ0106	LOCKNUT	4
?	XA2003	SPRING, BELLEVILLE	8
?	XA5089	CAP, PARK PISTON	2
?	XA2012	PLUG, PIPE	2
?	XA4266	PISTON	2
?	XA2001	RING, BACKUP (1)	2
?	XA5545	O-RING (1)	2
?	TR6102	SCREW, BLEEDER	4
?	VE1795	FITTING, TEE	1
?	VE9238	CAPSCREW - 3/4" - 16NF X 2"	12
?	VS5265	END PLATE - RH	2
?	VE5736	O-RING (1)	2
?	VE5734	RING, BACKUP (1)	2
?	XA2005	COLLAR, ADJUSTING	2
?	VS5264	END PLATE - LH	2
?	XA2016	NOTE: (1) INCLUDED IN XA2016 SEAL KIT.	-1
?		(2) NOT SERVICED SEPARATELY.	-1

Komatsu AFE57-HT 830E-1AC S/N A40966, A40987 & A40990 - A40992 SEVERSTAL parts catalog PDF

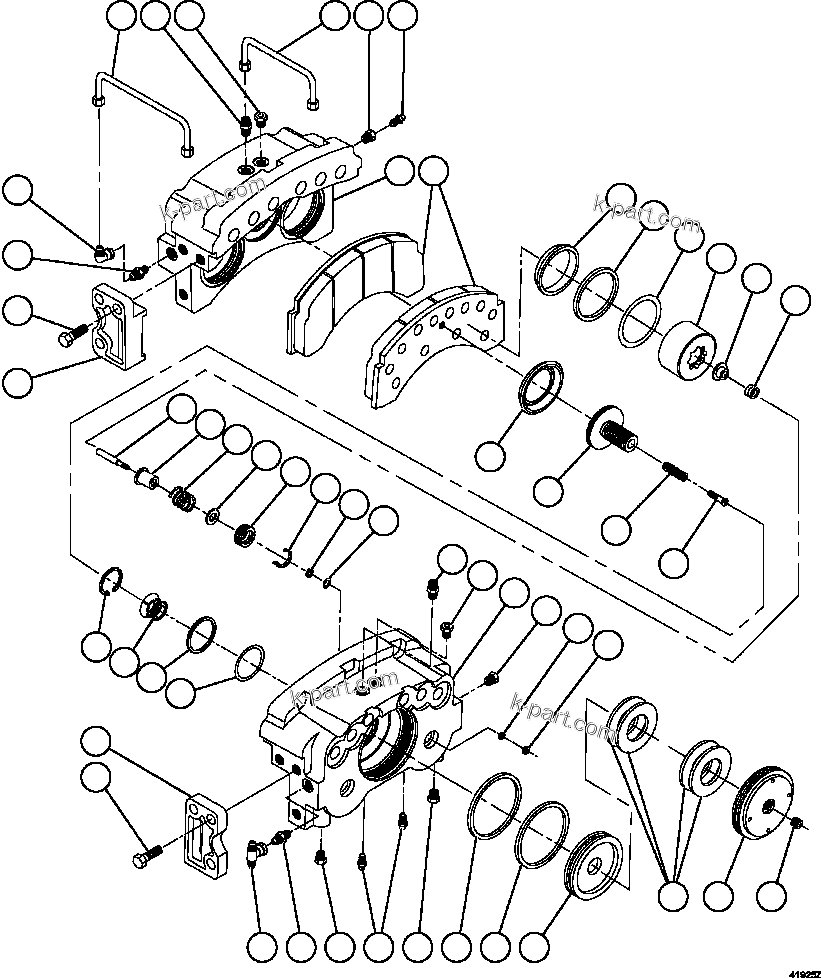

REAR DISC BRAKE ASSEMBLY PC2823 (41947) in AFE57-HT 830E-1AC S/N A40966, A40987 & A40990 - A40992 SEVERSTAL. Diagram image and parts list.
